| Prod Model: |

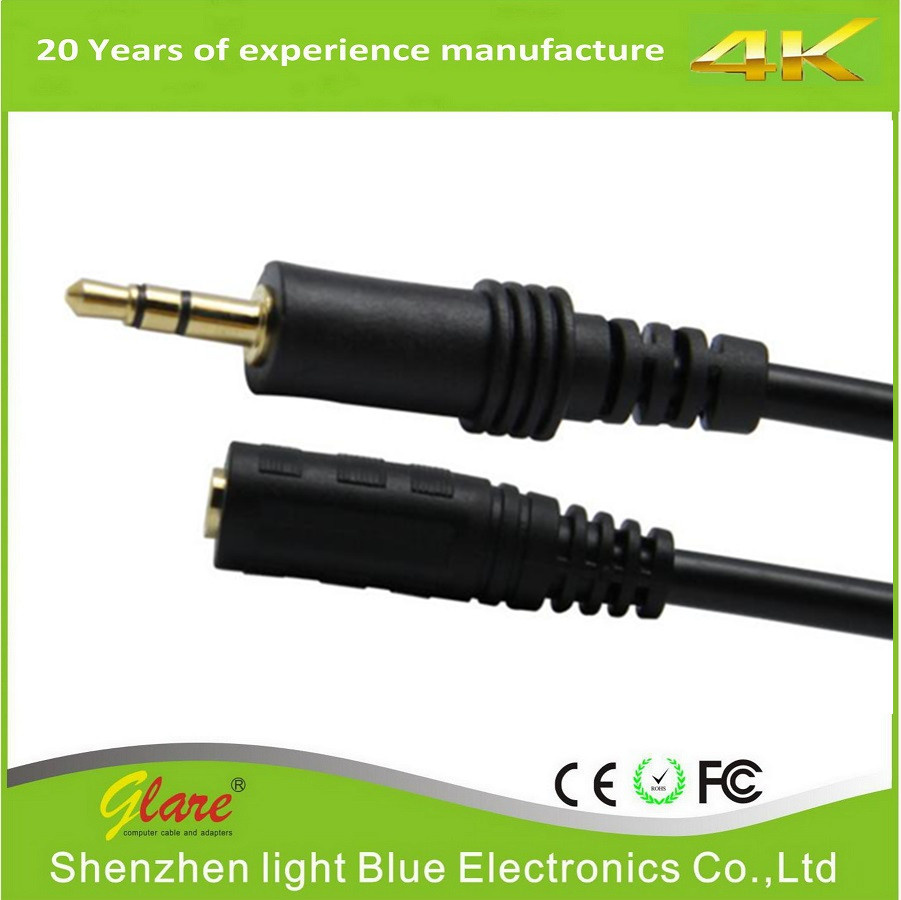

3.5MM Audio Cable |
| Cable Use For: |
iPhone |
| Cable Conductor: |
28AWG Bare Copper |
| Cable Material: |
PVC and Copper |
| Cable Length: |
as Customer's Request |
| Cable Color: |
Black, Blue Color |
| Cable Warranty: |
12 Months |
| Cable Packing: |
Poly Bag, Blister, Gift Box |
| Cable Certification: |
Ce, RoHS |
| Application: |
Game Player |
| Color: |
Black |
| Connector: |
RCA |
| Certification: |
CCC |
| Type: |
USB |
| Brand: |
Lbcable |
Product Description
A TRS connector (tip, ring, sleeve) is a common family of connector typically used for analog signals including audio. It is cylindrical in shape, typically with three contacts, although sometimes with two (a TS connector) or four (a TRRS connector). It is also termed an audio jack, phone jack, phone plug, and jack plug. Specific models are termed stereo plug, mini-jack, mini-stereo, headphone jack, tiny telephone connector and bantam plug.
The TRS connector was invented for use in telephone switchboards in the 20th century and is still widely used, both in its original 1/4 in (exactly 6.35 mm) size and in miniaturized versions: 3.5 mm (approx.1/8 in) and 2.5 mm (approx. 3/32 in). The connector's name is an initialism derived from the names of three conducting parts of the plug: Tip, Ring, and Sleeve - hence, TRS.
Electrical Specifications
| 1.100% open & short test; |
| 2.Hi-Pot: DC 300V 10ms; |
| 3.Insulation Resistance: 10M OHM /300V Min; |
| 4.Contact Resistance: 0.01 OHM Max; |
| 5.Shield upon 95% braid; |
| 6.Working Temperature: -25oC ~ +85oC. |
Mechanical:
| Over mold: | PVC 80Pa ,UL94V-0 Black or white; |
| Pre mold: | PE Low Density; |
| Contact: | Copper Alloy; |
| Insertion Force: | 35 N Max; |
| Withdraw Force: | 10 N Min. |
Company information
Shenzhen Light Blue Electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include HDMI cable, USB3.0/2.0 cable, VGA CABLE,MHL Cable, (DP)Displayport Cable, SATA cable, Network Lan Cat cable, AV cable, Coaxial cable,DVI cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, Chargers, Earphone cable, which all attained "CE", "UL", "FCC" and "RoHS", "ATC", ISO9001:2008, ISO14001:2004 certificates, and they have been sold to America, England, Mexico, Germany, Chile, Greece, Australia and European countries. We guarantee each product will be Full-checked 100%. If there are bad products, we will promptly pay compensation to customers without any charge.
FAQ
With years of export experience along with excellent quality, advanced services and competitive prices, YITAILI has won numerous customers' trust and support.More detail please contact us.
Payment term?
(1)Payment:T/T only,30%deposit,the balance before delivery.
(2)Production leading time:10-15days,see qty to confirm.
(3)Shipping out:Guangzhou or Shenzhen
Shenzhen Light Blue Electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include HDMI cable, USB3.0/2.0 cable, VGA CABLE, MHL Cable, (DP)Displayport Cable, SATA cable, Network LAN Cat cable, AV cable, Coaxial cable, DVI cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, Chargers, , which all attained "CE", "UL", "FCC" and "RoHS", "ATC", ISO9001: 2008, ISO14001: 2004 certificates, and they have been sold to America, England, Mexico, Germany, Chile, Greece, Australia and European countries. We guarantee each product will be Full-checked 100%. If there are bad products, we will promptly pay compensation to customers without any charge
Our factory With strong technical capabilities, complete set of equipment and facilities, advanced technology and perfect testing and inspecting measures, we specialize in designing, developing, manufacturing and marketing connection cables which are applied to all kinds of computer, network, communication, car, medical resource, remote monitoring and household appliances. We can also undertake OEM orders of processing various special fiber optic cables. Our products sell well in domestic and foreign market and are widely used by many famous corporations.
We have set up a functional modern business management system and carried out ISO9001: 2000 quality management system for many years. We are authorized with independent import and export rights. Our products have obtained many product safety certificates including CCC (China) and UL (USA).
We will try our best to satisfy customers' requests. We sincerely welcome all clients to cooperate with us hand in hand for a wonderful future!
