| Prod Model: |
GPS104B |
| Certificate: |
Ce, FCC |
| Feature: |
Remote Engine Cut off |
| Manufacturer Or Not: |
Yes |
| Network: |
GSM/GPRS |
| Tracking System: |
Platform & APP |
| Warranty Time: |
1 Year |
| Weight: |
0.88kg |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Carrier Frequency: |
Dual-Frequency |
| Model: |
GPS104b |
| Screen Size: |
No Screen |
| Chip: |
Ns1315 |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description
Truck container gps car tracker 104B with Large battery capacity live tracking on free tracking software
1. Description
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2, Applications:
Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
3. Main Functions

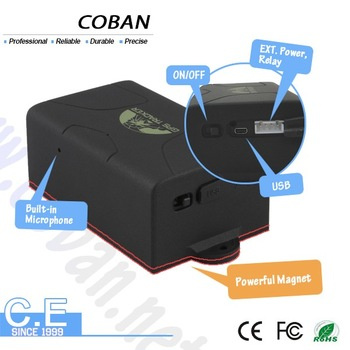

1. Waterproof shell
2. Built-in large capacity 6000MA battery, long standby time of 60 days.
3. Powerful magnets to absorb to vehicle firmly.
4. Real-time tracking, retrieve of lost vehicles, cargo.
5. Geo fence, movement, over speed, low battery alert
Shock sensor alarm, SOS emergency alarm
6. get absolute address
7. Built-in high sensitivity GPS and GSM antenna
8. Support for external GSM antenna, GPS antenna,
9. track by timing and frequency
10. Remote Engine-stop and Resume.
4. Specification
Content | specifications |
DIM. | 94mm*60mm*38mm |
Weight | 300g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS sensitivity | -159dBm |
GPS Accuracy | 5m |
GPS Start time | Cold status | 45s |
Hot status | 1s |
EXT. power | DC 12 V -24V |
Operating Current | Sleep Current | 1.8mA |
Deep sleep | 0.6mA |
GSM operating Current | 68mA±3mA |
GPRS Current(data transfer) | 82mA±10mA |
Battery | 3.7V 6000mA/h Polymer battery |
Charge current | 1A±0.2A |
Charge time | 7h |
Standby time | Sleep | 4 months |
Deep sleep | 12 months |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +70°C |
Humidity | 5%--95% non-condensing |

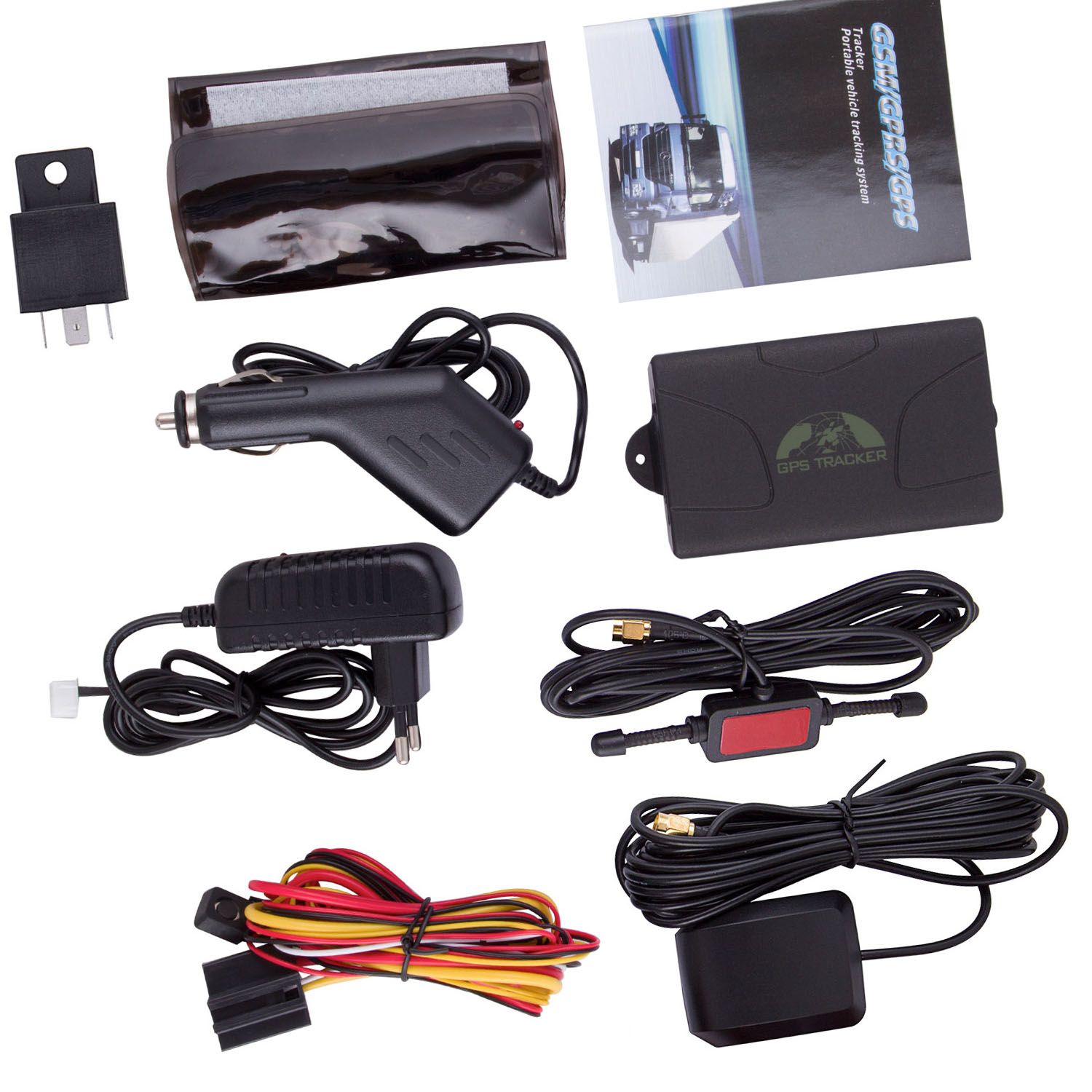

5. Package details
1 * GPS tracker
1 * AC adapter (US plug)
1 * Light car adapter
1 * GSM antenna (2meters)
1 * GPS antenna (2 meters)
1 * Relay (12V/40A to 24V/40A according to vehicles)
1 * Harness (4 Pin)
1 * Waterproof bag
1 * User manual

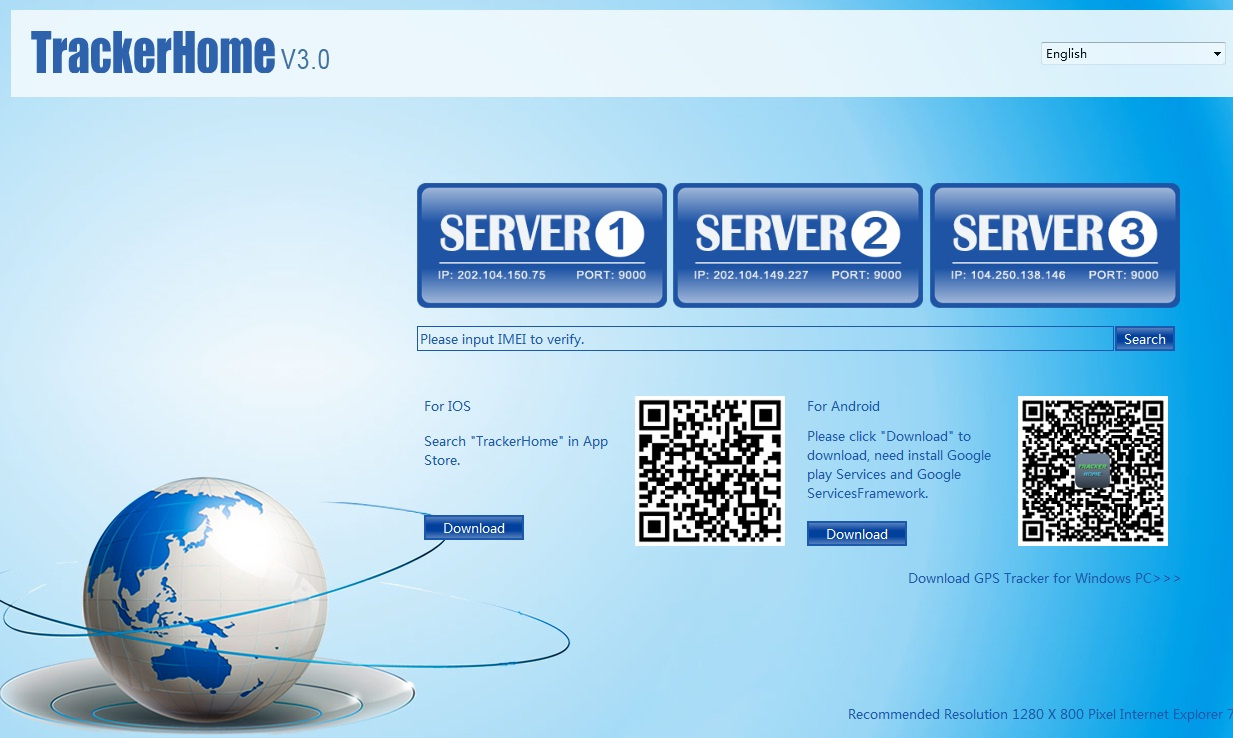

6, Web Platform Tracking:
7, Andriod and IOS Apps for GPS trackers:
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
