| Prod Model: |
Magnetic GPS Tracker 104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Global Compatibility: |
850/900/1800/1900 MHz |
| High Sensitivity GPS And GSM Antennas: |
Can Be Used Without Any Additional Antenna |
| Map: |
Realtime Google Maps |
| Battery: |
6000mAh Battery, 60 Days Long Standby |
| Network: |
GSM/GPRS |
| Item Size: |
94mm*60mm*38mm |
| Weight: |
300g |
| Warranty Time: |
1 Year |
| Feature: |
Long Battery Life |
| Function: |
Vehicle / Cargo / Container GPS Tracker |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS GPRS GSM Tracking |
| Port Number: |
20 |
| Model: |
104 |
| Screen Size: |
No |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description
Truck GPS Tracker Tk104 car alarm tracking system with engine cut off tracking device

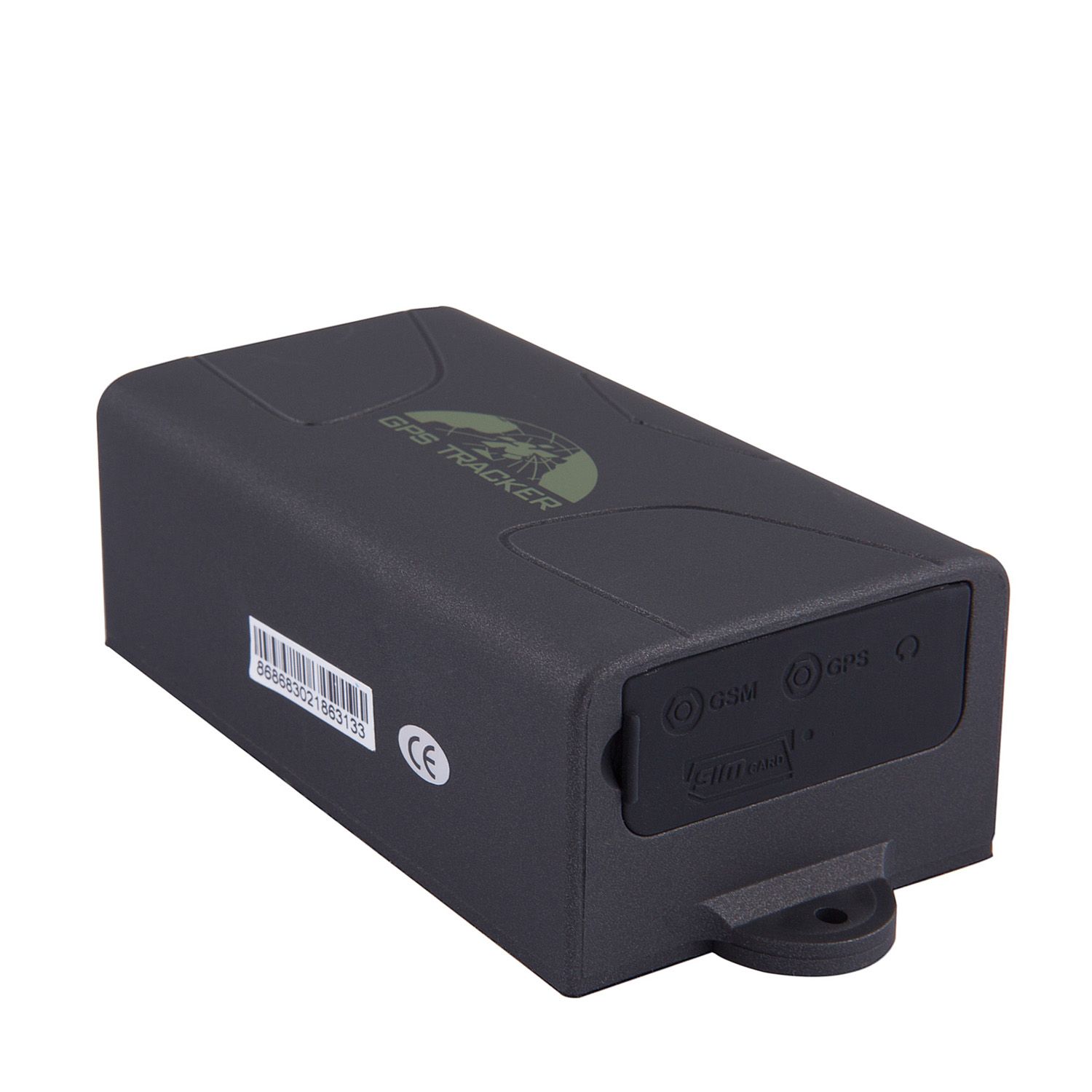

1. Description
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2, Applications:
Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
3. Main Functions
1. Waterproof shell
2. Built-in large capacity 6000MA battery, long standby time of 60 days.
3. Powerful magnets to absorb to vehicle firmly.
4. Real-time tracking, retrieve of lost vehicles, cargo.
5. Geo fence, movement, over speed, low battery alert
Shock sensor alarm, SOS emergency alarm
6. get absolute address
7. Built-in high sensitivity GPS and GSM antenna
8. Support for external GSM antenna, GPS antenna,
9. track by timing and frequency
10. Remote Engine-stop and Resume.
4. Specification
Content | specifications |
DIM. | 94mm*60mm*38mm |
Weight | 300g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS sensitivity | -159dBm |
GPS Accuracy | 5m |
GPS Start time | Cold status | 45s |
Hot status | 1s |
EXT. power | DC 12 V -24V |
Operating Current | Sleep Current | 1.8mA |
Deep sleep | 0.6mA |
GSM operating Current | 68mA±3mA |
GPRS Current(data transfer) | 82mA±10mA |
Battery | 3.7V 6000mA/h Polymer battery |
Charge current | 1A±0.2A |
Charge time | 7h |
Standby time | Sleep | 4 months |
Deep sleep | 12 months |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +70°C |
Humidity | 5%--95% non-condensing |

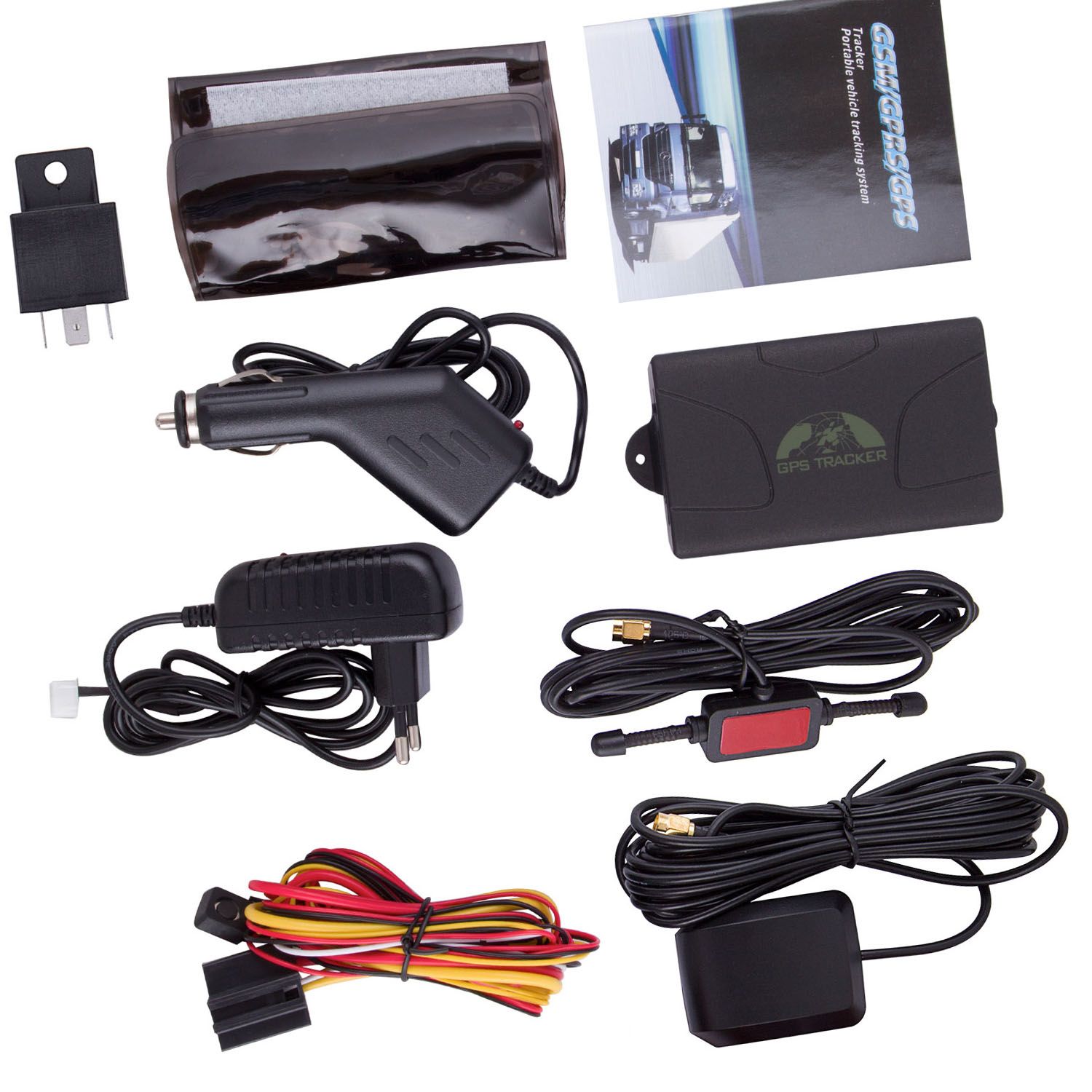

5. Package details
1 * GPS tracker
1 * AC adapter (US plug)
1 * Light car adapter
1 * GSM antenna (2meters)
1 * GPS antenna (2 meters)
1 * Relay (12V/40A to 24V/40A according to vehicles)
1 * Harness (4 Pin)
1 * Waterproof bag
1 * User manual

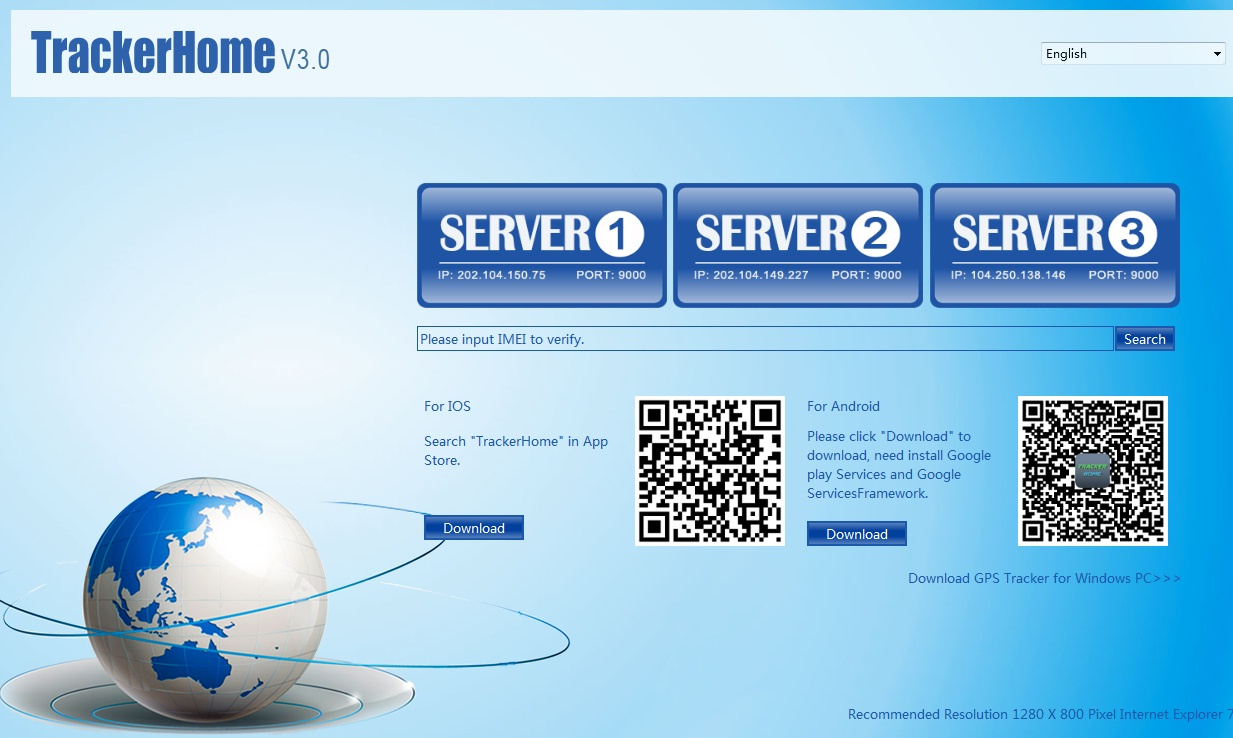

6, Web Platform Tracking:

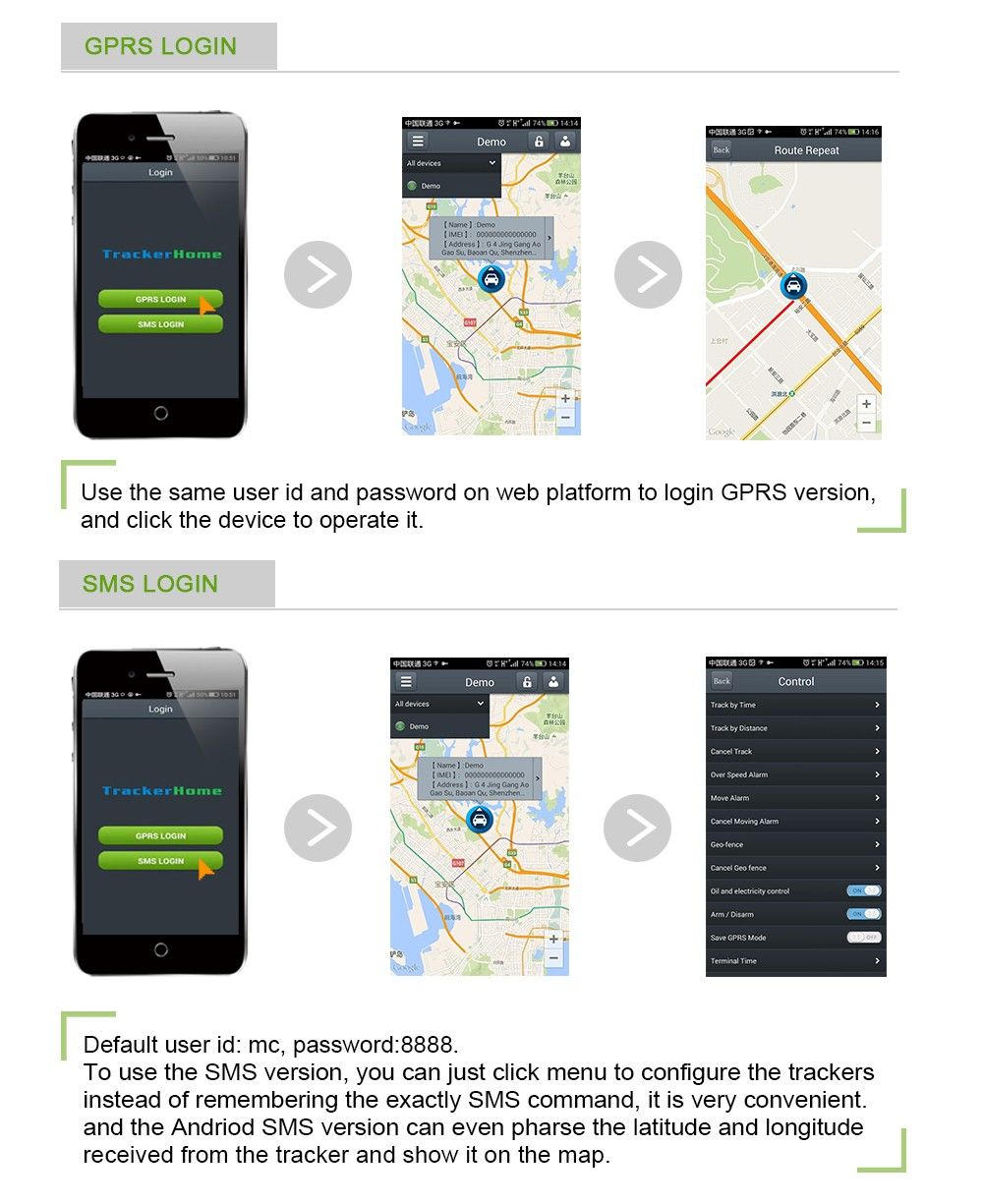

7, Andriod and IOS Apps for GPS trackers:
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
