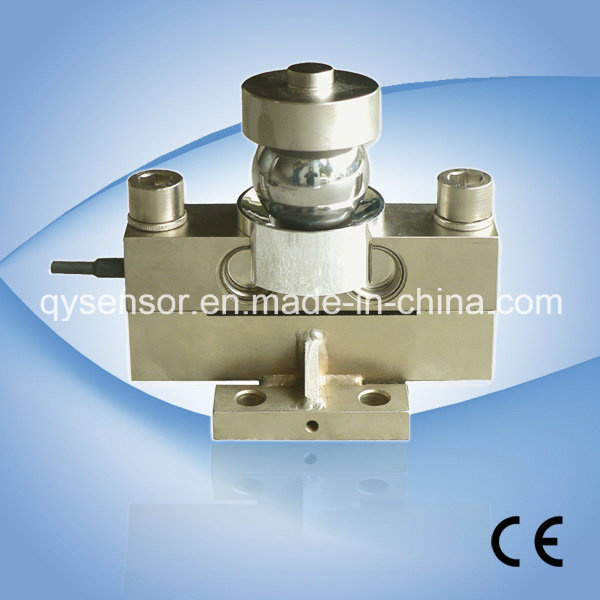

Truck Load Cells 10t for Weighing System

Name: Truck Load Cells 10t for Weighing System
Brand: all-electronics-online.com
SKU: 783193145
Availability: InStock
Rating: 4.9 (137 reviews)

Price:	US $ 80-92/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-43A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	10~50t
Accuracy:	0.02%Fs
Rated Output:	2.0mv/V
Certificate:	CE
Operating Temperature:	-20~60 Dge C
Cable Length:	10 Meters
Prodcut Name:	Truck Load Cells 10t for Weighing System

Product Description

QH-43A load cells are available in the capacities from10t to 50t,
Alloy steel construction with double shear beam type,
Silicon adhesive sealed inside, waterproof and anti-corrosion, suitable for multiform environments
Integral structure and easy installation.
Suitable for electronic truck scales, railway scales and other electronic weighing devices.

Features:
Capacity: 10t of 50t
Defend grade:IP66 & IP68
High accuracy.
Alloy steel construction
Integral structure, reliable performance and easy installation.

Specifications:
capacity	t	10,20,30,40,50
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	2.0(3.0) ± 0.01
excitation voltage	Vdc	10 ~ 15
combined error	%FS	± 0.02
zero unbalance	%FS	± 2
non-linearity	%FS	± 0.02
hysteresis	%FS	± 0.02
repeatability	%FS	± 0.01
creep	%FS/30min	± 0.02
input resistance	Ω	780 ± 10
output resistance	Ω	700 ± 5
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	ºC	-20 ~ +60
compensated temperature range	ºC	-10 ~ +50
temperature coefficient of SPAN	%FS/10ºC	± 0.02
temperature coefficient of ZERO	%FS/10ºC	± 0.03

Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:10 m
Cable diameter :5 ±0.2 mm
The cable length could be chose by customer's application.

Please contact me for more details:

Chloe Shu
Sales Engineer

TEL: +86-916-2257989
MOB: +86 15336190378

http://www.qysensor.com
https://cn.linkedin.com/pub/chloe-shu/74/445/964

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
