Truck Scale

Prod Model:	SCS 20~200Ton
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Flange Type:	Level Transmitter

Product Description

Digital Truck Scale

This digital truck scale has a steel-structured platform, a high-precision sensor and an intelligent weighing display instrument. Its digital sensor can prevent the weighing data to be artificially stimulated and therefore ensure the data's authenticity. Besides, digital transmission enhances anti-jamming. In a word, this is a scale with high accuracy and long-term stability, and a scale easy to install and maintain.
This electronic truck scale is widely used in ports, warehousing, factories and freight yard, where its superior performances and stability and reliability in long-term use are well proved. It can not only raise the import and export goods trade settlment efficiency of the industrial and mining enterprises, but it is also deeply applied in monitoring the production process and managing the integrated data system. It can meet the modern weighing requirements as well as the customers' requirements in networking.

Technical parameters

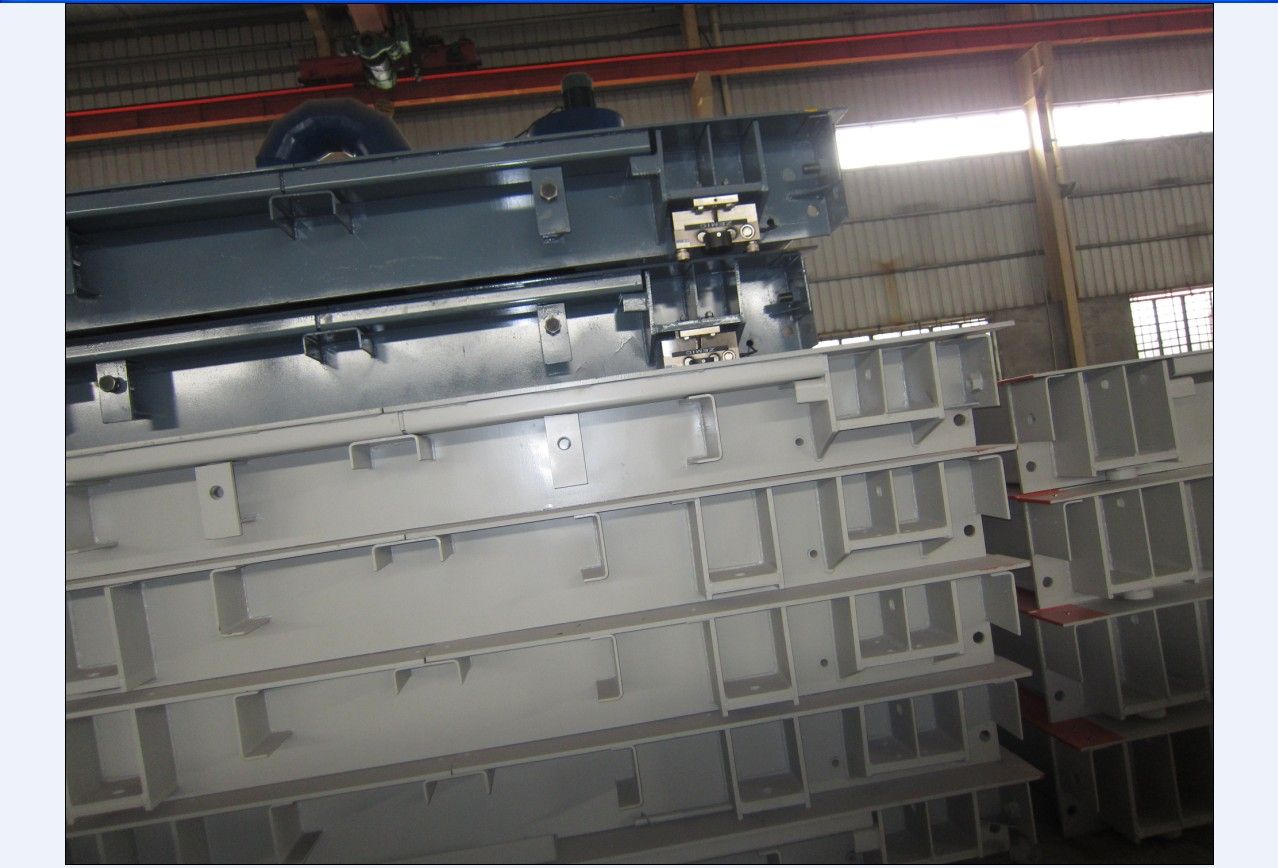

1. Platform specifications: Module-structured platform which can be designed according to the users' requirements;
2. Weighing capacity: 30-150t;
3. Measuring method: To measure the vehicle 4 seconds after it fully stops on the platform (static measurement);
4. Accuracy: OIML III level accuracy;
5. Output: The data can be displayed on the monitor, printed, stored on disk, and transmitted in data networking. This truck scale has powerful data managing capacities and can handle the data separately according to the year, month, day or working shift.
6. Data transmission is carried out through RS485 standard interface and the digital sensor. The maximum transmission distance is 12oo meters. Eccentric load can be adjusted manually or automatically (corner adjustment).
7. The junction box is made of stainless steel so that it is damp-proof and anti-corrosive.
8. Power supply: 220V, 50Hz;
9. The sensor's working temperature: -30 degree celsius ~ +70 degree celsius
