| Prod Model: |
View Star Series 10-30Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sample Lead Time: |
15days |
| Transfer Time: |
0 |
| Work Model: |
UPS,EPS,Eco |
| Output Voltage: |
380V-415V |
| Output PF: |
0.8 |
| Double Conversion: |
Yes |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

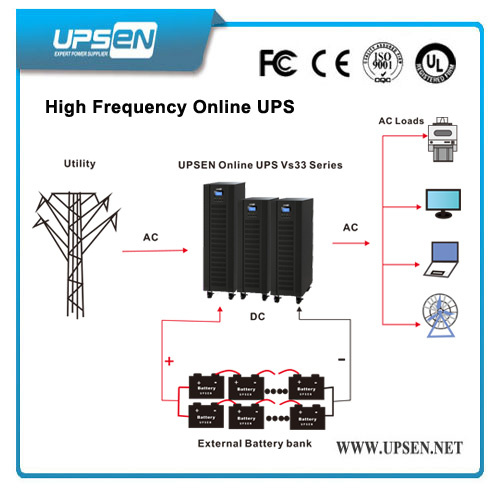

True double-conversion on line UPS with long backup time
Key Features
1:Generator compatible
2:True double-conversion on line UPS
3:50Hz/60Hz frequency converter mode
4:SNMP/USB/RS-232 communications
5:Fully digitized microprocessor control
6:Programmable power management outlets
7:DSP technology guarantees high performance
8:Power Factor Correction Achieve input PF 0.99
9:Adjustable charging current via LCD or software
10:Adjustable battery number from 16 pcs to 20 pcs
11:Standard backup UPS and long backup UPS in one integrated unit
12:3-stage extendable charging design for optimized battery performance
13:Set the work mode on the display directly, UPS mode, ECO mode, EPS mode
14:Touch screen display, with the simple operation and Intuitive data, optional display language and logo
15:IGBT based , high frequency rectifier and inverter design to achieve up to 93%-94% efficiency (Mains mode and battery mode),and low input current THD(>3%)
Technical Specification
| VIEW STAR SERIES ONLINE UPS SELECTION GUIDE |
| MODEL | VS31 10K (L) | VS31 15K (L) | VS31 20K (L) | VS31 30K (L) |
| PHASE | 3 phase in / 1 phase out |
| CAPACITY | 10000 VA / 8000 W | 15000 VA/12000 W | 20000 VA/16000 W | 30000VA/24000W |
| INPUT | | |
| Nominal Voltage | 3 x 400 VAC (3Ph+N) |
| Voltage Range | 305-478 VAC (3-phase) @ 100% load
190-520 VAC (3-phase) @ 50% load |
| Frequency Range | 46~54 Hz or 56~64Hz |
| Power Factor | >= 0.99 @ 100% load |
| OUTPUT |
| Output Voltage | 208/220/230/240VAC |
| AC Voltage Regulation (Batt. Mode) | ± 1% |
| Frequency Range (Synchronized Range) | 46~54 Hz 50 Hz / 56~64 Hz 60 Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (Max) |
| Harmonic Distortion | Less than 2 % THD (Linear Load)
Less than 5 % THD (Non-linear Load |
| Transfer Time | AC Mode to Batt. Mode | zero |
| Inverter to Bypass | zero |
| Waveform (Batt. Mode) | Pure Sine Wave |
| EFFICIENCY |
| AC Mode | 89% | 89% | 89% | 90% |
| Battery Mode | 86% | 88% | 87% | 89% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 9 AH |
| Numbers | 16 pcs | 16 pcs x 2 strings | 16 pcs x 3 strings |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current (max.) | 1A | 2A | 2A | 2A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| Long-run Model | Battery Type | Depending on the capacity of external batteries |
| Numbers | 16pcs(192V) | 16pcs(192V) | 16pcs(192V) | 20pcs(240V) (18-20adjustable) |
| Charging Current (max.) | 4A | 4A | 4A | 12A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model | Dimension, D X W X H (mm) | 592 X 250 X 576 | 815 x 250 x 826 | 815*300*1000 |
| Net Weight (kgs) | 83 | 164 | 234 |
| Long-run Model | Dimension, D X W X H (mm) | 592 X 250 X 576 | 592 X 250 X 576 | 815 x 250 x 826 |
| Net Weight (kgs) | 28 | 40 | 64 |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter | Less than 65dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232 | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC |
| USB |
| Optional SNMP | Power management from SNMP manager and web browser |
* Long-run model is only available in 200/208/220/230/240VAC systems.
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
