True RMS Isolation Amplifier (ISO-RMS-P-O)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
ISO-RMS-P-O Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy Grade: |
0.1/0.2 |
| Nonlinearity: |
<0.2% |
| Auxiliary Power Supply: |
5V,12V,15V,24VDC |
| Package: |
DIP 24pin |
| Temperature Range: |
- 45°c ~ + 85°c |
Product Description
0-1V/0-200mV RMS to 4-20mA/0-5V Isolation Amplifier/TransmitterDescriptions:
ISO RMS-P-O Series RMS 0-200mV/0-1V to 4-20mA Isolation Transmitter is used in electronic testing where need high accuracy testing of various wave. The core components of RMS Isolation Amplifier is the highly integrated module, and it is configured and designed upon high accuracy amplifier and latest D/S calculation techniques. It can be used to test any type voltage or current wave without considering waveform or distortion.Features:
Wide Signal input 0-1kHz
200mV AC or DC Small Signal Conversion.
High Linearity (Non-linearity<0.2%)
3-Port Mutual Isolation 1.5KVAC among Input, Output and Auxiliary Power Supply
Auxiliary Power Supply: 12VDC, 24VDC
Accuracy: 0.1, 0.2
International Standard UL94-V0 Package
Flaming Retardant 24 PIN DIP Package
Temperature Range: -45° C to +85° C
Applications:
Analog Signal Data Acquisition and Isolation
Measurements of AC or DC Signal RMS
Ground Loop Elimination
Measurements & Instrumentations
Transducer Signal Transmitting and Receiving
Long Distance Signal Transmitting
Signal Converter in Industrial Application

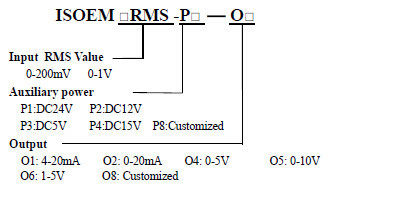

Model Sellection:
Example:

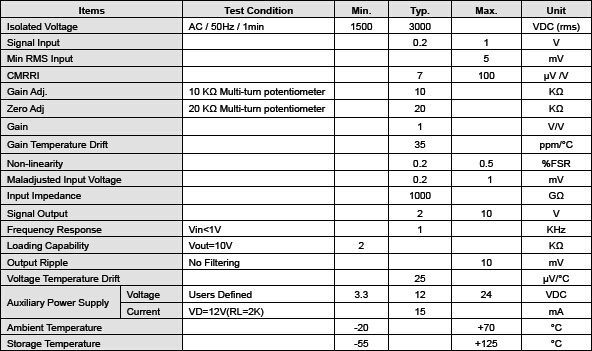

General Parameters:
