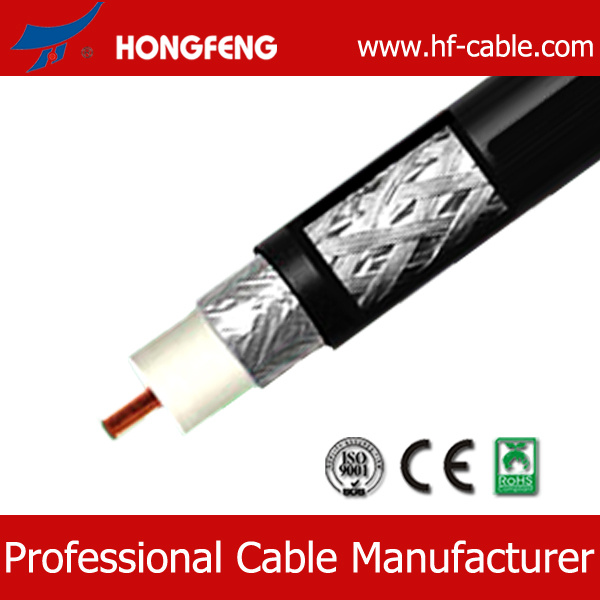

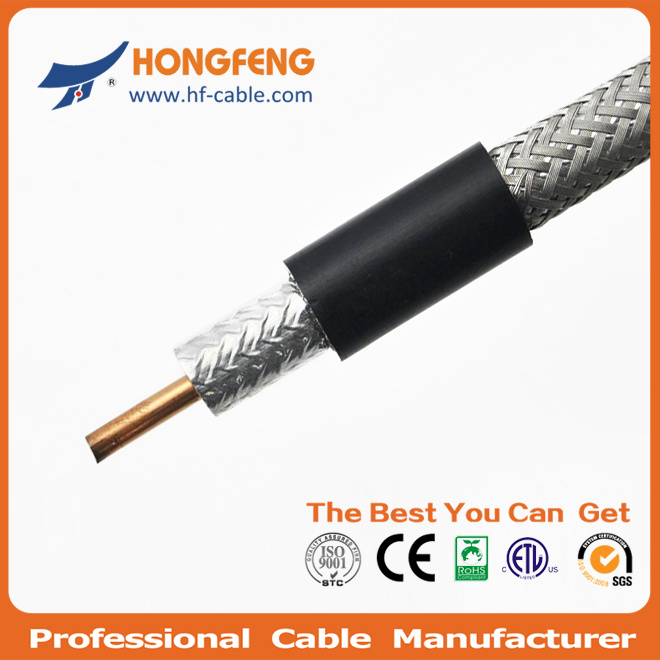

Trunk Cable 12d-Fb Communication CCTV/CATV Coaxial Cable

Name: Trunk Cable 12d-Fb Communication CCTV/CATV Coaxial Cable
Brand: all-electronics-online.com
SKU: 676300271
Availability: InStock
Rating: 4.6 (110 reviews)

Price:	US $ 0.85/Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	20000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	12D-FB cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Applications:	CCTV /CATV/Satellite/ Telecommunication
Place Of Origin:	Zhejiang, China (Mainland)
Inner Conductor:	4.4mm Cu, CCS, CCA
Dielectric:	12.40mm Foamed PE Insulation
First Shield:	Al/Pet/Al Foil (/Bonded)
Second Shield:	35%-95% Braiding
Outer Jacket:	15.60mm PVC ( PE)
Jacket Thickness:	1.0mm
Packing Method:	100m, 250m, 305m, 500m, 1000m, etc.
Application:	Trunk Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ETL
Type:	Coaxial

Product Description

75 ohm series trunk cable which is for CATV use
(1)CE ISO RoHS ETL UL
(2)Free sample
(3)Fast leadtime
(4)OEM is welcome

1. Specifications:

4.40mm CU + 12.4mm Foamed PE + Bonded Al. Foil + 168*0.16 TC. Wire + 15.60 PVC

2. Performance:

Min. Bending Ratios: 65mm
Resistance of inner conductor(DC): 7.05 Ω /km
Resistance of outer conductor(DC): 5.3 Ω /km
Dielectric Withstand Voltage: 1000 ACV/min
Insulation resistance: 5000 Ω /km
Dielectric strength: 1.6 KV
Velocity of propagation: 84%
Impendance: 50 Ω
V. S. W. R.: <1.2
Voltage withstand: 3000

Capacitance: 85 pF/m
Inductance: 0.21 uH/m
Screening effectiveness: >90 dB

Attenuation performation Temperature: 20 ° C
Frequency(MHz) Maximum(db/100ft) Maximum(db/100m)
150 3.4
280 4.7
350 5.3
400 5.8
800 8.5
900 9.2
1200 10.9
1500 12.3
1900 14.3

3. Mainly products:

1) RG series Coaxial Cable: rg58,rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178,rg213, rg214, rg316,rg402,etc.;

2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, 3D-FB, 5D-FB,8D-FB,10D-FB,12D-FB,etc.;

3) Vatc series Coaxial Cable:17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;

4) TRUNK Cable: P3 412, 500, 540, 625,750,850 ;

5) LMR SERIES: LMR200, LMR400, LMR600 ;

6) Network Cables: Lan Cable CAT3, Lan Cable CAT5, Lan Cable CAT5e, Lan Cable CAT6, Lan Cable CAT7;

7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable, RGB5C,RGB6/4C,BT3002.

8) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable
9) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.

4. Contact:

Mr. Leo

Hangzhou Hongfeng Cable Co., Ltd.

www.hf-cable.com

www.hf-cable.com.cn

Tel: +86-571-58615536

Fax: +86-571-63816227

Mb: +86-18268847560

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
