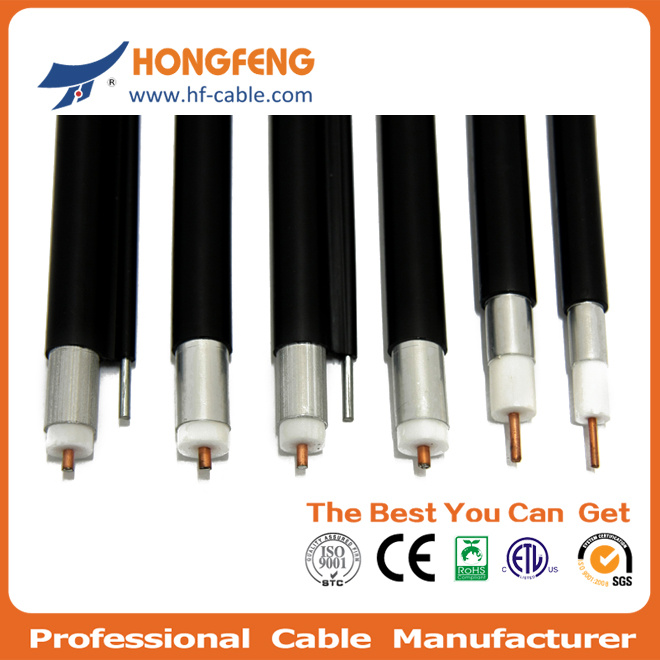

Trunk Cable, 500cable. Rg500 Coaxial Cable

Product Description

Trunk cable Product Description

Wire Specification:
A. 2.77mm ± 0.03 CCA + Foamed PE + 11.43mm ± 0.3 Al Tube + 14.22mm ± 0.3 PE
B. 2.77mm ± 0.03 CCA + Foamed PE + 11.43mm ± 0.3 Al Tube + 14.22mm ± 0.3 PE +2.77mmSteel Messenger
C. 2.77mm ± 0.03 CCA + Foamed PE + 11.43mm ± 0.3 Al Tube + Flooding Compound + 14.22mm ± 0.3 PE
D. Customers' specifications are welcomed
-Other mode: QR412 and QR540 trunk cable are also available

Product Description:

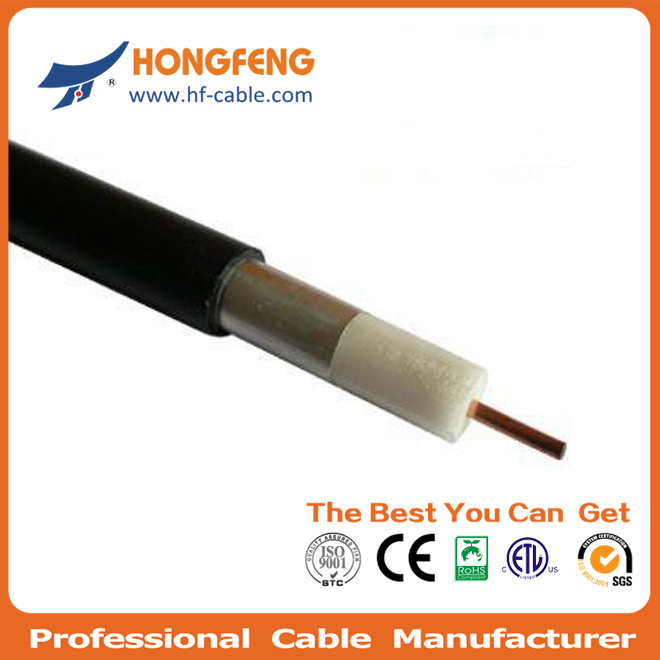

RG500 Coaxial tube cable (P3.500. JCA) at high quality and competitive price
With solid aluminum tube swaged onto dielectric core, fully bonded copper clad center conductor, medium density PE jacket, optional integrated messenger
It is developed for wideband network systems
It has the highest levels of security and flexibility while at the same time lower attenuation values when compared with the customary cable

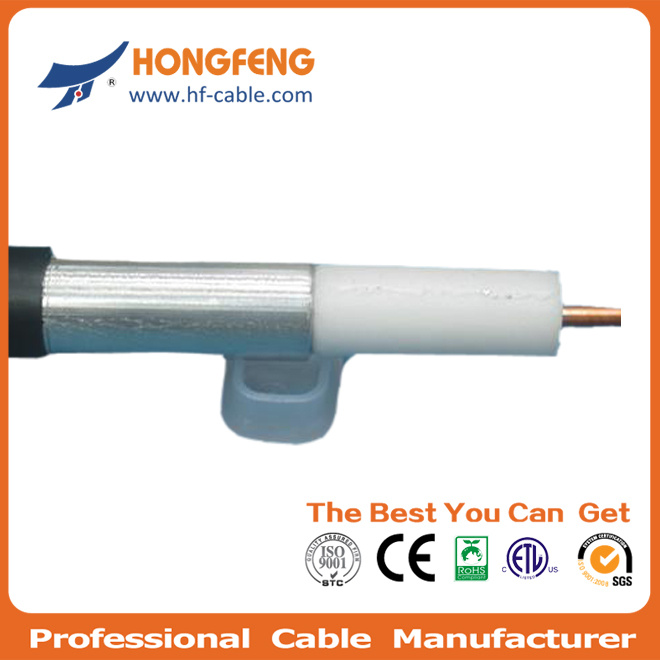

Construction:
Center conductor: 2.77mm (0.109 inch) CCA (Copper Clad Aluminum) / BC (Bare Copper)
Dielectric: 11.43mm (0.450 inch) Micro-Cellular Foam PE
Shield: Solid aluminum tube, nominal outer conductor thickness: 0.61mm (0.024 inch)
Jacket: Medium density PE, Diameter: 14.22mm (0.560 inch), thickness: 0.76mm (0.030 inch)
Optional Messenger: 2.77mm (0.109 inch) steel

Mechanical characteristics:
Minimum bend radius: Standard 6.0 inches (15.2cm)
Minimum bend radius: Bonded 3.5 inches (8.9cm)
Maximum pulling tension: 300lbs (136kgf)

Electrical characteristics:
Capacitance: 15.3 ± 1.0pf/ft (50 ± 3.0nf/km)
Impedance: 75 ± 2Ω
Propagation velocity: 87% nominal
Nominal DC loop resistance at 68° F: 1.72Ω/1, 000ft (5.64Ω/km)

Packing:
Packing lengths: 500, 700, 900, and 1, 000m wooden reel or more available
Other packing available according to client's request

Application: Cable for TV, CATV, SAT TV networks.

Coaxial Cables:
1) Mil-C-17 Standard Cable: RG6AU, RG59BU, RG11AU, RG58AU, RG58CU, RG174AU, RG213U, RG214U;
2) RG Type 50OHM Coaxial Cable: RG8, RG58, RG142, RG174, RG213, RG214, etc.
3) RG Type 75OHM Coaxial Cable: RG59, RG6, RG7, RG11, etc
4) Trunk Cable: QR320. QR540, P3.412, P3.500, P3.565, etc.
5) RF Coaxial Cable LMR: LMR195, LMR200, LMR300, LMR400, LMR500, LMR600
5) RF Coaxial Cable D-FB: 3D-FB, 5D-FB, 7D-FB, 8D-FB, 10D-FB, 12D-FB, etc.
6) Combined Cable: RG59+2C, RG6+2C, RG6+CAT5e, 2RG6+2CAT5e
7) Network Cable, LAN Cable: CAT3, CAT5, CAT5e, CAT6, Multi Pairs,
8) JIS Standard Cable: 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, etc.
9) French Standard Cable: 11VAtc/PAtC, 17VAtc/PAtC, 19VAtc/PAtC, 21VAtc/PAtC, KX6/A, KX8, etc.
10) British Standard Cable: BT3002, BT3002*8, BT3002*16, CT100, CT125, CT165, CT167, URM57, URM67, etc
