Trunk Cable Qr500 Messenger

Prod Model:	DSC-Trunk Cable QR500 Messenger
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Commscope Hfc Trunk Coaxial Cable P3.500:	Qr500 Coaxial Cable
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	Trunk Coaxial Cable P3.500
Model:	Commscope Hfc Trunk Coaxial Cable P3.500

Product Description

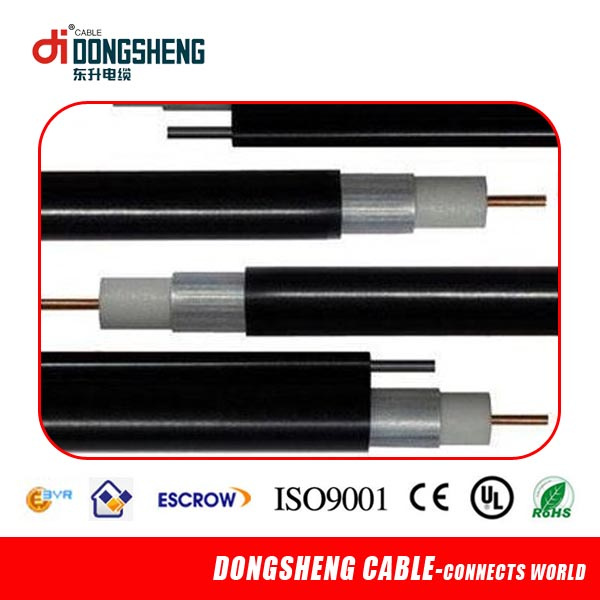

Trunk Cable QR500 Messenger

Trunk Cable QR500 Messenger

HFC Trunk Coaxial Cable P3.500, 75 ohm Cable Coaxial 500

HFC Trunk Coaxial Cable P3.500

Product specification:


Coaxial Cable P3.500,Trunk Cable QR500 Messenger		TYPE	Coaxial Cable QR500
Construction
Item	Material			Diameter(mm)
Center Conductor	Copper Clad Aluminum			2.77
Dielectric	Foam PE			11.43
Outer Shield	Solid Aluminum Tube			0.61thickness
Jacket	PE			14.22
Electrical Charateristics
Impedance(Ω)				75±3
Capacitance(pF/m)				50±3
Velocity of Propagation(%)				87.0
DC Loop Resistance(Ω/km)				5.64
Maximum Pulling Tension(kgf)				136
Return Loss
5-1000MHZ(dB)				≥22



@Frequency(Mhz)	Max Attenuation(dB/100m)
5	0.52
55	1.77
83	2.17
211	3.58
250	3.94
300	4.30
350	4.69
400	5.02
550	5.97
600	6.27
750	7.09
865	7.68
1000	8.27


Packaging: 1) 500m/wooden reel 2)750m/wooden reel 3)1000m/wooden reel
Applications

(1) CATV-community antenna television.

(2) CCTV-closed-circuit television.

(3) DBS-direct broadcasting satellite.

Coring 2 core ftth drop cable

2 core ftth drop cable

Cabo de fibra optica, Cavo in fibra ottica, Cable a fibres optique
Main Type:
1. GYXTW          2. GYTA pipe           3. GYTS universal                                               4. GYTY53 aerial          5. GYTA53 direct-burial
 6. GYFTY Non-metallic                  7. GJFJV Indoor
 8. GYDGA ribbon slotted core    9. GYDTA(s) layer-stranded ribbon                   10. GYDXTW tube ribbon             11. ADSS
12. GYXTC8Y                                   13. FTTH                      14. GYXTC8S

FTTH Optical Fiber Cable  Application
Local Area Networks(LANS),Data processing networks,Instrument,Premise installations.
Specification

Mode	SM	MM
Polish	UPC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB	≤0.25dB
Return Loss	≥50dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times)
Vibration	≤0.2dB (550Hz  1.5mm)
Tensile Strength	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB  (+25+65 93 R.H.100 hours)

 Ordering option

Boot (cable size)	Boot Color	Fiber Type	Cable number	Length
0.9mm 2.0mm 3.0mm	Black Green Brown	9/125um SM 50/125um MM 62.5/125um MM OM3 OM4	Simplex Duplex Multi-fiber	Customized

Cable dimension

Fiber Core	Outer size max, mm	Max. N.W.,kg/km
1	2.5mm x 5.5mm (± 0.2mm)	28
2	2.5mm x 5.5mm (± 0.2mm)	28
4	2.5mm x 6.5mm (± 0.2mm)	32


Packing: 2000m/wooden drum or 3000m/wooden drum, Customer's requirement also be welcom

Other Cables:
1) Lan  Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
