Ts Surface Series Type Distribution Box

Name: Ts Surface Series Type Distribution Box
Brand: all-electronics-online.com
SKU: 693668532
Availability: InStock
Rating: 4.5 (150 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TS OMG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	ABS PVC
Waterproof Rating:	IP65
Type:	Power
Structure:	Protection
Shell Material:	ABS

Product Description

Specifications
It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises
TS Surface series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions. The plastic unit of the TS Surface series Modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Structure and features:
This distribution boxes/Distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy. The products is designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

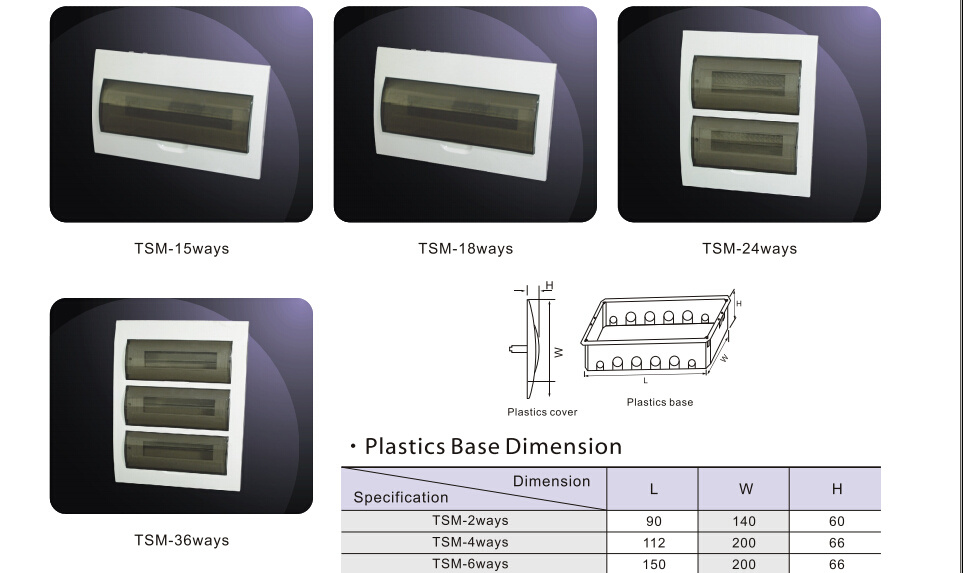

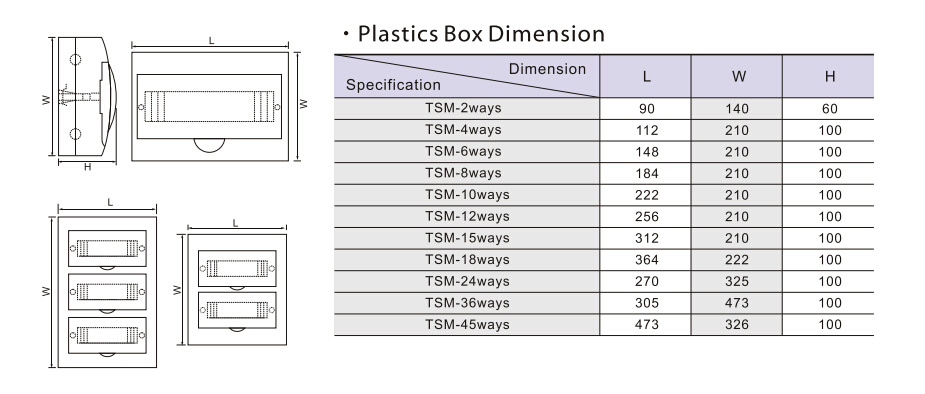

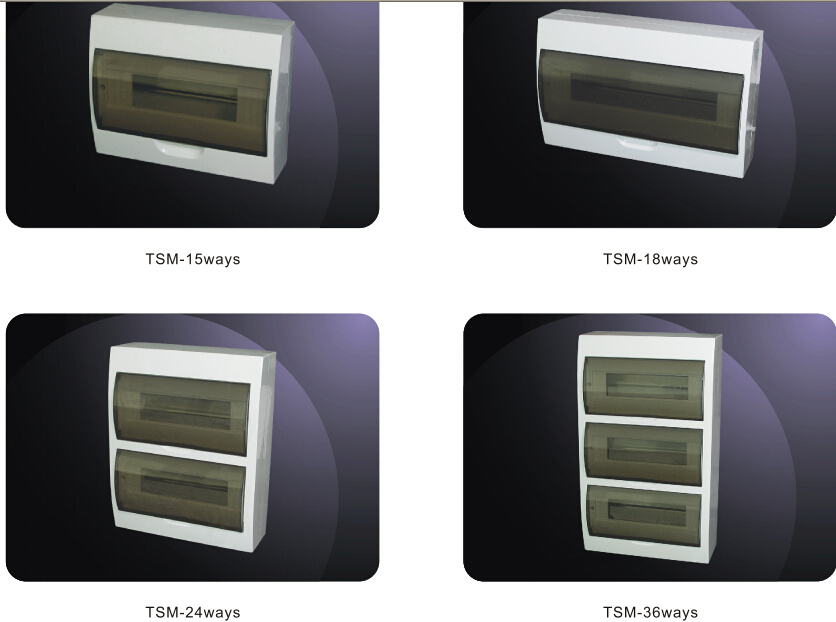

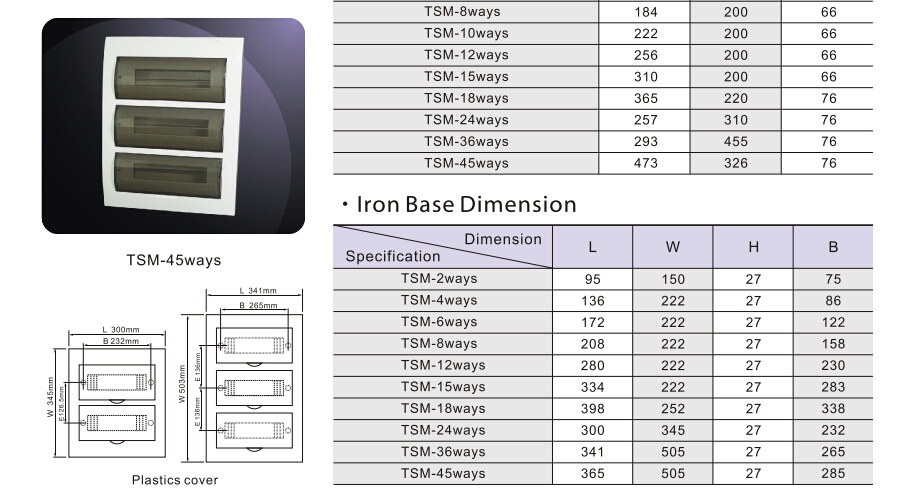

Specification	L	W	H

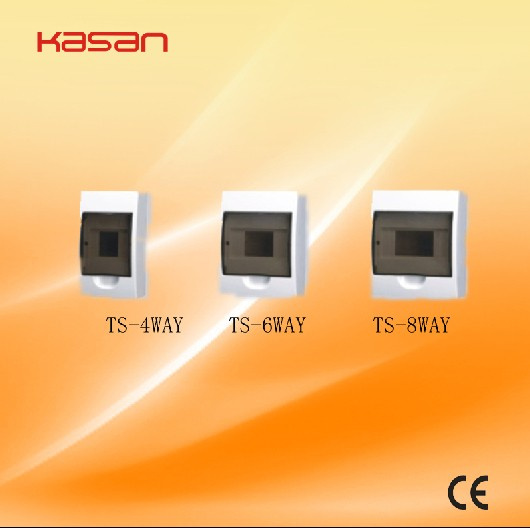

DISTRIBUTION BOX/BOARD-TS-4WAYS	112	200	95
DISTRIBUTION BOX/BOARD-TS-6WAYS	148	200	95
DISTRIBUTION BOX/BOARD-TS-8WAYS	184	200	95
DISTRIBUTION BOX/BOARD-TS-10WAYS	222	200	95
DISTRIBUTION BOX/BOARD-TS-12WAYS	256	200	95
DISTRIBUTION BOX/BOARD-TS-15WAYS	310	200	95
DISTRIBUTION BOX/BOARD-TS-18WAYS	365	222	95
DISTRIBUTION BOX/BOARD-TS-24WAYS	271	325	97
DISTRIBUTION BOX/BOARD-TS-36WAYS	271	462	100
