Tsd High Quanlity Reasonable Price Voltage Stabilizer

Tsd High Quanlity Reasonable Price Voltage Stabilizer
Price: US $ 22/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: TSD
Install Type: Mounted Install
Specification: A Grade
Current Type: AC
Phase: Single Phase
Brand: Honle

Product Description

Product Description

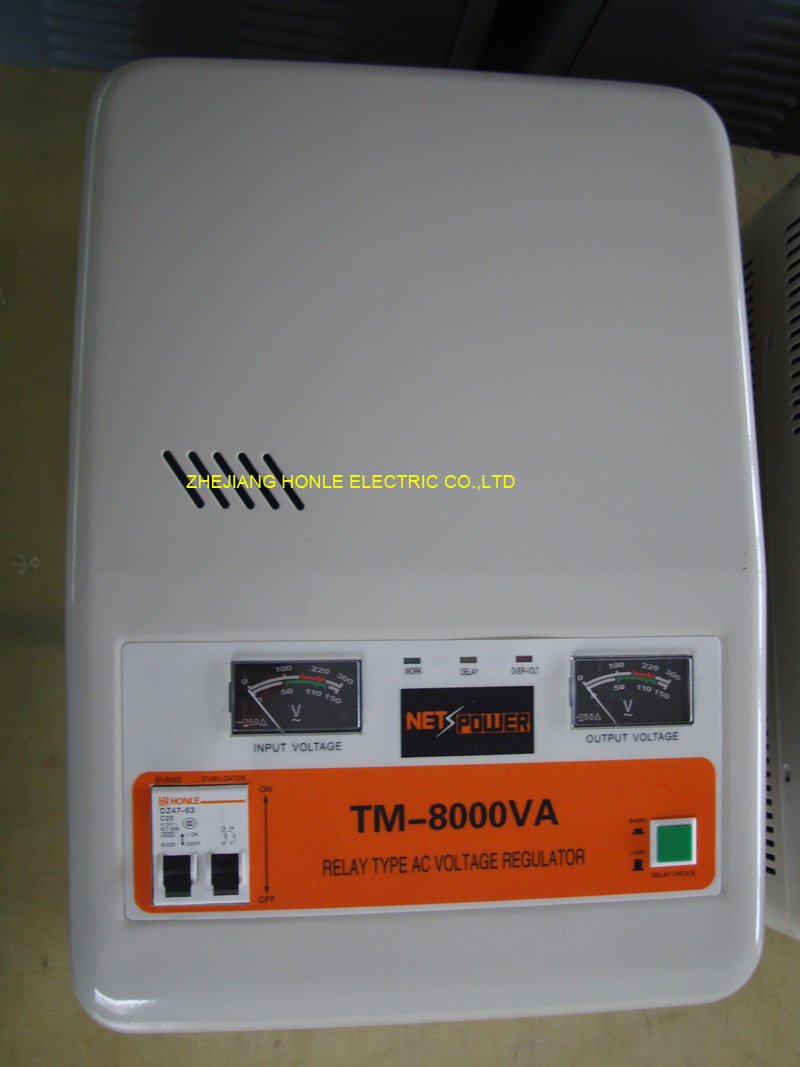

TM Series Rely Type AC voltage stabilizer

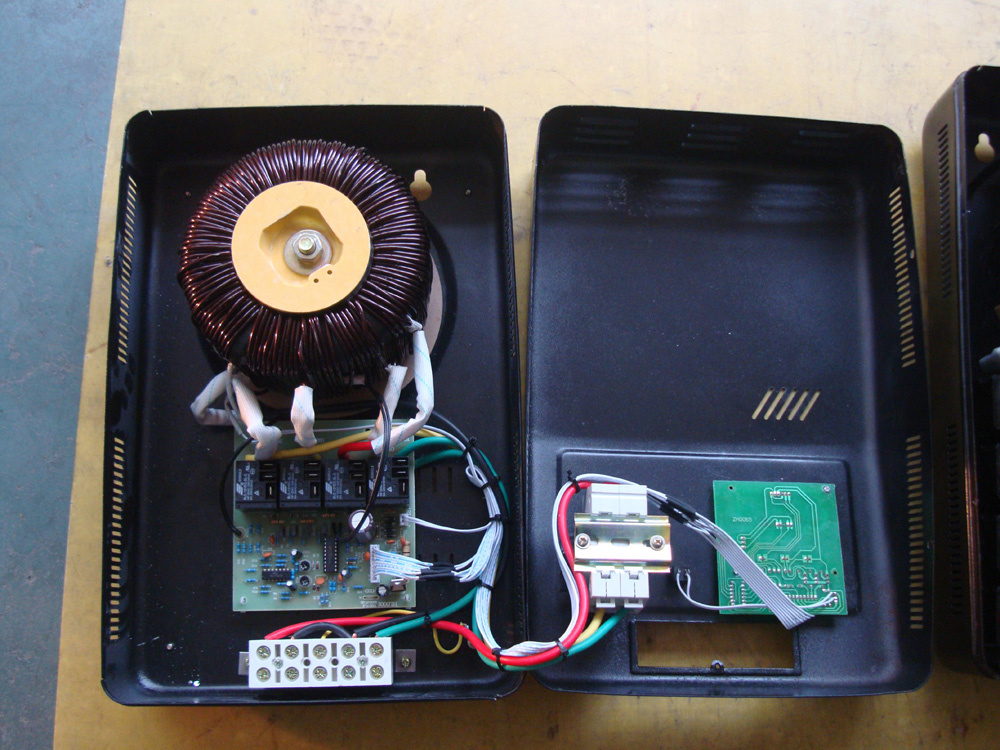

TM Series servo AC voltage stabilizer adopt relay switch-over to adjust the output voltage,possessing the protection against tiomdelay,over voltage and under voltage the free switching between the electric supply and voltage stabilization,etc

input voltage:120-270V
output voltage:220V±10%
Frequency:50-60HZ
Voltage regulating speed:>7.5V/sec
Voltage for over voltage Protection:246±4V
Ambient Temperature: -10~+40degreeWaveform distortion:No additional waveform distortion
Dielectric strength: 1500V/min
Insulating resistance:≥2mΩ

High Quanlity Reasonable Price Tsd Voltage StabilizerHigh Quanlity Reasonable Price Tsd Voltage Stabilizer

High Quanlity Reasonable Price Tsd Voltage Stabilizer


ModelTSD-3000VATSD-5000VATSD-8000VATSD-10KVA
Package size(cm)42×30×19.546.3×35.5×2346.3×35.5×2350×38.5×25
Current for over current protection15A25A40A50A
input voltage140-260V 140-260V150-250V
output voltage220V±3%   110V±4%
Frequency50-60HZ
Voltage regulating speed>7.5V/sec
Voltage for over voltage Protection245±5V
Ambient Temperature-5 C~+40 C
Waveform distortionNo additional waveform distortion
Insulating resistance≥2mΩ





Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.

Up to now, Honle has the modern workshops and advanced production devices. Besides, the company always introduces technology positively, reforms craft continuously, devotes to researching and developing the voltage stabilizer, regulator and power supply, precise pureness power supply, providing, marketing for products. The company always do researching and developing the stabilized voltage power supply, precise pureness power supply, providing marketing for products. In addition, the company tries to find excellent administrators and technical talents. After just a few years of continuous efforts, Honle has been improved on the aspect of varieties, production scale, management mode. So products manufactured by Honle have reached advanced technical level, they are not only popular with a great many customers in China, but also in foreign countries.

The products of our company have been approved by Shanghai Quality Supervision & Inspection Institute, and insured by PICC company. Honle insists on the quality of survival, innovation and development all the time, and it has passed ISO9001 quality management system certification. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO. That is helpful for establishing reinforced foundation of international business.
