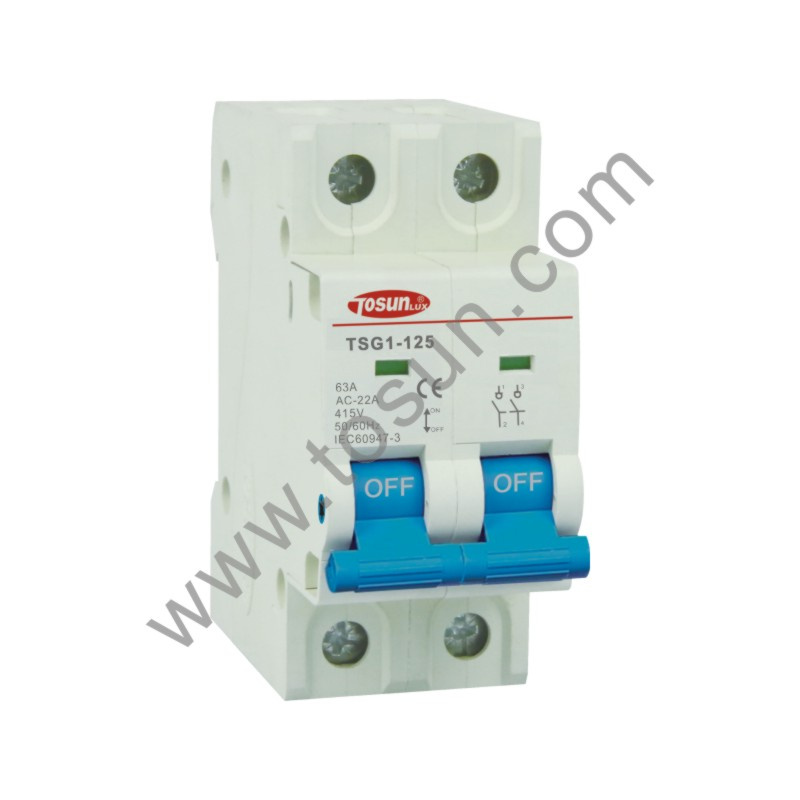

Tsg1-125 Isolating Switch for Individual Electric Circuits

Name: Tsg1-125 Isolating Switch for Individual Electric Circuits
Brand: all-electronics-online.com
SKU: 752176995
Availability: InStock
Rating: 4.8 (23 reviews)

Price:	US $ 0.8-4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSG1-125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Rated Current (a):	16, 20, 25, 32, 40, 50, 63, 80, 100, 125
Rated Voltage:	1p: AC240 / AC415V ; 2,3,4p: AC415V
Rated Frequency:	50/60Hz
Protection Degree:	IP20
Utilization Category:	AC-22A
Lcw:	12le, T=0.1s
Rated Short-Circuit Making Capacity Lcn:	20le, T-0.1s
Rated Making & Breaking Capacity:	3le, 1.05ue, Cosφ=0.65
Rated Insulation Voltage Ui (V):	690
Rated Impulse Withstand Voltage Uimp (V):	4000
Type:	Low-voltage
Structure:	Single-column Disconnector
Operation:	Electric
Grounding:	Single Ground
Run:	Vertical Rotation
Switching Mode:	Single Throw-in
Certification:	CE
Installation:	DIN Rail
Number Of Poles:	1, 2, 3, 4
Series:	1~4
Brand:	Tosunlux

Product Description

Specification

Number of Poles	1P, 2P, 3P, 4P
Rated Current (A)	16, 20, 25, 32, 40, 50, 63, 80, 100, 125
Rated Voltage (V)	1P: 240/415V AC 50/60Hz
Rated Voltage (V)	2P, 3P, 4P: 415V AC 50/60Hz
Utilization Category	AC-22A
ICW	12le, t=0.1s
Rated Short-circuit Making Capacity ICN	20le, t=0.1s
Rated Making & Breaking Capacity	3le, 1.05Ue, COS=0.65
Rated Insulation Voltage UI (V)	690
Rated Impulse Withstand Voltage Uimp (V)	4,000
Electrical Life (times)	1,500
Mechanical Life (times)	10,000
Terminal Capacity	Cables up to 50mm²
Ambient Temperature (ºC)	-25~+45, Max. 95% humidity
Storage Temperature (ºC)	-40~+75
Altitude (meters)	Max. 2,000
Protection Degree	IP20
Installation	Mounting on 35mm DIN rail
Width	18mm per pole
Standard	EN/IEC60947-3

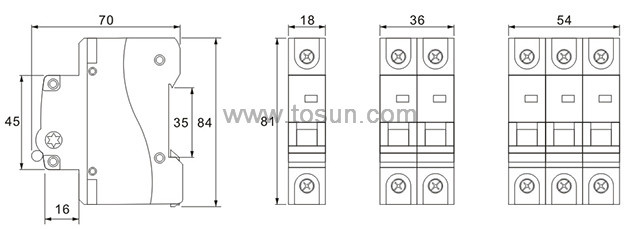

Dimensions(mm)

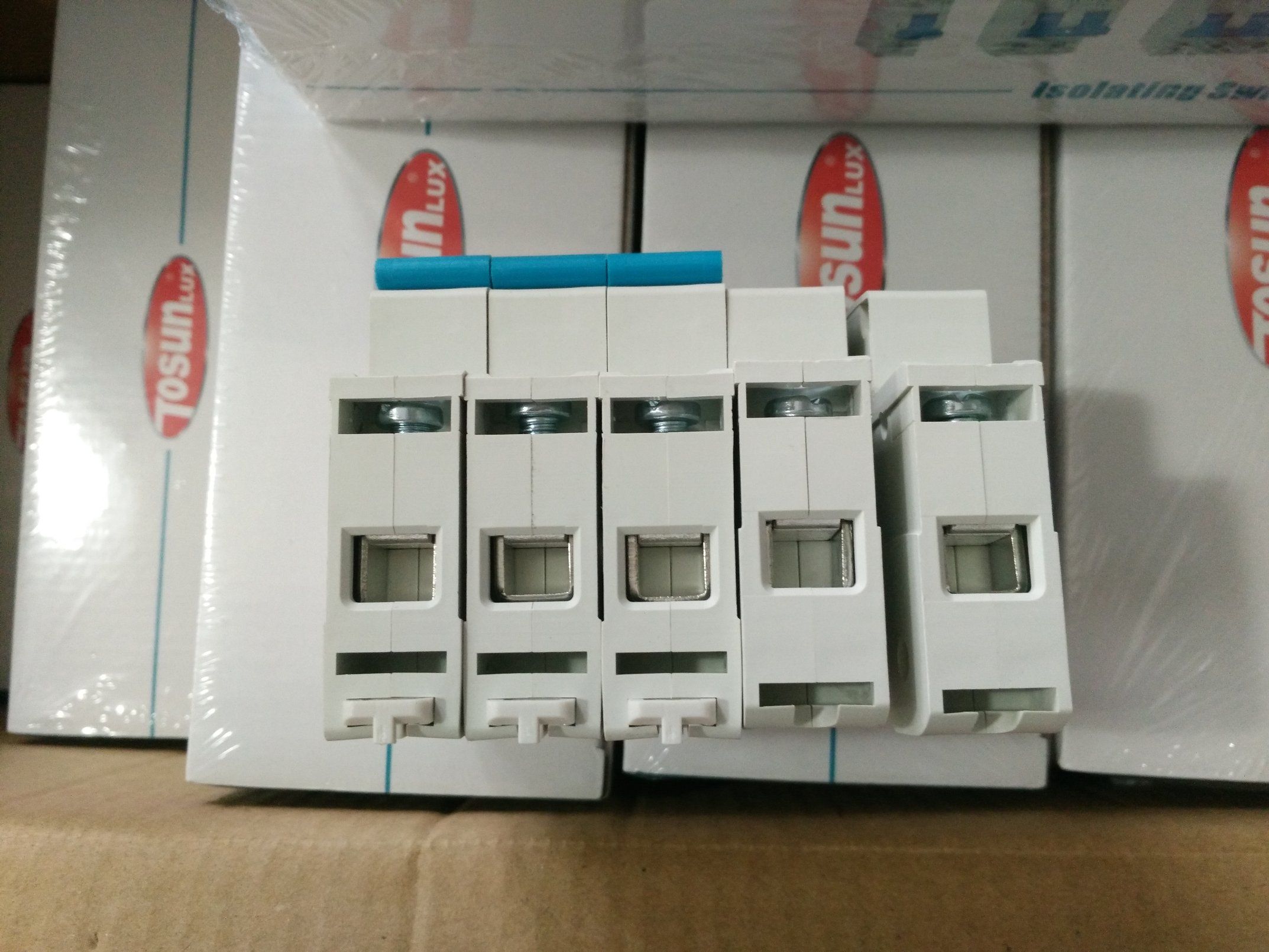

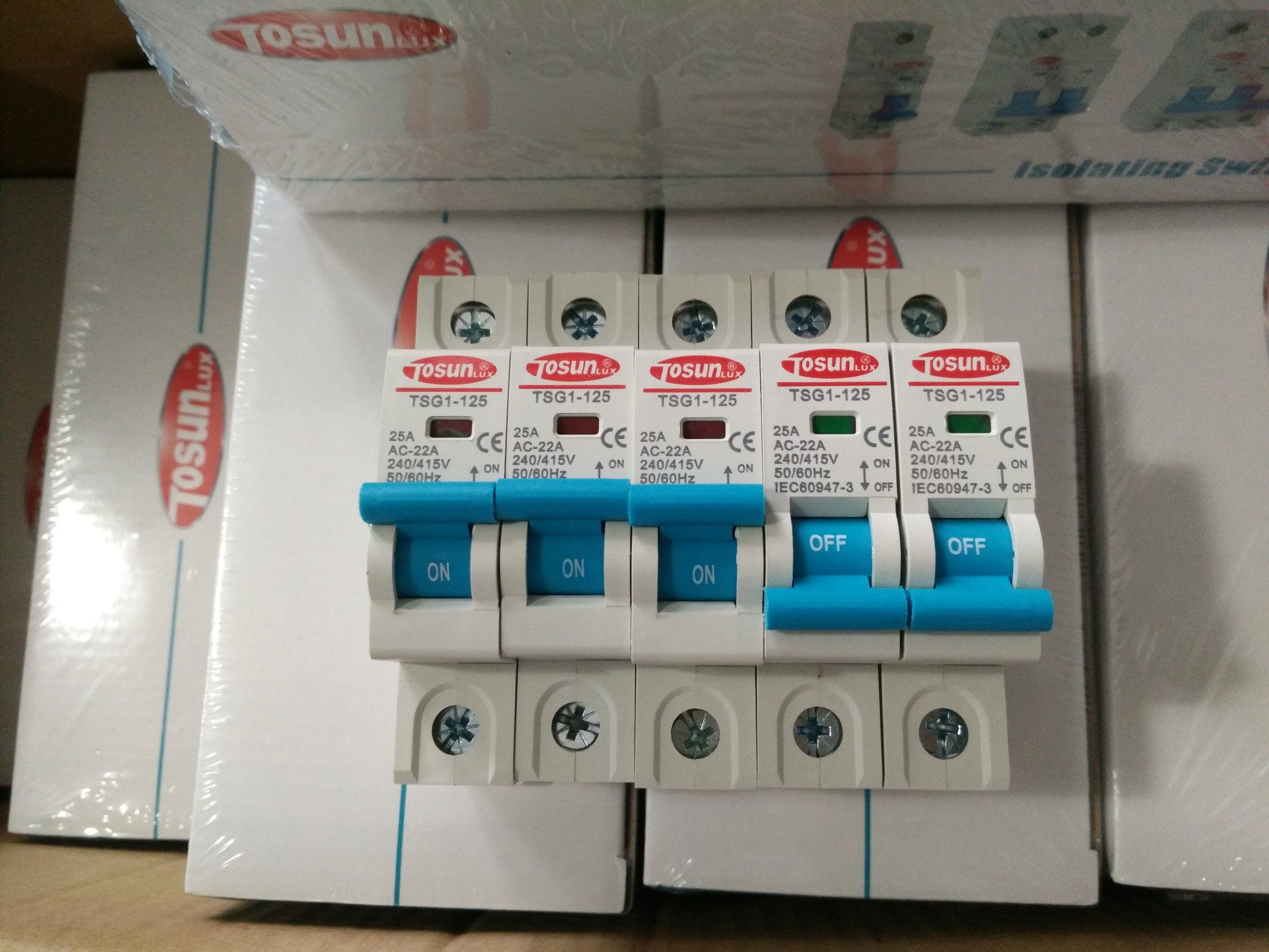

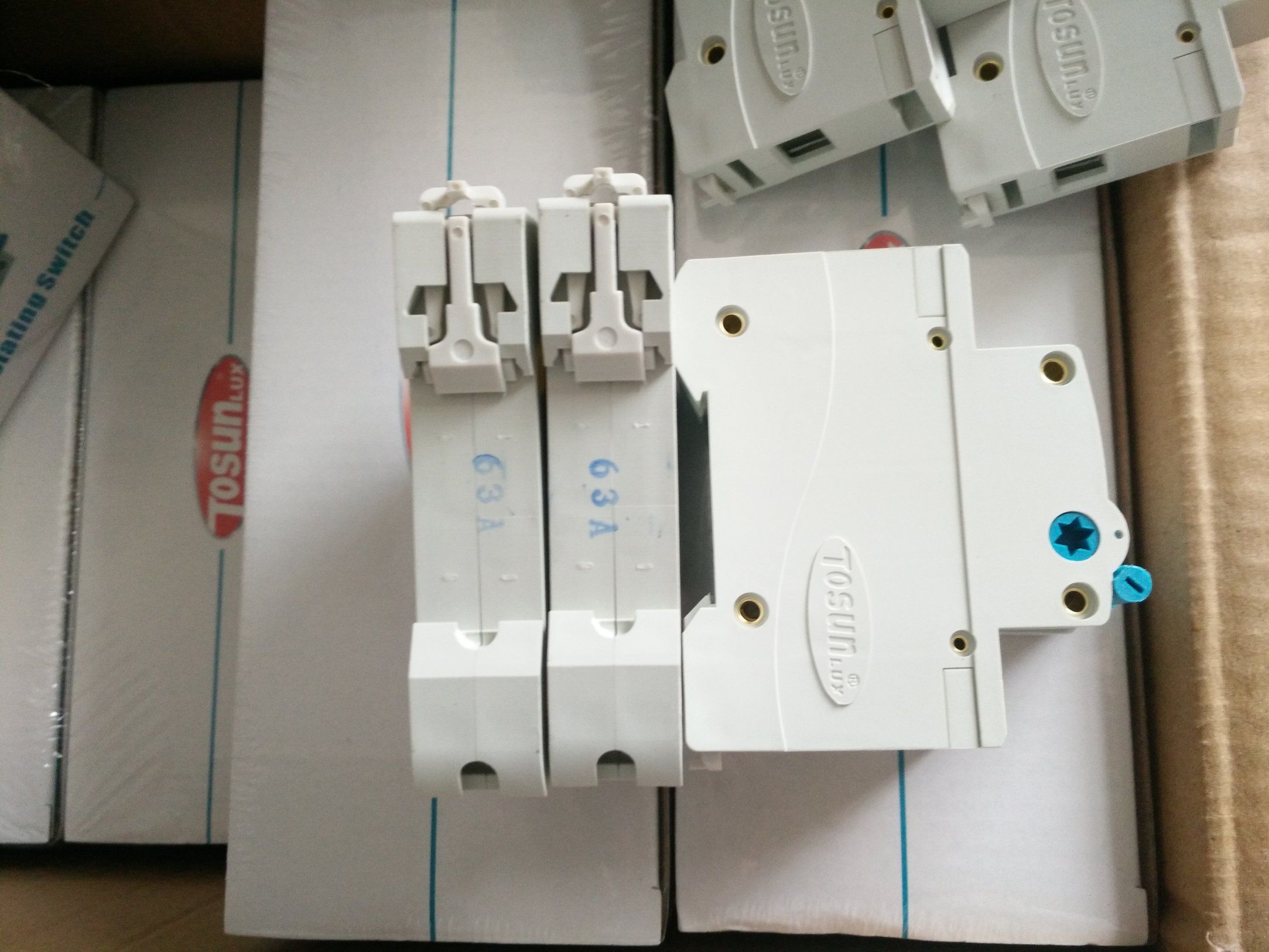

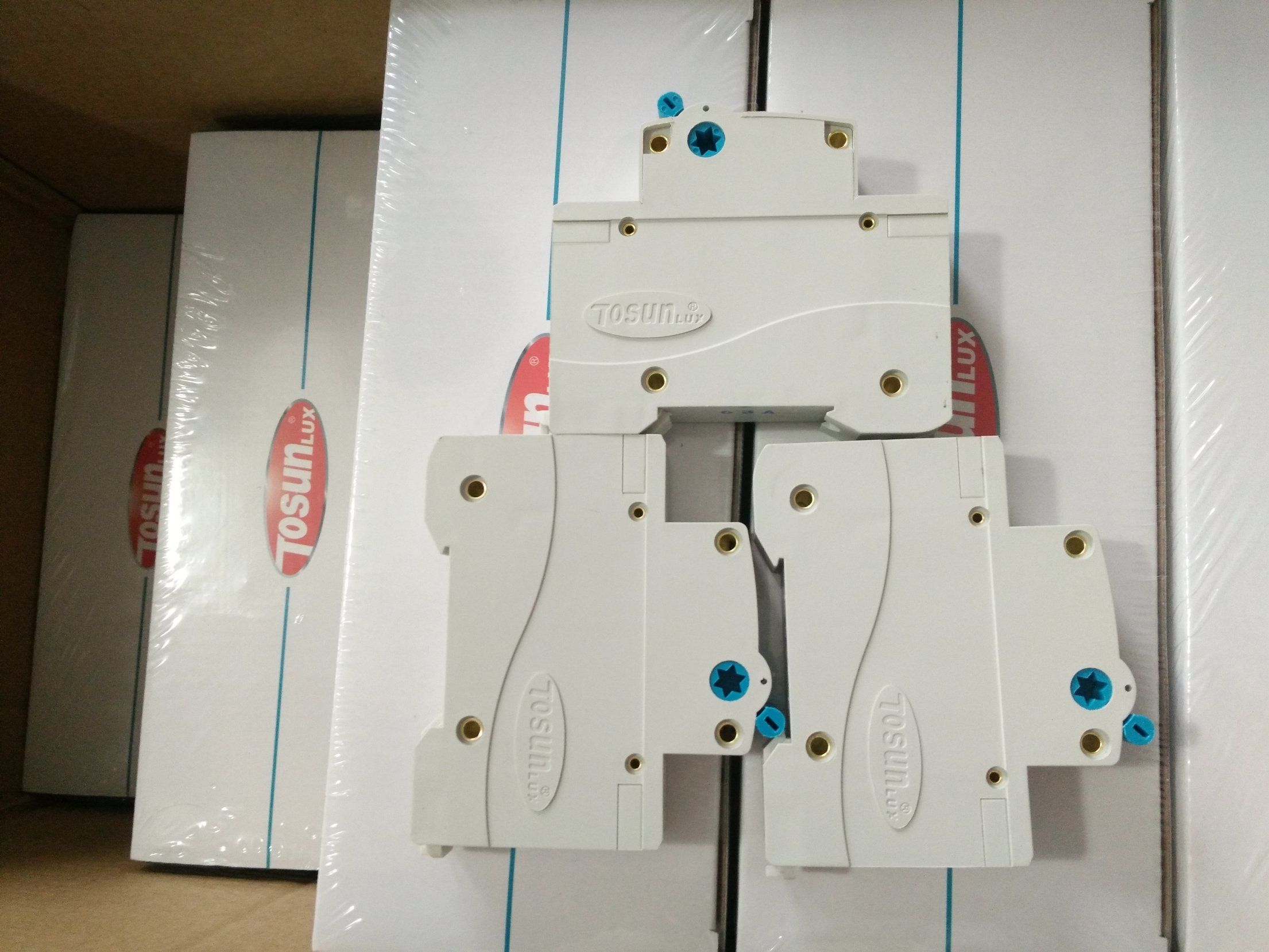

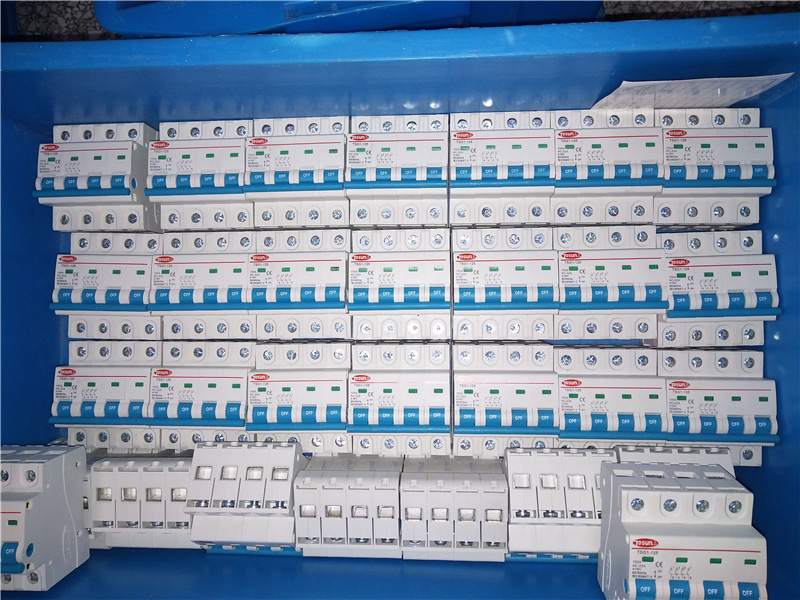

Pictures
