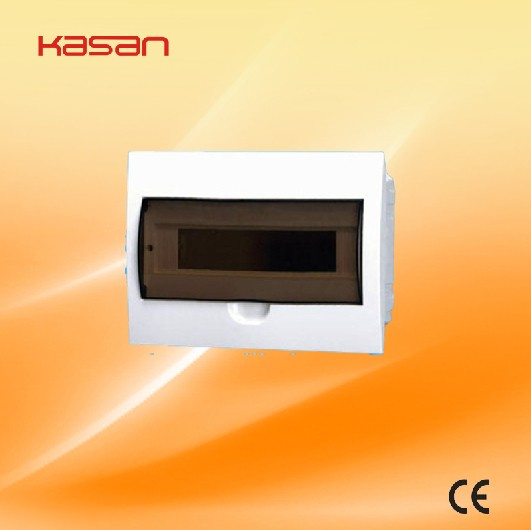

Tsm TF Flush Mount Type Distribution Box

Name: Tsm TF Flush Mount Type Distribution Box
Brand: all-electronics-online.com
SKU: 693669242
Availability: InStock
Rating: 4.4 (82 reviews)

Price:	US $ 1-10/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSM TF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	ABS PVC
Waterproof Rating:	IP65
Specification:	4,6,8,10,12,15,18,24,36ways

Product Description

TF mcb 8ways distribution box IP65

Product description:
TF Surface series Modular distribution boxes/distribution boards are the new design with the fashion door. They are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions. The plastic unit of the TF modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability. And so on.

1. With high-quality plastic raw materials (by no means turn copied material, environmental protection and quality assurance, there will never be black spots)
2.7X9 pure brass (copper is by no means, good conductivity) Ø Panel using advanced plastic.
3. Boxes integrated molding, a variety of sizes to choose size, beautiful appearance, simple.
4. Earth leakage circuit breaker panel with sufficient distance, performance and more secure.

specification	L1	W1	H1	L	W	H
TF 4WAYS	115	197	60	136	222	27
TF 6WAYS	148	197	60	170	222	27
TF 8WAYS	184	197	60	207	222	27
TF 10WAYS	222	197	60	243	222	27
TF 12WAYS	258	197	60	279	222	27
TF 15WAYS	310	197	60	334	222	27
TF 18WAYS	365	219	67	398	251	27
TF 24WAYS	258	310	66	300	345	27
TF 36WAYS	258	449	66	300	484	27
