| Prod Model: |
TSM2 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current: |
6-1600A |
| Structure: |
MCCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
TUV |
| Operation: |
Manual Type |
| Installation: |
Fixed |
| Arc-extinguishing Medium: |
Air |
| Speed: |
Normal Type Circuit Breaker |
| Function: |
Overload, Short-Circuit, Undervoltage |
| Poles Number: |
2p, 4p |
Product Description

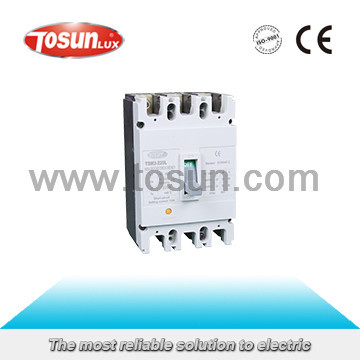

Application1. TSM2 Moulded Case Circuit Breaker is a new type product developed and manufactures by adopting international advanced technology.
2. Supplied with rated insulation voltage 800V and used for circuit of AC50Hz, rated operating voltgae AC 400V or below operating current up to 1600A for infrequent changing over and starting of the motors.
3. Equipped with the protection devices for over-current, short circuit and under voltage, the product is capable of preventing damage of circuits and supply units.
4. The products comply with IEC60947-2Specification| Type | Rated Current(A) | Number of
Poles | Rated Insulating
Voltage (V) | Arcing
Distance
(mm) | Ultimate Short Circuit
Breaking Capacity(KA) | Service Short Circuit
Breaking Capacity(KA) | Operation Performance |
| ON | OFF |
| TSM2-63L | 6,10,16,20,25,
32,40,50,63 | 3,4 | 500V | 0 | 25 | 18 | 1500 | 8500 |
| TSM2-63M | 0 | 35 | 22 |
| TSM2-100L | 10,16,20,25,32,
40,50,63,80,100 | 800V | 0(<=50) | 35 | 22 |
| TSM2-100M | 0(<=50) | 50 | 35 |
| TSM2-100H | 0(<=50) | 85 | 50 | 1000 | 7000 |
| TSM2-225L | 100,125,160,
180,200,225 | <=50 | 35 | 22 |
| TSM2-225M | <=50 | 50 | 35 |
| Type | Rated Current(A) | Number of
Poles | Rated Insulating
Voltage(V) | Arcing
Distance
(mm) | Ultimate Short Circuit
Breaking Capacity(KA) | Service Short Circuit
Breaking Capacity(KA) | Operation Performance |
| ON | OFF |
| TSM2-225H |
| 3,4 | 800V | <=50 | 85 | 50 | 1000 | 4000 |
| TSM2-400L | 225,250,315,350,
400 | <=50 | 50 | 35 |
| TSM2-400M | <=100 | 65 | 42 |
| TSM2-630L | 400,630 | <=100 | 50 | 35 |
| TSM2-630H | <=100 | 100 | 65 |
| TSM2-800M | 630,700,800 | 3 | <=100 | 75 | 50 |
| TSM2-800H | <=100 | 100 | 65 |
| TSM2-1250M | 1000,1250, | <=100 | 100 | 65 |
| TSM2-1250H | <=100 | 125 | 75 |
| TSM2-1600M | 1600 | <=100 | 125 | 80 |
Note: 6A without thermal protection
The N-pole of four-poles breaker is sited at the right side of the products has four types:
Type A: Without current trip-release on N pole which making all the time, not closing and opening with the other three poles.
Type B: Without current trip-release on N pole which closing and opening with the other poles.
Type C: With current trip-release whch closing and opening with the other three poles.
Type D: With current trip-release which making all the time not closing and opening with the other three poles.

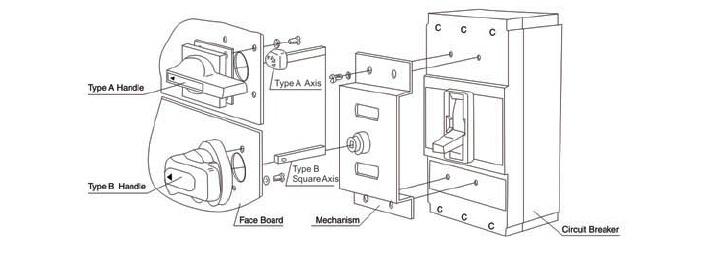

Manual Operation Device
The mechanism is used in moulded case circuit breaker to operate the draw-out panel. Power distribution panel and supply box outside the panel by turning the handle, and to ensure the door of panel would not be opended when the breaker is in "ON" position. The manual operation mechanism can be equipped with two types of handles, "A" model is square handle and "B" model is round handle.
Motor-driven Operation Device

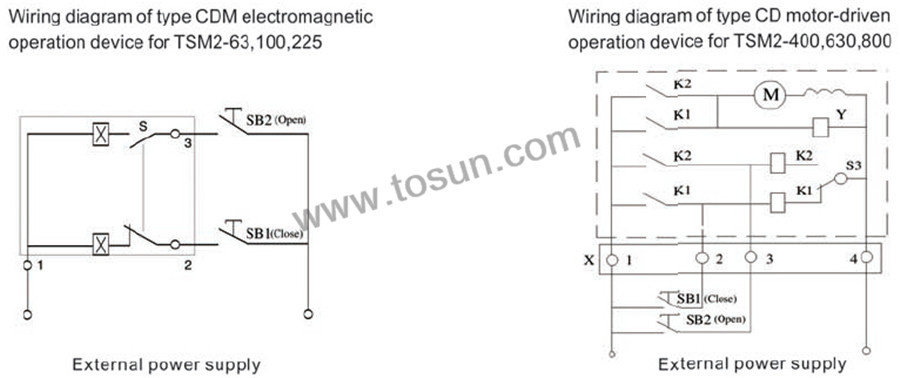

CDM Electromagnetic Operation Device
Code Description: SB1,SB2 stand for push button. (Provided by user themselves) Number "1" "2" "3" stand for number of wiring terminals.
Rated Voltage: AC 220V, 400V
CD Motor-driven Operation DeviceCode Description: SB1,SB2 stand for push button. (Provided by user themselves) "X" stand for line connection terminals.
Rated Voltage: AC 220V, 400V

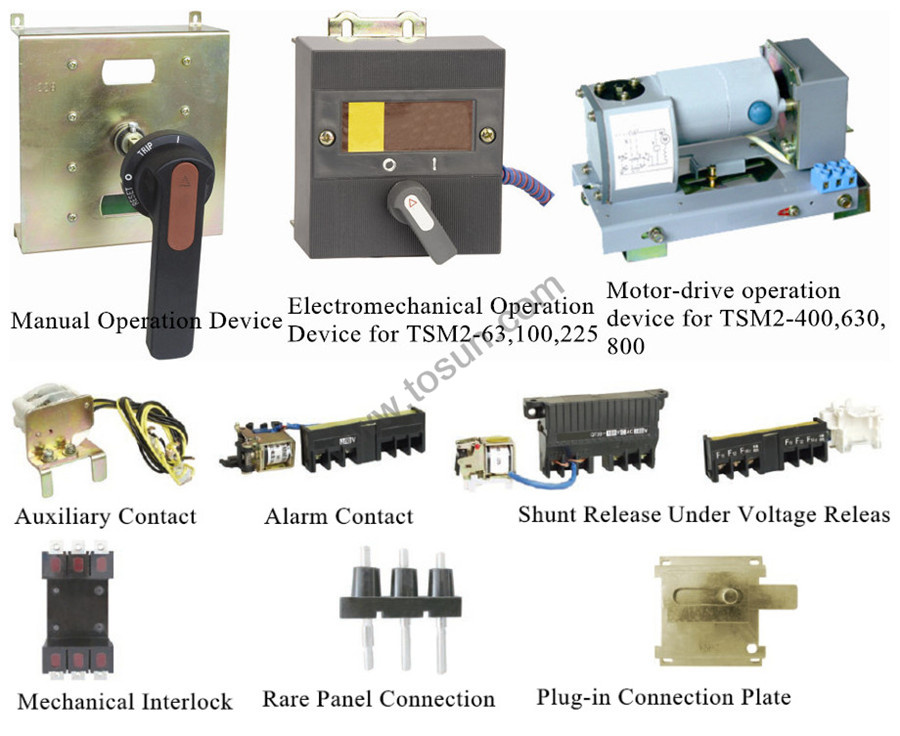

Components
