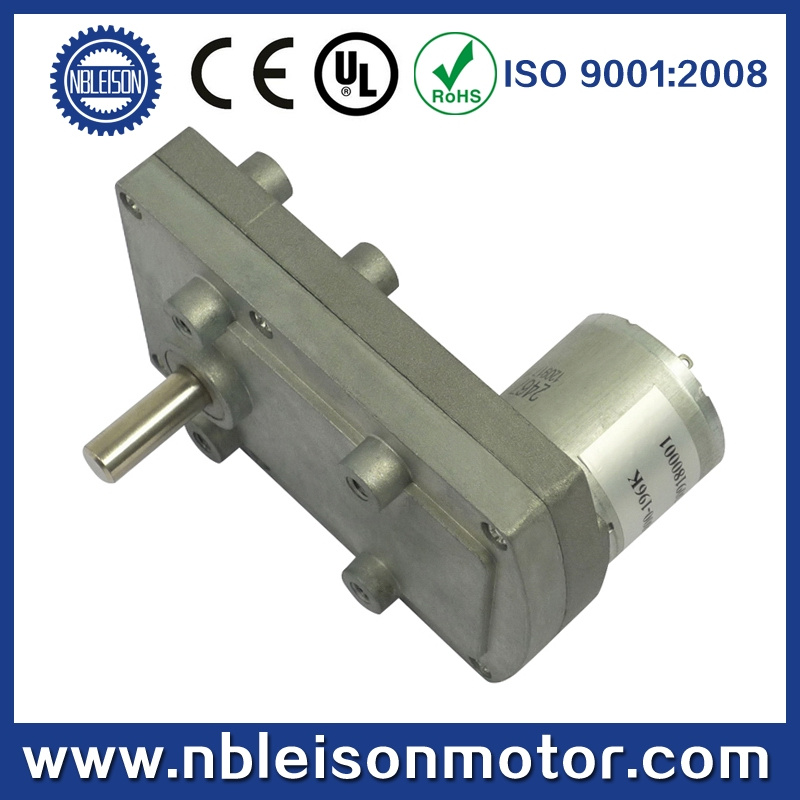

Tt-38 24 Volt DC Micro Gear Motor, Square Gearbox Motor

Name: Tt-38 24 Volt DC Micro Gear Motor, Square Gearbox Motor
Brand: all-electronics-online.com
SKU: 756537035
Availability: InStock
Rating: 4.5 (90 reviews)

Price:	US $ 6.15-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TT-38
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gear:	Metal Gear
Construction:	Permanent Magnet
Commutation:	Brush
Rotation Direction:	Reversible
Shaft:	Round, D-Cut, Hole Thread or Other Customized
Gear Type:	Spur Gear
Lubrication:	Grease
Motor Type:	Iron Core Permanent Magnet Motor
Efficiency:	Ie1
Structure And Working Principle:	Brush
Operating Speed:	Low Speed
Application:	Vending Machine, Coffee Machine

Product Description

24V DC gear motor

1). Voltage: 3V, 6V, 12V, 24V

2). Speed: 5-200rpm

3). Rated torque: 1-40kg. Cm

4). Ratio: 1: 37 to 1: 1166

5). Direction of rotation: CW/CCW

6). Packing: 55X35XH18CM 24PCS/CTN N. W. 10Kgs

7). Application: Household appliancesslot machinesmoney detector automatic actuator. Coffee machine towel disposalcoin refund devicesperistaltic pump Lighting stage lamp

8). The data sheet and price range are only for referece, Motor's price are decide by toque and ratio reduciton, Please contact with me if want more informations.

Geared motor name	Rated Volt. V	No Load		Load Torque				At Maximum Efficiency		Output power W	Number of gear trains
		Current	Speed	Current	Speed	Torque		At Maximum Efficiency
		mA	r/min	mA	r/min	Kgf· cm	N· m	Kgf· cm	N· m
TT-38246800-36K	24	≤ 45	189	≤ 280	137	1.62	0.16	6	0.59	2.2	3
TT-38246800-66K	24	≤ 45	104	≤ 280	76	2.9	0.29	10	5.98	2.2	3
TT-38246800-94K	24	≤ 45	73	≤ 280	54	4.2	0.41	12	1.18	2.2	3
TT-38246800-150K	24	≤ 45	46	≤ 280	34	6	0.59	18	1.76	2	4
TT-38276800-196K	24	≤ 45	35	≤ 280	26	7.8	0.76	24	2.35	2	4
TT-38246800-277K	24	≤ 45	25	≤ 280	18.5	11	1.08	33	3.23	2	4
TT-38246800-394K	24	≤ 45	17	≤ 280	13	15.8	1.55	48	4.7	2	4
TT-38246800-624K	24	≤ 45	10	≤ 280	7.5	24.1	2.35	72	7.06	1.8	5
TT-38127000-1166K	24	≤ 45	6	≤ 280	4.5	41.3	4.05	123	12.1	1.8	5
Packing Details	CTN size: 55X35XH18CM 24pcs/CTN N. W. 10Kgs

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
