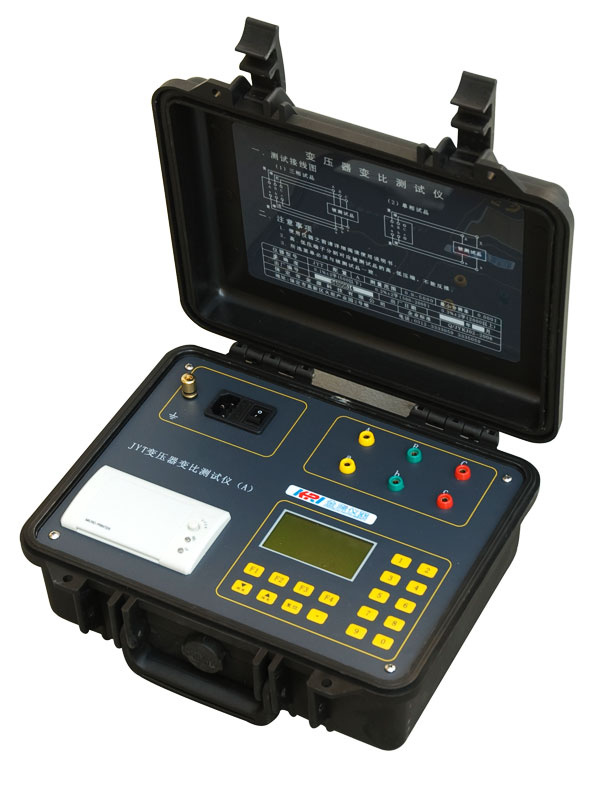

TTR Tester (JYT-A) /Turn Ratio Meter/Distribution Transformer Tester/Main Transformer Tester/Substation Transformer Tester

Name: TTR Tester (JYT-A) /Turn Ratio Meter/Distribution Transformer Tester/Main Transformer Tester/Substation Transformer Tester
Brand: all-electronics-online.com
SKU: 732401992
Availability: InStock
Rating: 4.6 (55 reviews)

Price:	US $ 1900/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JYT-A
Application:	Instrument
Phase:	Three
Brand:	Kingrun

Product Description

JYT-A TURNS RATIO TESTER FUNCTION INTRODUCTION:

1.Can visual measure value of turn ratio and joint groups.
2.Fast test speed, complete all three-phase testing in 10 seconds.
3.Can test transformer in Z shape joint.
4.CVT transformation ratio testing.
5.Permanent clock& date display function, data storage function, high and low voltage transformer protection function, protection function from transformer short circuit and interturn short circuit
6.The function of current display can judge the short circuit among circle

7.With 160V/10V output voltage switch, two output voltage can test transformer with low rated voltage and large no-load current.

JYT-A Power transformer turn ratio tester (turn ratio meter)is a professional testing equipment which is suitable for transformer service industry, substation maintenance, power transformer /distribution transformer maintenance company, 3 phase transformer testing, and other transformer testing field, Kingrun series TTR tester such as JYT-A and JYT-F tester has reliable capability and accurate testing result selected by SIEMENS and ABB transformer manufacture and transformer service companies.

JYT-A TURNS RATIO TESTER TECHNOLOGY SPECIFICATION:

Figures on display	5 Five figure
Output voltage	AC160V		AV10V
Test range	0.9-5000		0.9-200
Accuracy	<500	0.1%±2 Character
	500-2000	0.2%±2 Character	≤200	0.1%±2 Character
	>2000	0.3%±2Character
Minimum resolution	0.0001
Power supply in operation	AC220V±10%,50Hz±1Hz
Test storied data	50 Groups
Temperature in operation	-20~40ºC
Relative humidity	≤80%RH, No forming dew
Volume	Length 395mm Width 240mm Height 250mm
Net weight	6 kg
