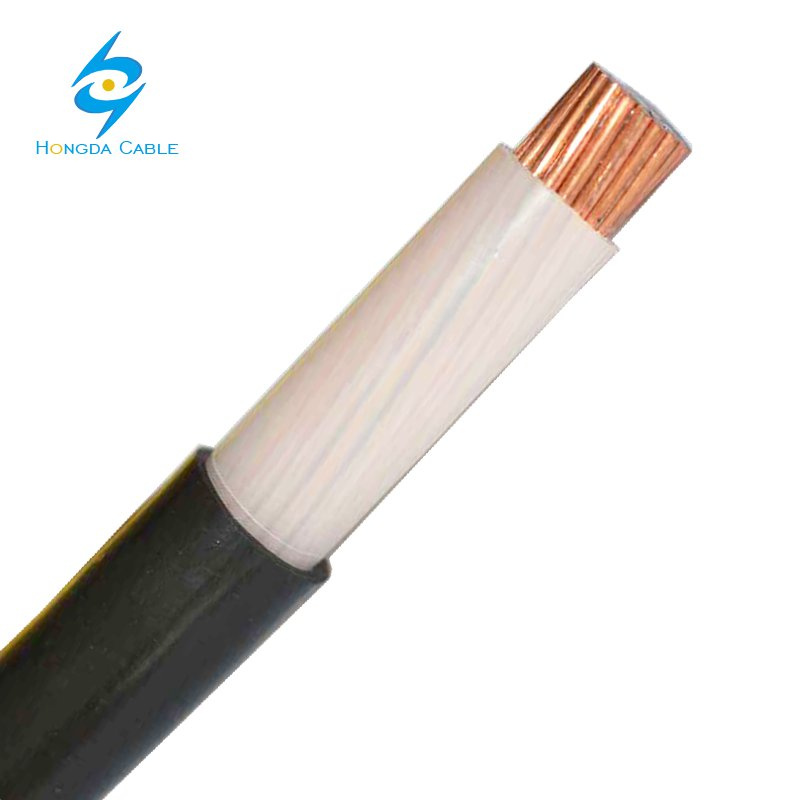

Ttu 600 Volt Kabel Thermoplastic Monopolar Copper Conductor Ttu Cable
| Price: |
US $ 0.2-76.8/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TTU wire |
| Rated Voltage: |
0.6/1kv |
| Application: |
Lighting and Power |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
PE |
| Certification: |
SGS |
| Model: |
Cu/PE/PVC |
| Brand: |
Hongda |
Product Description
TTU 600 Volt Kabel thermoplastic monopolar copper conductor TTU cable
TTU 600 Volt Kabel Application:Cable for use in general wiring applications for lighting and power. Approved for installation in conduit, duct and raceways with maxi- mum conductor temperature of 75°C in dry locations and 60°C in wet locations. Chemical, gasoline and oil resistant.STANDARD
ICEA S-95-658. NEMA WC 70.
VOLTAGE
0.6/1 kVTTU 600 Volt Kabel Conductors:
Soft bare annealed copper per ASTM B-3, Class B strand- ing per ASTM B-8 or Solid.
TTU 600 Volt Kabel INSULATION:
Polyethylene (PE)
TTU 600 Volt Kabel Insulation Jacket:
Polyvinyl Chloride (PVC)Assembly:

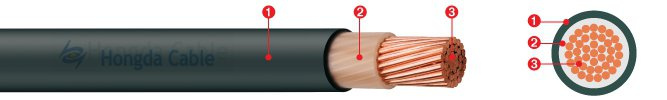

Single conductor of stranded or solid annealed copper, PE Insulation and PVC Jacket type TTU, several colors are available, surface printed. TTU 600 Volt, 75C, Copper Wire Specification SIZE
AWG / MCM | CROSS SECTION
AL
mm2 | STRANDING
Number of wire x diameter
mm. | INSULATION THICKNESS
mm. | JACKET THICKNESS
mm. | EXTERNAL DIAMETER
mm. | TOTAL WEIGHT
Kg/Km | AMPACITY
Amp. | PACKAGING |
| 14 | 2.06 | 1x1.62 | 0.81 | 0.38 | 4.14 | 31.3 | 20 | B,E,Z |
| 12 | 3.30 | 1x2.05 | 0.81 | 0.38 | 4.54 | 44.7 | 25 | B,E,Z |
| 10 | 5.26 | 1x2.59 | 0.81 | 0.38 | 5.10 | 62.6 | 35 | B,E,Z |
| 8 | 8,37 | 7 x 1,23 | 1,14 | 0,38 | 6,73 | 109,0 | 50 | B,E,Z |
| 6 | 13,30 | 7 x 1,55 | 1,14 | 0,76 | 8,45 | 170,0 | 65 | E,Z |
| 4 | 21,15 | 7 x 1,96 | 1,14 | 0,76 | 9,68 | 301,0 | 85 | E,Z |
| 2 | 33,62 | 7 x 2,47 | 1,14 | 0,76 | 11,21 | 376,0 | 115 | E,Z |
| 1 | 42,36 | 7 x 2,78 | 1,40 | 1,14 | 13,42 | 461,5 | 130 | E,Z |
| 1/0 | 53,49 | 19 x 1,89 | 1,40 | 1,14 | 14,53 | 609,0 | 150 | D,E,Z |
| 2/0 | 67,43 | 19 x 2,12 | 1,40 | 1,14 | 15,68 | 747,0 | 175 | D,E,Z |
| 3/0 | 85,01 | 19 x 2,39 | 1,40 | 1,14 | 17,03 | 915,0 | 200 | D,E,Z |
| 4/0 | 107,20 | 19 x 2,68 | 1,40 | 1,14 | 18,48 | 1132,0 | 230 | D,E,Z |
| 250 | 127,00 | 37 x 2,09 | 1,65 | 1,65 | 21,23 | 1390,0 | 255 | Z |
| 300 | 152,00 | 37 x 2,29 | 1,65 | 1,65 | 22,63 | 1641,0 | 285 | Z |
| 350 | 177,00 | 37 x 2,47 | 1,65 | 1,65 | 23,89 | 1889,0 | 310 | Z |
| 400 | 203,00 | 37 x 2,64 | 1,65 | 1,65 | 25,08 | 2137,0 | 335 | Z |
| 500 | 253,00 | 37 x 2,95 | 1,65 | 1,65 | 27,25 | 2627,0 | 380 | Z |
| 600 | 304,00 | 37 x 3,23 | 2,03 | 1,65 | 29,97 | 3144,0 | 420 | Z |
| 650 | 329,00 | 37 x 3,37 | 2,03 | 1,65 | 30,95 | 3409,0 | 440 | Z |
| 700 | 355,00 | 37 x 3,49 | 2,03 | 1,65 | 31,79 | 3593,0 | 460 | Z |
| 750 | 380.99 | 61x2.82 | 2.03 | 1.65 | 32.18 | 3854.0 | 475 | Z |
| 1000 | 506.04 | 61x3.25 | 2.03 | 1.65 | 35.94 | 5045.2 | 545 | Z |

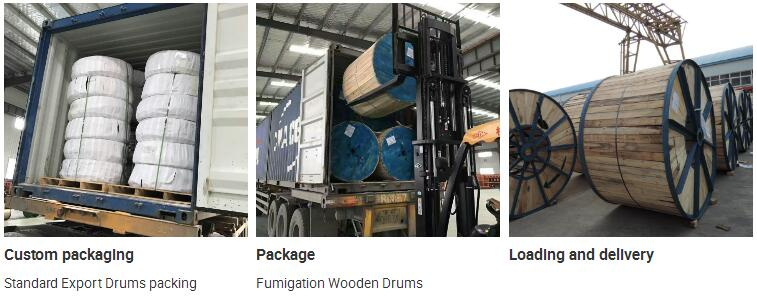

TTU 600 Volt Kabel PACKAGE:A: Roll of 100 m.
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.
Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10. We have a good reputation in the overseasFor more information, don't hesitate to call us on +86-15838290725. or send email to me as follows:
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
