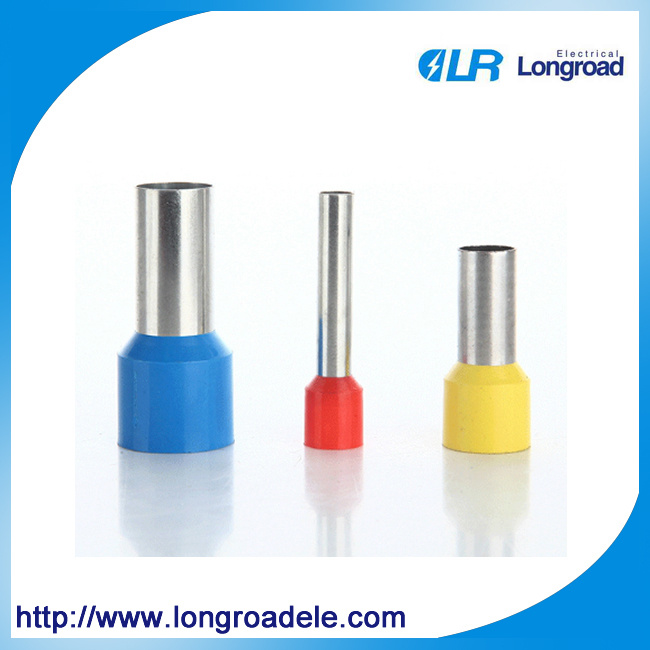

Tube Pre-Insulating Connection Terminal, Copper Terminal

Name: Tube Pre-Insulating Connection Terminal, Copper Terminal
Brand: all-electronics-online.com
SKU: 784591575
Availability: InStock
Rating: 4.4 (119 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	E
Materials:	Copper
Shapes:	Tube
Name:	Tube Pre-Insulating Terminal
Material:	Copper
Application:	Conduct Electricity
Type:	Insulated Terminal
Shape:	Tube
Brand:	Tengen

Product Description

Specifications
Working temperature limit: 105 Ui = 300V tip Material: Copper

Type	Size(mm)						Conductorsize mm ²	insulating sleeve color(on) Germanywith the (next)French with
	F	L	W	DΦ	CΦ	A.W.G
E0506	6.0	12.0	2.6	1.3	1.0	#22	0.5	Orange White
E0508	8.0	14.0
E0510	10.0	16.0
E7506	6.0	12.4	2.8	1.5	1.2	#20	0.75	White Blue
E7508	8.0	14.6
E7510	10.0	16.4
E7512	12.0	18.4
E876	6.0	12.4	3.0	1.7	1.4	#18	1.0	Yellow Red
E878	8.0	14.6
E1010	10.0	16.4
E1012	12.0	18.4
E1508	8.0	14.6	3.5	2.0	1.7	#16	1.5	Red Black
E1510	10.0	16.4
E1518	18.0	24.4
E2508	8.0	15.2	4.0	2.6	2.3	#14	2.5	Blue Gray
E2512	12.0	19.0
E2518	18.0	25.0
E4009	9.0	16.5	4.4	3.2	2.8	#12	4.0	Gray Orange
E4012	12.0	19.5
E4018	18.0	25.5
E6012	12.0	20.0	6.3	3.9	3.5	#10	6.0	Black Green
E6018	18.0	26.0
E10-12	12.0	21.5	7.6	4.9	4.5	#7	10.0	Milky brown(brown) color
E10-18	18.0	27.5
E16-12	12.0	22.2	8.8	6.2	5.8	#5	16.0	Green white
E16-18	18.0	28.2
E25-16	16.0	29.0	11.2	7.9	7.5	#4	25.0	Brown(brown) colorblack
E25-22	22.0	35.0
E35-16	16.0	30.0	12.7	8.7	8.3	#2	35.0	Dust-color
E35-25	25.0	39.0
E50-20	20.0	36.0	15.3	10.9	10.3	#1	50.0	Olive
E50-25	25.0	41.0
E 70 - 20	20.0	37.0
E 150 - 32	32.0	57.6
