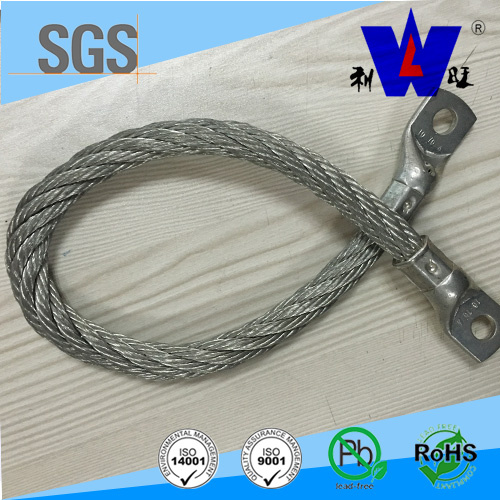

Tubelar Busbar with Pure Copper, Copper Busbar Use for Ground Wire

Name: Tubelar Busbar with Pure Copper, Copper Busbar Use for Ground Wire
Brand: all-electronics-online.com
SKU: 805178835
Availability: InStock
Rating: 4.4 (122 reviews)

Price:	US $ 5-10/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Environmental Certification:	ISO14001
Quality Certification:	ISO9001
Material Type:	Aluminum
Type:	Dual Hole Terminals
Material:	Copper
Application:	Conduct Electricity
Certification:	Ts16949
Brand:	Liwang

Product Description

Flexible Connection Busbar Product Description

Distribution power supply device is the main power supply circuit (copper row aluminum row called busbar), each branch line (row) by busbar on lead. Busbar is refers to the power supply system, electric cabinet in the total system switch and the shunt circuit switch the connection of copper row or aluminum row. Surface of insulation processing. Main function is to do for conductor.

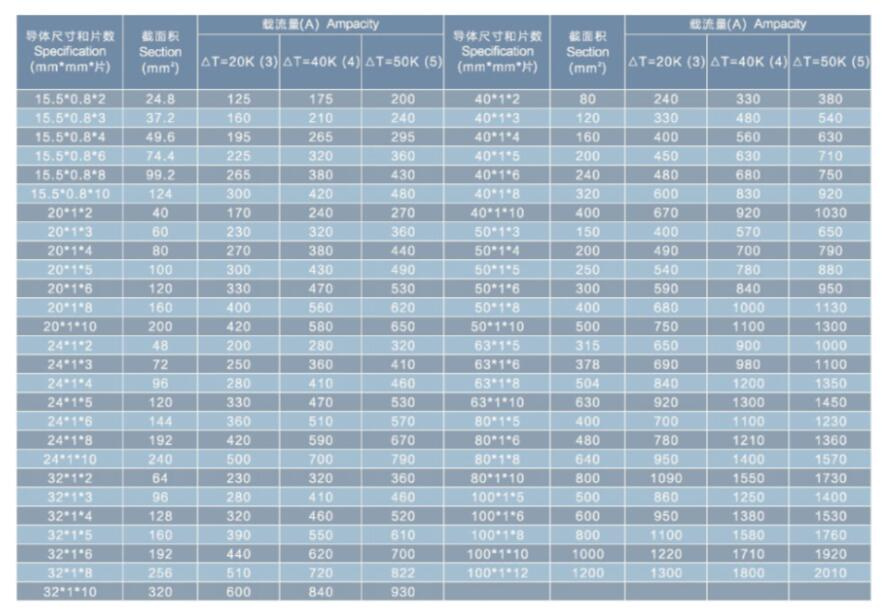

Spec. for Busbar:

Structure Composition:

1.Conductor:
Insulated flexible busbar conductor use T2 soft state copper belt, the soft state can devide to bare copper and tin plated copper
2.Insulation layer:
Flexible insulating busbar of insulating layer has specialpolyvinyl chloride (PVC) and thermoplastic elastomer (TPE) of two kinds of materials. The characteristics of TPE with low smoke and no halogen.

Production standards:
Flexible insulating busbar don't have a special standardin the world, The United States borrow UL758 electronic line standards for production certification,China's enterprises refer to GB/T5023 insulation cable standard and UL758 electronic line standard.

Product features:
1.Easy processing and forming
2.High load flow
3.Easy installation

Application:
Because ofthe excellent characteristic of insulated flexible busbar,it has become the first choice for electrical wiring and gradually replace the cable in the application of electrical wiring,the hard busbar of non main structure will gradually be replaced with flexible busbar.

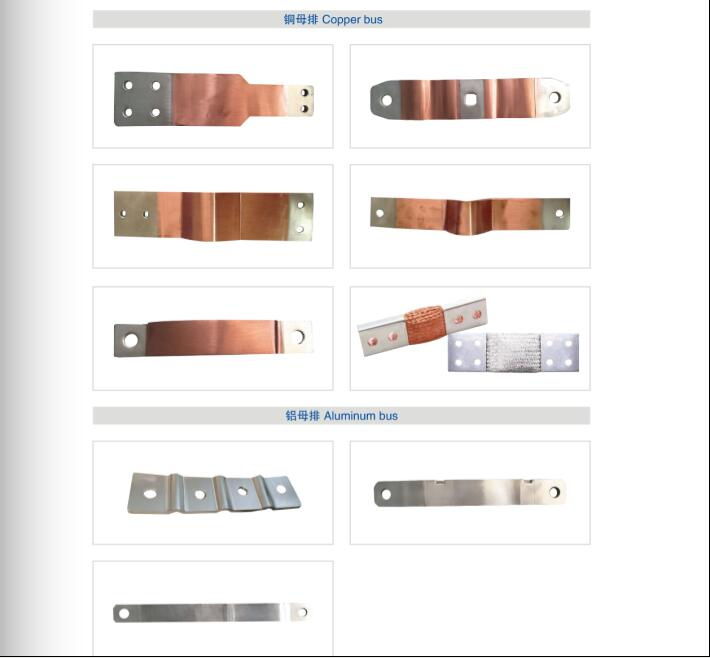

Pictures to show the appreance we have supplied before:

Main Customers:

Packing and Shipping:

Please contact me for more details if you have reference inquiries, different appreance is also customied designed by our engineers!

Coco Wen
Mob:8613915084415
Tel:86-519-83280538-8017        Fax:86-519-83295710

Welcome to provide us your specification, we will submit the best quotation shortly.

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
