Tubular Gel Battery

Name: Tubular Gel Battery
Brand: all-electronics-online.com
SKU: 835320475
Availability: InStock
Rating: 4.3 (111 reviews)

Price:	US $ 10-20/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GEL-002
Weight:	21kg
Capacity:	800ah
Terminal:	17
Usage:	Electric Bicycle/Tricycle
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Type:	Lead Carbon

Product Description

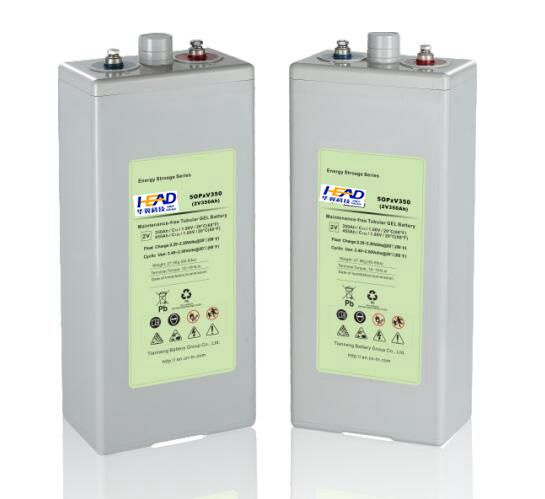

Tubular GEL Battery

Product Details

FEATURES

20 years design life at floating condition
Wide operating temperature range from -40°C to +60°C
Tubular positive plate with prolonged cycle life
Fumed silica gel electrolyte
Lead calcium die case grid with improved corrosion resistance ability
Low self-discharge rate and long shelf life
Excellent deep discharge recovery capability

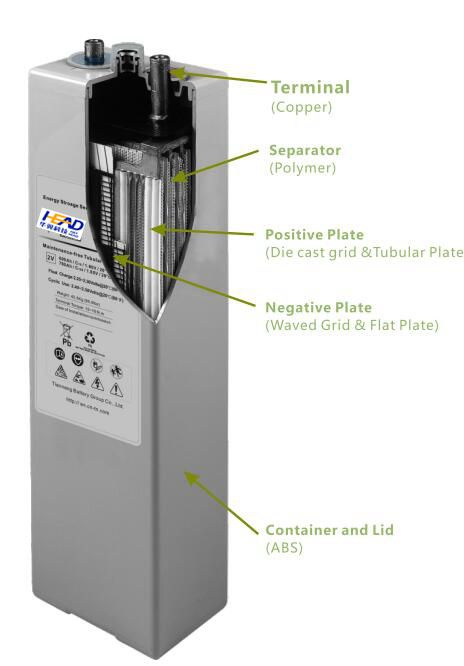

Construction
Positive plate - Tubular plate with die cast high tin / low calcium alloy grid and highly porous gauntlets retain the active material
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency and pasted plates designed to have service lives consistent with the positive plates
Separator - Leaf shape polymer separator with extremely high porosity and low internal resistance
Electrolyte - Dilute high purity sulphuric acid with fumed silica gel.
Pillar seal - 100% factory test, proven two layers epoxy resin seal.
Relief valve - Complete with integrated flame arrestor.

Application
Renewable energy system
Hybrid solar power system
Uninterrupted Power Supply (UPS)
Communications and electric equipment
Emergency lighting equipment
Fire alarm and security systems
Robots, control equipment, and other factory automation equipment
Emergency power supply (EPS)
Various power toys and hobby equipment
Lighting equipment

Model	Nominal Voltage (V)	Nominal capacity C10 (Ah) 1.80Vpc/25°C	Nominal capacity C20 (Ah) 1.80Vpc/25°C	Dimension (mm)				Weight (kg)	Dimension (inch)				Weight (lbs)	Terminal
Model	Nominal Voltage (V)	Nominal capacity C10 (Ah) 1.80Vpc/25°C	Nominal capacity C20 (Ah) 1.80Vpc/25°C	L	W	H	TH	Weight (kg)	L	W	H	TH	Weight (lbs)	Terminal
4OPzV150	2	150	159	124	206	355	390	14.7	4.9	8.1	14.0	15.4	32.4	I7
4OPzV200	2	200	212	103	206	355	390	18	4.1	8.1	14.0	15.4	39.7	I7
5OPzV250	2	250	265	124	206	355	390	22	4.9	8.1	14.0	15.4	48.5	I7
6OPzV300	2	300	318	145	206	355	390	26	5.7	8.1	14.0	15.4	57.3	I7
5OPzV350	2	350	371	124	206	471	506	29	4.9	8.1	18.5	19.9	63.9	I7
6OPzV420	2	420	445	145	206	471	506	34	5.7	8.1	18.5	19.9	75.0	I7
7OPzV490	2	490	519	166	206	471	506	39	6.5	8.1	18.5	19.9	86.0	I7
6OPzV600	2	600	636	145	206	646	681	46	5.7	8.1	25.4	26.8	101.4	I7
8OPzV800	2	800	848	191	210	646	681	64.5	7.5	8.3	25.4	26.8	142.2	I7
10OPzV1000	2	1000	1060	233	210	646	681	78.5	9.2	8.3	25.4	26.8	173.1	I7
12OPzV1200	2	1200	1272	275	210	646	681	93	10.8	8.3	25.4	26.8	205.0	I7
12OPzV1500	2	1500	1590	275	210	796	831	115	10.8	8.3	31.3	32.7	253.5	I7
16OPzV2000	2	2000	2120	399	214	772	807	155	15.7	8.4	30.4	31.8	341.7	I7
20OPzV2500	2	2500	2650	487	212	772	807	196	19.2	8.3	30.4	31.8	432.1	I7
24OPzV3000	2	3000	3180	576	212	772	807	232	22.7	8.3	30.4	31.8	511.5	I7

Wuhan H&Y Technology excels at designing, manufacturing and

Supplying fully-integrated battery systems that enable our customers to take new products from concept to commercialization. For EV, PHEV, and HEV systems, in commercial applications, H&Y Tech leverages extensive experience to build robust systems with high power, excellent safety and long life. We provide complete system design and integration services and develop optimized systems that meet our customer's performance requirements.
