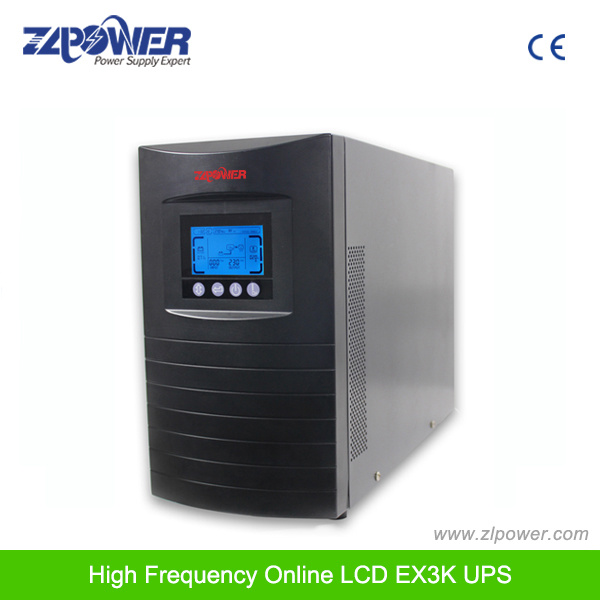

Ture Online UPS 120V 220V LCD LED High Frequency Single Phase (EX1-3K TX1-3K)

Name: Ture Online UPS 120V 220V LCD LED High Frequency Single Phase (EX1-3K TX1-3K)
Brand: all-electronics-online.com
SKU: 707797855
Availability: InStock
Rating: 4.9 (134 reviews)

Price:	US $ 100-300/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	EX1K~EX3KL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	1kVA~3kVA
Input Voltage Range:	60~138V/115~300V
Frequency:	46~54Hz/56~64Hz
Input Phase:	Single Phase with Ground
Output Power Factor:	0.8
AC Mode Efficiency:	85%
Battery Mode Efficiency:	83%
Communication:	RS232
USB, Snmp:	Optional
Transfer Time:	Zero
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Zlpower

Product Description

Ture online UPS 120V 220V 1kVA 2kVA 3kVA LCD LED high frequency single phase
Application: EX Series 1kVA~3kVA High frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
Key Features:
Large Blue Ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
Set Output Voltage, Frequency parameter and bypass function on the display.
Advanced MCU microprocessor control technology, ensure long life reliability.
Wide input voltage range, Zero transfer time
Excellent Protection against over voltage, over load, over current, over charge and so on.
Input L and N lines reverse wiring detection, Auto start when AC back.
DC start function, Input PFC revise function.
Humanization bypass output, can be adjustable.
Smart RS232 communication with monitoring software
Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
Strong antijamming capability Lightning, surge, short circuit, Network/fax/modem surge protection.

UPS Model		EX1K	EX1KL	EX2K	EX2KL	EX3K	EX3KL
Capacity		1000VA/700W		2000VA/1400W		3000VA/2100W
Input	Voltage	(115~300) VAC
	Frequency	46~54Hz/56~64Hz (Adjustable via LCD panel)
Output	Voltage	220/230/240 (1± 1%) VAC (Adjustable via LCD panel)
	Frequency	50/60Hz (Adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode(AC Range 46~54Hz); Battery Mode: 50Hz (1± 0.2%) 60Hz AC Mode: Follow AC Mode(AC Range56~64Hz); Battery Mode: 60Hz(1± 0.2%)
Output Wave Form		Sine Wave
Back-up Time	Full Load	≥ 5′	Depends on the capacity of the external battery bank	≥ 9′	Depends on the capacity of the external battery bank	≥ 5′	Depends on the capacity of the external battery bank
	Half Load	≥ 14′		≥ 21′		≥ 15′
Battery Nominal DC Voltage		36VDC		96VDC
Transfer Time		0ms
Overload Capacity		110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms
Communications		RS-232+Intelligent Slot
Environment	Temperature	0C~40C
	Humidity	15%~90%
Dimensions (WDH)mm		145400220		192460340
Net Weight (Kg)		14	7	34	13.5	34.5	14
