Ture Pure Sine Wave High Frequency Online UPS Rack Mount LCD Display

Name: Ture Pure Sine Wave High Frequency Online UPS Rack Mount LCD Display
Brand: all-electronics-online.com
SKU: 677334845
Availability: InStock
Rating: 4.9 (26 reviews)

Price:	US $ 112/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RM 1k-RM10k
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	1-6kVA
Input Voltage:	220/230/240(1± 1%)VAC
Input Voltage Range:	(115~300)VAC
Output Voltage:	220/230/240(1± 1%)VAC
Wave Form:	Pure Sine Wave
Nanme:	Pure Sine Wave UPS
Usage:	Power Supply
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Application:	Server, Date-Center, Critical Networking Device,
Brand:	Zlpower

Product Description

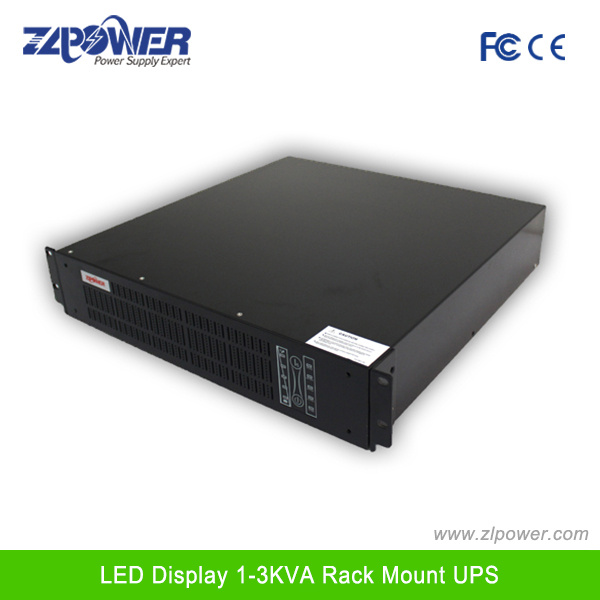

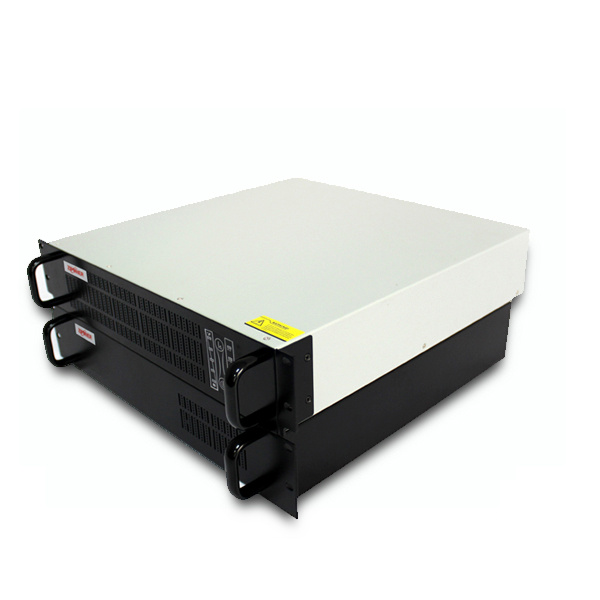

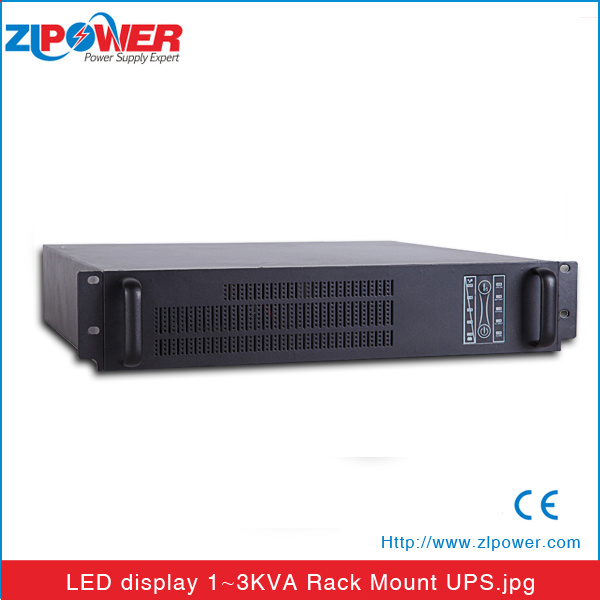

Ture Online UPS Rack mount LCD display
Application: Server, Date-center, Critical networking device, Sensitive Electronic equipment, Tele```

True on line Double conversion technology with advanced microprocessor control
Wide input range
Sero transfer time
Protection against all types of power problems
Self-test while start of the UPS
Site wiring fault wanrning
On battery power-on function
Smart RS232 Cimmunication interface
Interlligent Slot availabe

Model		T1KR	T1KRL	T2KR	T2KRL	T3KR	T3KRL	T6KRL
Capacity		1000VA/800W		2000VA/1600W		3000VA/2400W		6KVA/4200W
Input	Voltage	(115~300)VAC						(176~276)VAC
	Frequency	46~54Hz/56~64Hz
Output	Voltage	220/230/240(1± 1%)VAC
	Frequency	50/60Hz(Adjustable) 50Hz AC Mode: Follow AC Mode(AC Range 46~54Hz); Battery Mode: 50Hz(1± 0.2%)60Hz AC Mode: Follow AC Mode(AC Range 56~64Hz); Battery Mode: 60Hz(1± 0.2%)
Output Wave Form		Sine Wave
Back-up Time	Full Load	≥ 5′	Depends on the capacity of the external batteries bank	≥ 9′	Depends on the capacity of the external batteries bank	≥ 5′	Depends on the capacity of the external batteries bank	Depends on the capacity of the external batteries bank
	Half Load	≥ 14′		≥ 21′		≥ 15′
Battery Nominal Voltage		36VDC		96VDC				240VDC
Transfer Time		0ms
Overload Capacity		110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms						105%~130% 10min, over 150%1min
Communications		RS-232+Intelligent Slot
Operating Environment	Temperature	0-40C
	Humidity	15%~90%
Dimensions mm		482.645088						482.6600130
Net Weight(KG)		16	9	10.5	11.5	11	12.5	19.5

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
