TUV Approval 65-80V Output 12W 150mA Non-Isolated LED Driver

TUV Approval 65-80V Output 12W 150mA Non-Isolated LED Driver
Price: US $ 1.95-2.2/Piece
Min Order: 300/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: PLD012-1SCH72-150
Usage: Digital Products
Output Type: Single
Driving Method: LED Constant Current
Circuit Structure: Conventional Step-down Transformer
Power Supply Voltage: 180VAC-264VAC
Brand: Fsp-Powerland

Product Description

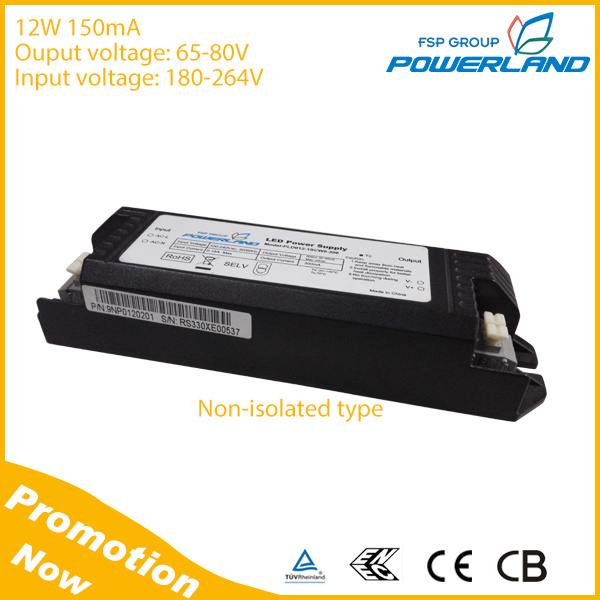

CE TUV Approval 12W 150mA Constant Current Led Driver
180-264Vac Input
Non-Isolated

 Powerlander's EU AC Non-isolated series
 PLD012-1SCH72-150
 offers 12W constant current drivers with 180~264Vac input.
 The output current of this series is up to 150mA, and designed for indoor applications.


 Applications
 Indoor LED lights
 Downlights, spotlights, LED panels

Features

50,000 hours lifetime at 60ºC Tcase
3 years warranty at 60ºC Tcase
Constant current output
Safety according to EN61347-1
EMC according to EN55015
Lightning, OVP, SCP, & Open Circuit Protection Electrical Specification

Electrical Specifications
Model

PLD012-1SCH72-150

Output Voltage

65~80V

Output Current

0.15A

Output Power

12W

Max. Current Ripple

150mA

Voltage Range

180~264Vac

Frequency Range

47~63Hz

Max. Input Current @ 230Vac

0.08A

Max. Input Power

15W

Min. Power Factor

 >0.90 @277Vac & 100% load

Efficiency

92%

Max. Open Circuit Voltage

95V

THD

<25% @ 230Vac & 90~100% load

Protections

OVP, OCP, SCP

Environmental Protection

IP20

Working Temperature

-20~+50ºC

Max. Case Temperature

80ºC

Surge Protection

1kV/2kV

Agency Approbations

EN61347-1

Electromagnetic Compliance

EN55015

Ansi Surge Type

1.2/50μs Combination Wave (w/t 2Ω)

Isolation

Primary to Secondary: 3750Vac / 10mAMax / 60seconds

Dimension

127x40x29 mm

Mounting Length

137 mm

Overall Length

150 mm

Weight

0.11 kg

Life Time

50,000 hours @ full load, 60ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

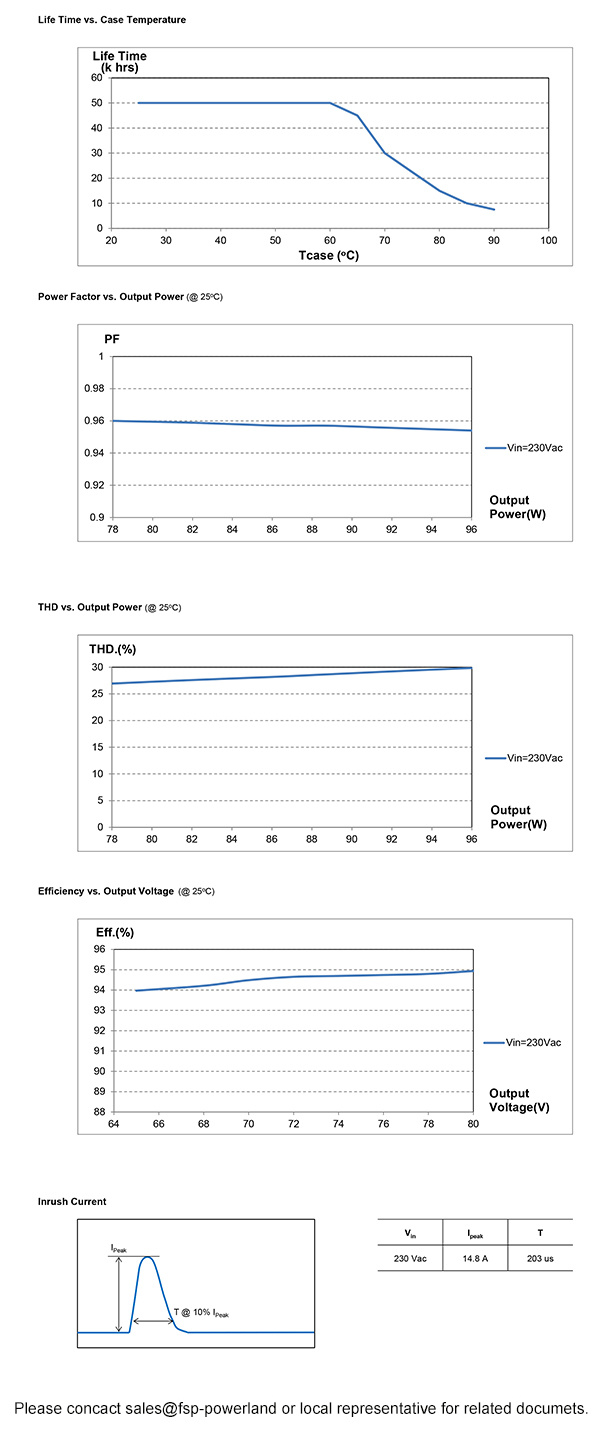

Performance Characteristics (Test wtih PLD100-1SCH72-1200)



Glance at Powerland


FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
