TUV Approval Solar Y Branch 1 to 3 Connector with Cable for Solar Power System

Prod Model:	LJ0156
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	TUV 1000V DC/UL 600 VDC
Rating Current:	22A
Diia.of Pin Or Socket:	4mm
Pollution Degree:	2
Wire Size Rnage:	2.5/4/6mm2(14wg/12AWG /10AWG)
Protection Class:	Class 2
Degree Of Protection IP:	IP67 (IEC 60529)
Connector Material:	PPO
Length:	31cm
Be Customized:	Yes
Type:	Socket Terminals
Material:	Copper
Application:	Conduct Electricity
Brand:	Leader

Product Description

Product description

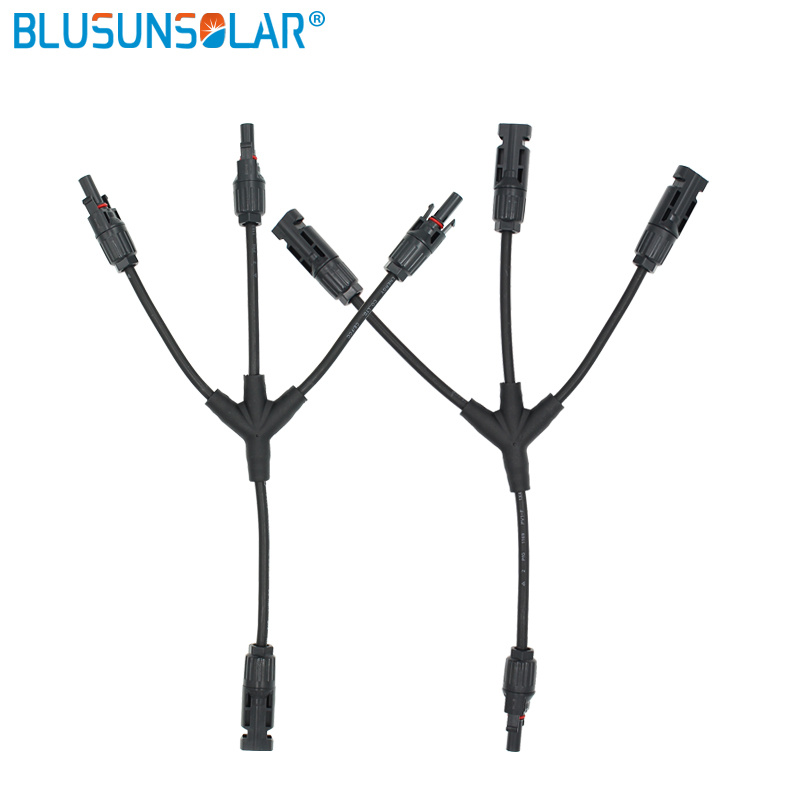

 TUV approval Solar Y Branch 1 to 3 Connector MC4 3 in 1 Branch Connectors with Cable for Solar Power System LJ0156

1. Photovoltaic branch for safe and simple parallel or series-parallel connection of PV-Module.
2. Due to highly robustness, UV resistance, the touch protection a high grade connection is guaranteed for many years.
3. Acc. To DIN V VED 012-3/12.6, UL1703 standard.
4.Removal will not cause any harm to plugs.
5.Load capability with big current and high voltage
6.Good ability of resistance and machine shocking
7.Lower contact resistance

Rated Current	22A(2.5mm2),30A(4mm2,6mm2)
Withstanding Voltage	1000V DC(TUV),600V(UL)
Contact Resistance	≤5mΩ
Dia. of pin or socket	4mm
Protection Class	Class II
Temperature Range	-40° C ~ +85°C
Protection Degree	IP2X,unmated;IP67,mated
Wire Size Range	2.5/4/6mm2(14AWG,12AWG,10AWG)
Un mating Force	200 Newton
Insulation Material	PC/PA
Contact Material	Copper,silver plated
Flame Class	UL94-V0 or UL94-5VA
Locking system	Snap in
