TUV Approved 1500V 30A Mc4 Connector for 10mm 8AWG PV Cable

Name: TUV Approved 1500V 30A Mc4 Connector for 10mm 8AWG PV Cable
Brand: all-electronics-online.com
SKU: 776202425
Availability: InStock
Rating: 4.7 (112 reviews)

Price:	US $ 2.15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PV solar connectors
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulation Material:	PPO
Rated Voltage:	TUV 1500 DC/ UL 600V DC
Test Voltage:	6kv(50Hz, 1min)
Contact Material:	Copper, Tin Plated
Contact Resistance:	Less Than 0.5 M Ohm
Degree Of Protection:	IP67
Pollution Degree:	2
Protection Class:	Class II
Flame Calss:	UL94-V0
Ambient Temperature Range:	-40 ~ + 90.
Type:	Socket Terminals
Material:	Copper
Application:	Solar Power System
Certification:	TUV
Brand:	Sy.PV

Product Description

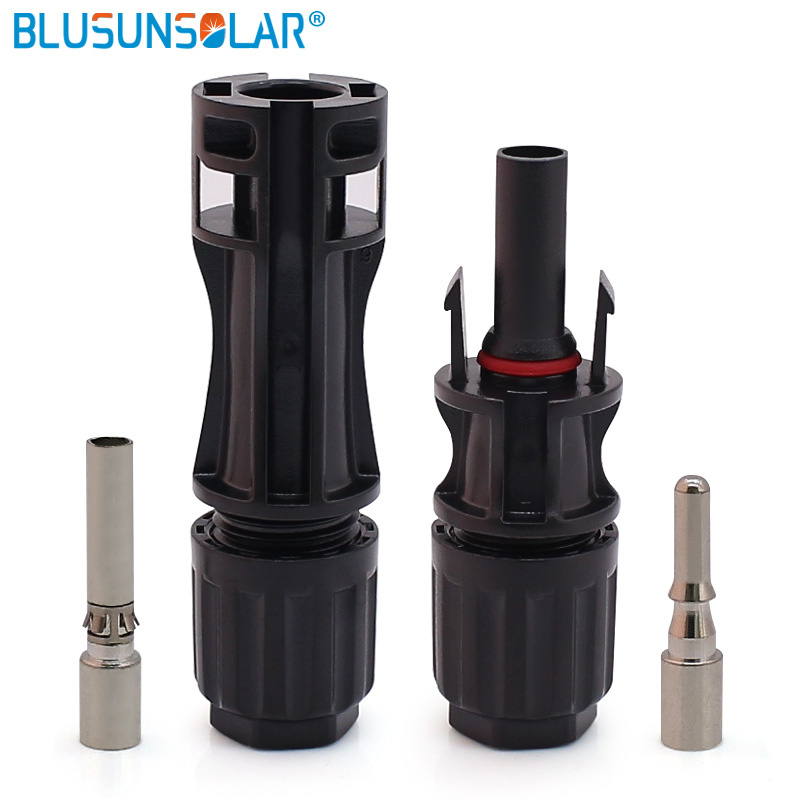

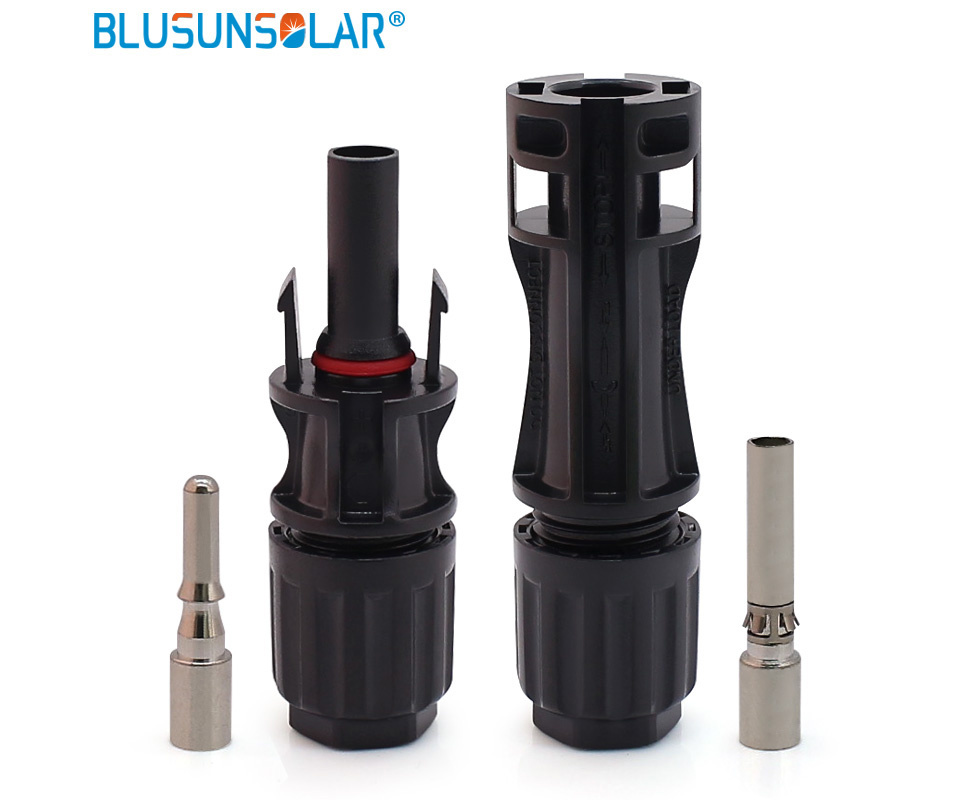

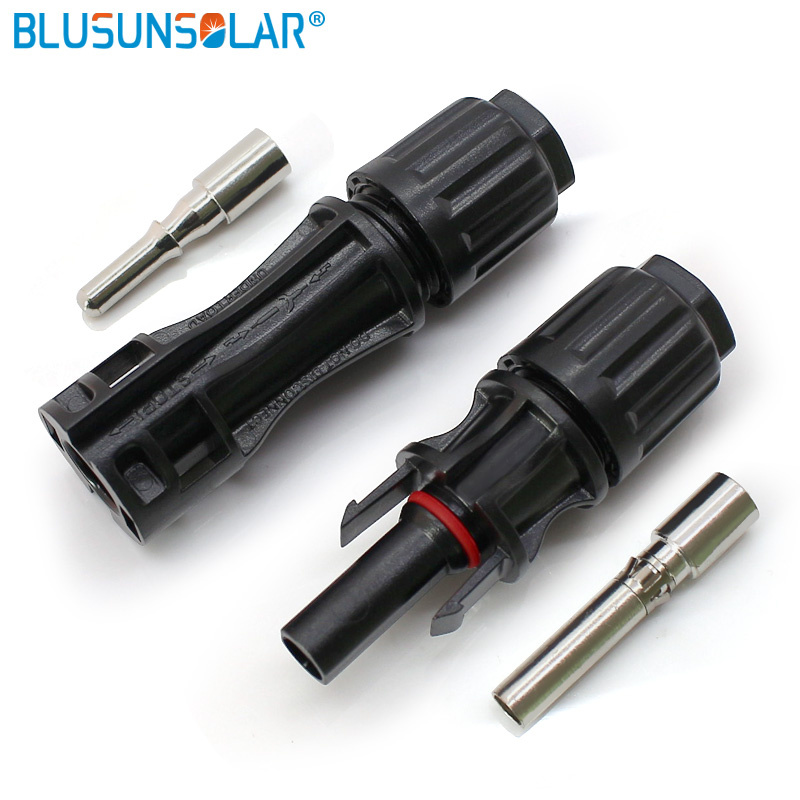

High quality TUV approved 1500V 30A MC4 Connector for Solar Panel Connector UV Resistant

MC4 connector more details:

Complete connector include	Male house, female house, positive and negative terminal
Insulation material:	Polycarbonate
Contact material	Copper, Tin plated
Contact resistance	Less than 3m oHm
Fixed form	HFW
Rated current	30A
Rated voltage	1500V
Test voltage	6000 V (50Hz, 1Min)
Degree of protection	IP67
Safety class	2
Flame calss	UL94-V0
Insertion force	Less than 50N
Withdrawal force	More than 300N
Ambient temperature range	-40 degree - +90 degree
Suitable cable	10mm2 /AWG8

shipping details:
1.We will ship item to worldwide by DHL, FEDEX,TNT,UPS,EMS,AIR,SEA.
2.Item will be shipped out within 3 business days after cleared payment being received. After we deliver goods, we will give you tracking number.
3.Please leave us your phone number after payment and double check your shipping address,that is very helpful for shipping.
4.In order to ensure you receive you order tax free upon import, we will declare it as a 'GIFT' with a lower value.
5.This lower price does not reflect the total price you paid or the market value of the product and may not apply to countries with different tariff rules.
6.Any import charges or fees are the buyer's responsibility.
