TUV Approved 40W 1.0A Constant Current EU LED Driver

Name: TUV Approved 40W 1.0A Constant Current EU LED Driver
Brand: all-electronics-online.com
SKU: 798491555
Availability: InStock
Rating: 4.3 (83 reviews)

Price:	US $ 2.75-4.2/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD040-1SCH684 -1000
Output Power:	40W
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	180~264VAC
Pack Sealing Size:	127X40X29 mm
Brand:	Fsp-Powerland

Product Description

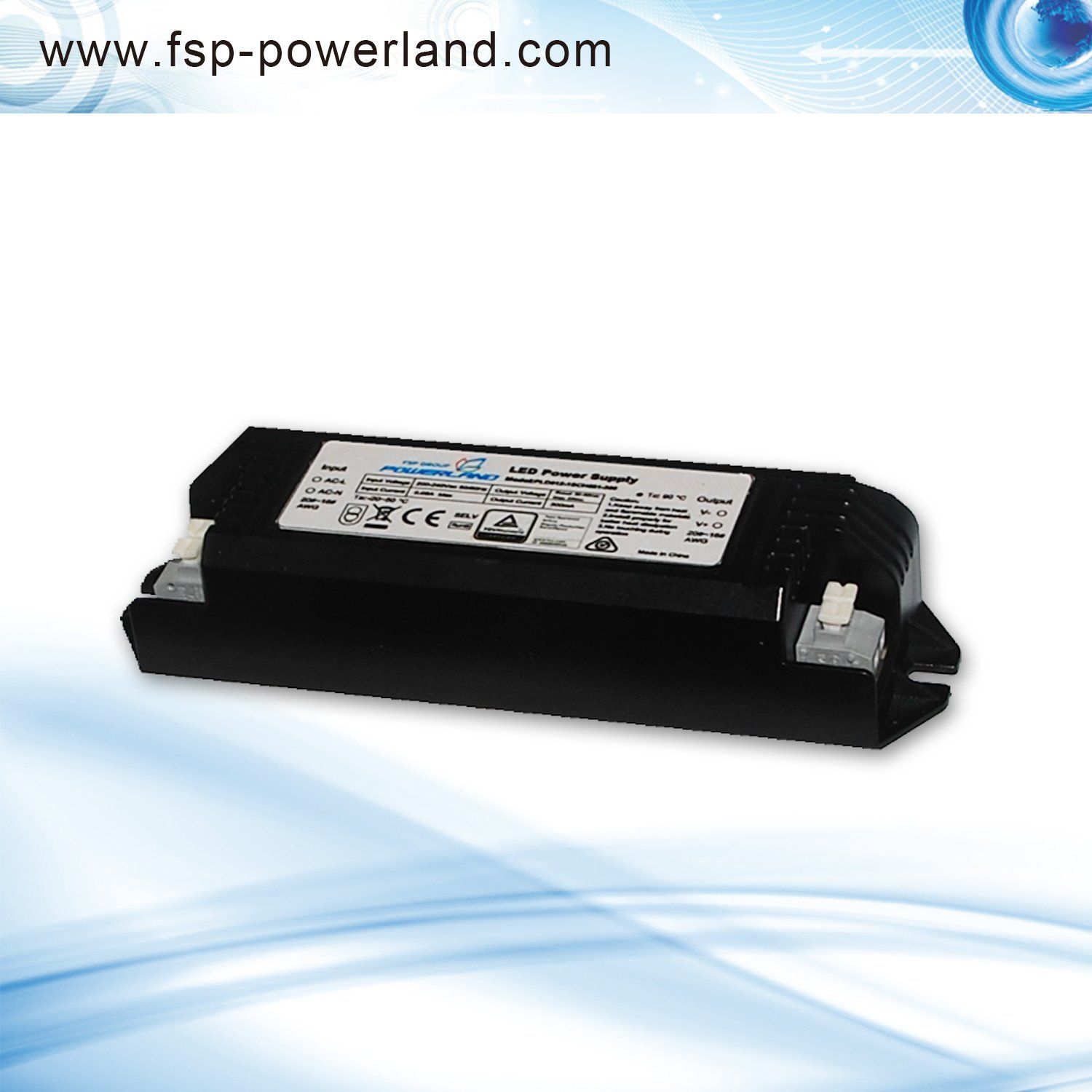

TUV Approved 40W 1.0A Constant Current EU LED Driver

PLD040-1SCH684-1000 offers 40W constant current drivers with 180~264Vac input.
The output current of this series is up to 1.0A, and designed for indoor applications.

Applications
Indoor LED lights

Downlights, spotlights, LED panels

Features
50,000 hours lifetime at 60ºC Tcase

3years warranty at 60ºC Tcase

Constant current output

Safety according to EN61347-1

EMC according to EN55015

Lightning, OVP, SCP, & Open Circuit ProtectionElectrical Specification

Electrical Specifications

Model	PLD040-1SCH684-1000
Output Voltage	30~40V
Output Current	1.0A
Output Power	40W
Max. Current Ripple	800mA
Voltage Range	180~264Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.27A
Max. Input Power	47W
Min. Power Factor	0.93
Efficiency	90%
Max. Open Circuit Voltage	55V
THD	<20% @ 230Vac & 80~100% load
Protections	OVP, OCP, SCP
Environmental Protection	IP20
Working Temperature	-20~+50ºC
Max. Case Temperature	80ºC
Surge Protection	1kV
Agency Approbations	EN61347-1
Electromagnetic Compliance	EN55015
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	127x40x29 mm
Mounting Length	137 mm
Overall Length	150 mm
Weight	0.13 kg
Life Time	50,000 hours @ full load, 60ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

Performance Characteristic

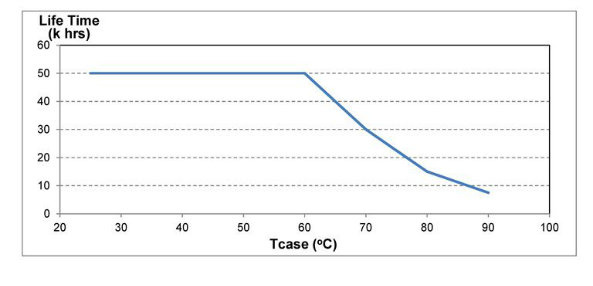

Life Time vs. Case Temperature

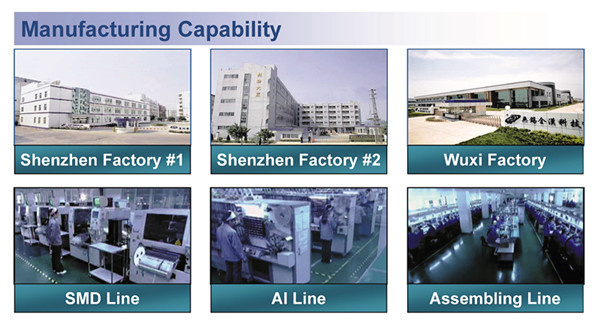

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
