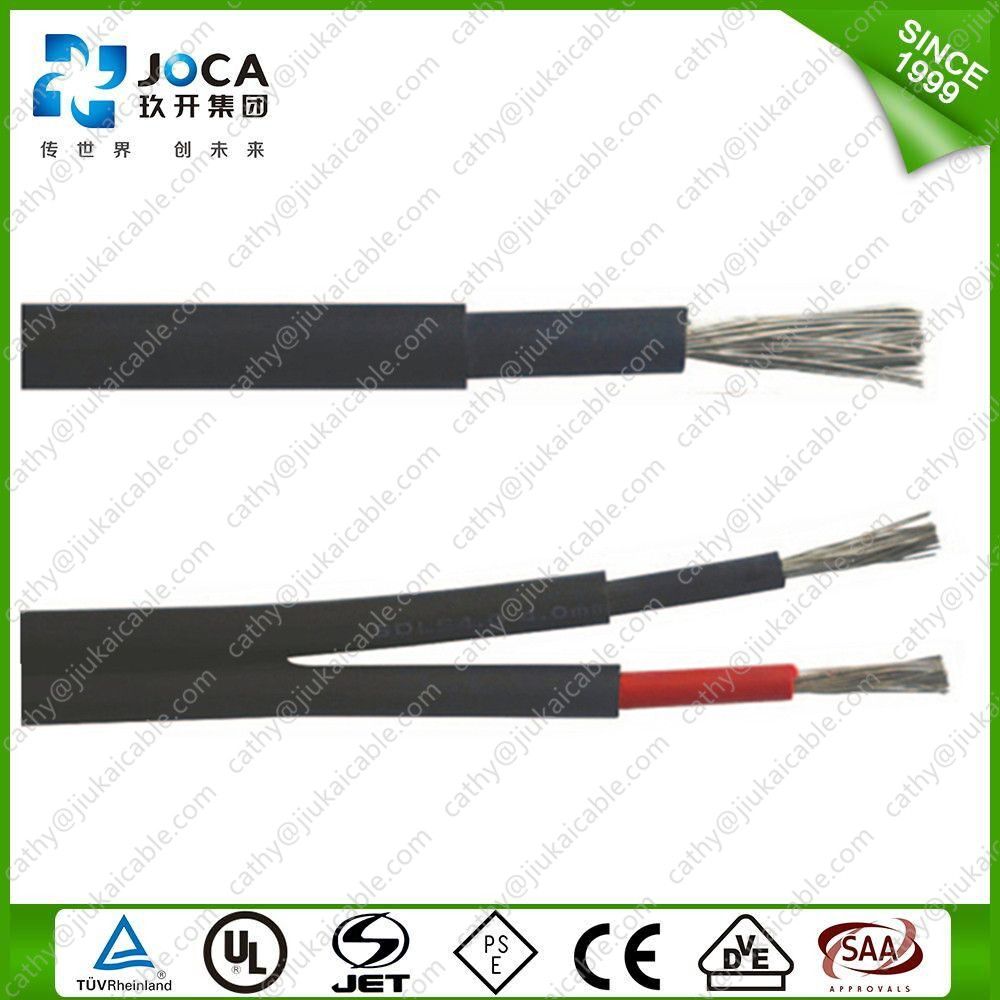

TUV Certificate PV1f Solar 4mm2 6mm2 PV Cable

Prod Model:	PV1-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	AC 600/1000V, DC 1000/1800V
Test Voltage:	6500V
Temperature:	Environment +90degree, Cable 120degree
Name:	PV1f Solar PV Cable; Photovotaic Cable
Conductor:	Tinned Copper
Insulation:	Xlpo
Sheath:	Xlpo
Application Area:	Solar Power System
Color:	Any
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Sheath Material:	XLPE
Model:	PV1-F
Brand:	Jiukai/OEM

Product Description

TUV Certificate PV1f Solar 4mm2 6mm2 PV Cable


Product Description


Especially for the connection between Solar power generation device connector and connection of inverter, under the condition of different climate outdoor installation, and can adapt to the dry and wet indoor working environment.
High heat-resistant flame retardant, flame retardant from ectinguish comply with IEC60332-1-2+EN60332-1-2.
Halogen-free,Not contain hydrochloric acid comply with EN50627-2-1
Not contain fluorine comply with EN60684-2
Climate resistance


Construction	Conductor Construction	Conductor ø	Outer ø	Resistance Max.	Current Carring Capacity
n×mm²	n/m	mm	mm	Ω/Km	A
1×1.5	30/0.25	1.58	4.9	13.3	30
1×2.5	50/0.25	2.02	5.45	7.98	41
1×4.0	56/0.3	2.30	6.1	4.75	55
1×6.0	84/0.30	3.42	7.2	3.39	70
1×10.0	142/0.30	4.56	9	1.95	98
1×16.0	228/0.30	5.60	10.2	1.24	132
1×25.0	361/0.30	6.95	12	0.795	176
1×35.0	525/0.30	8.74	13.8	0.565	218
1×50.0	720/0.30	9.20	14.8	0.393	280
1×70.0	988/0.30	11.00	16.9	0.277	350
1×95.0	1349/0.30	12.50	18.7	0.21	410
1×120	1691/0.30	14.20	20.7	0.164	480



Conductor	Tinned Copper,according to VDE0295/IEC60228,Class5
Insulation	Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Sheath	Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Nominal Voltage	AC 600/1000V DC 1000/1800V
Characteristic	Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance
Sheath Color	Black or as per customer's requeit
Temperature Rating	45°c upto +125°c -40°F upto +257°F
Ambient temperature	25years(TUV) -40°c upto +90°c -40°F upto +194°F
Max.Short circuit temperature	280°c,+536°F
Bending Radius	Fixed installation>4X Occasionally moved>5X
Applications	Especially for the connection between Solar power generation device connector and connection of inverter,Under the condition of different climate outdoor installation,and can adapt to the dry and wet indoor working environment

Packaging & Shipping

HS CODE	8544492100
Packaging Details	1. Hollow/Plastic/Wooden Drum: 100M/Drum,500M/Drum,1000M/Drum.
	2. According to customer requirement.
Delivery    Detai	1: 5-10days if the goods are in stock
	2: 15-20 days if the goods are not in stock, it is according to quantity.
	3: This is a matter of negotiation.

Certification



ISO9001:2008	No:082737
TUV	No: R50203088
UL	No: E480012

Company Information

Shanghai Jiukai Wire & Cable Co., Ltd
Our company is a national high and new tech enterprise. We consistently dedicate to the R&D, production and sales of wires and cables. We are professional HV&LV power cables, LV electrical wires and security cables in China. We introduce the most advanced automatic production lines, first-class testing & inspection equipments and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet and exceed the GB industry standards. Our Cables are well sold to Americas, Europe, Middle-east, Southeast Asia and Africa. We establish the strategic partnership with many global electronic enterprises. We mainly produce nearly 10 categories (thousands of kinds) cables, such as audio & video cable, elevator cable, data cables, computer cable, CAT5E LAN cable , CAT 6 LAN cable, solar PV cable, UL wire, flexible cable and special cable. All our cables has already got the certificates of national or international professional testing organizations,such as China CCC certificate , US UL certificate , European Union CE Certificate , German TUV, Quality system certification certificate ISO9001:2000.



Why Choose Us
We are a professional wire and cable manufacturer
1.Jiukai sends all the items with Outgoing Quality Inspection Report;
2.The copy of TUV certification will be sent along with the  products;
3.We guarantee100% good quality when the products are   sent out of factory;
4.We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most countries within 7 days;
5.Jiukai is ship to world wide;
6.Once we shipped the products,our after-sale service will  send you the tracking number;
7.If your item is not as described or faulty when you receive it, we will send replace it for you with no additional charge;
8.If the item is found non-defective,the item will be sent back to the buyer at buyer's expense.



FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q:How long solar cable can be loaded in one 20" container?
A:Can load:1×4mm² solar cable 250km; 1×6mm² solar cable 200km;1×10mm² solar cable 120km;1×16mm² solar cable 80km;2×4mm² solar cable 128km;2×6mm² solar cable 80km.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
