TUV Certificated Solar Panel Connector Mc4 Connector for Power Plant

Prod Model:	MC4 connector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	TUV 1000V DC/UL 600 VDC
Rating Current:	20A~30A
Suitable Cable Cross Sectious:	2.5mm~6.0mm/14AWG~10AWG
Pollution Degree:	2
Proof Voltage:	TUV6000V AC(1min)/UL2200V DC(1min)
Protection Class:	Class 2
Degree Of Protection IP:	IP68 (IEC 60529)
Connector Material:	PPO
Contact Material:	Copper, Tin Plated
Be Customized:	Yes
Type:	Socket Terminals
Material:	Copper
Application:	Conduct Electricity
Certification:	TUV
Brand:	Leader

Product Description

Product description

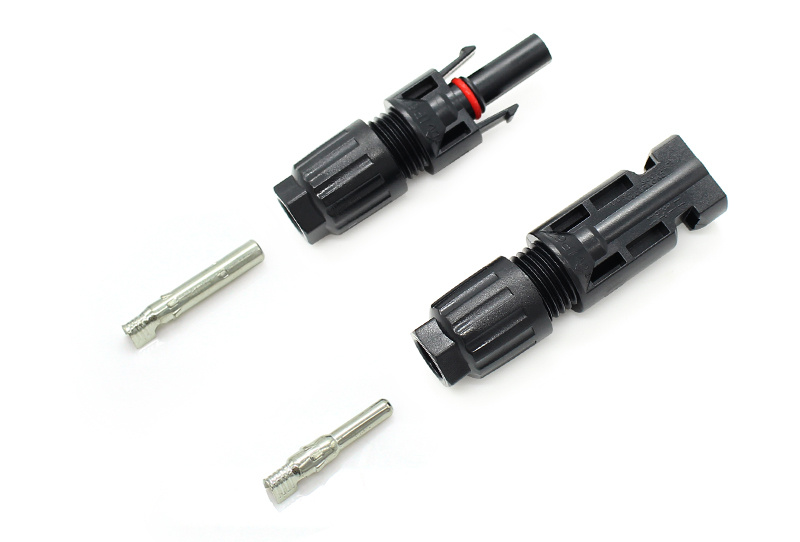

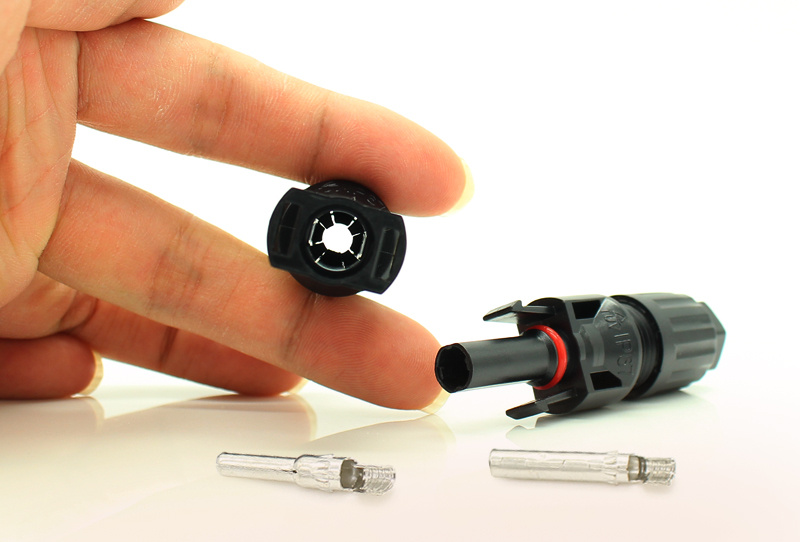

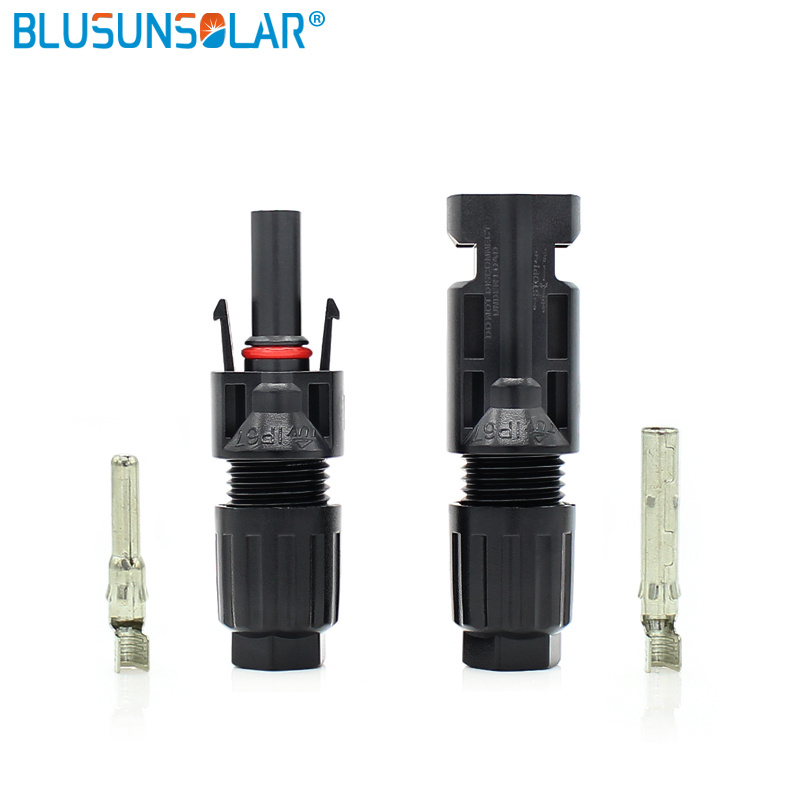

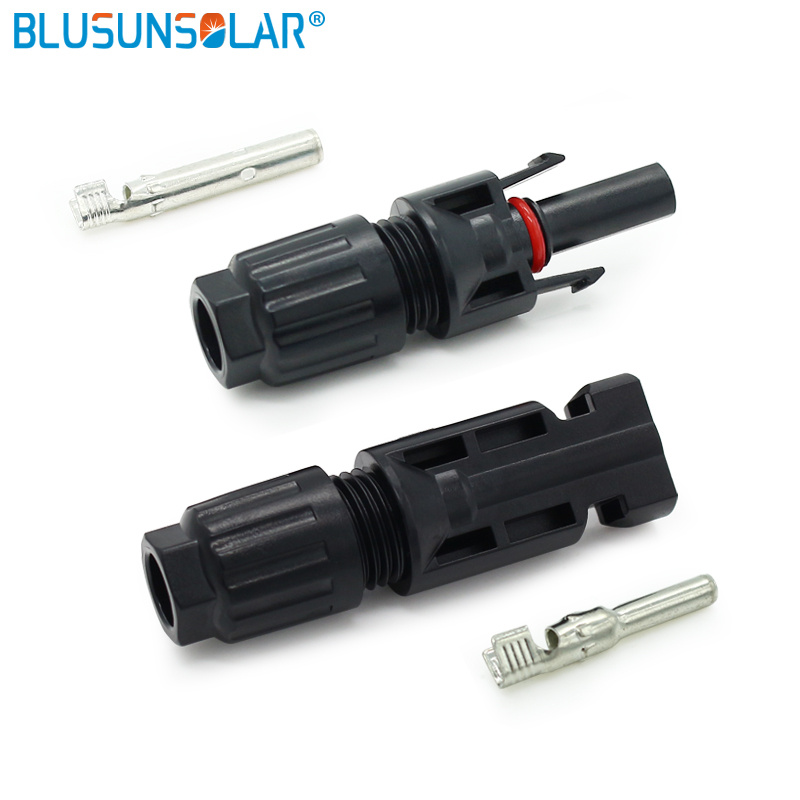

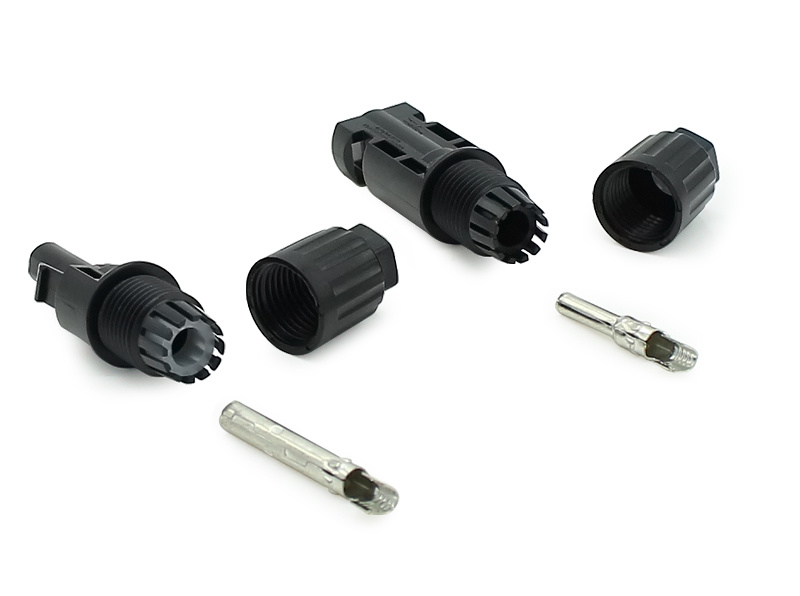

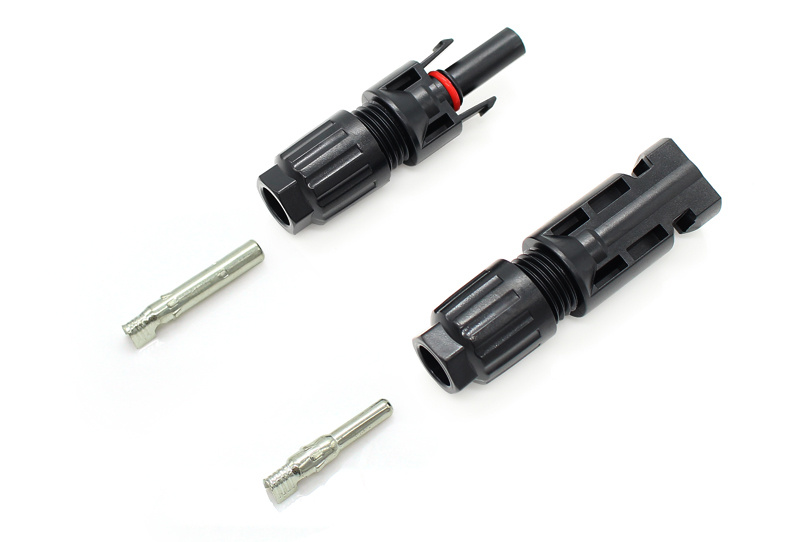

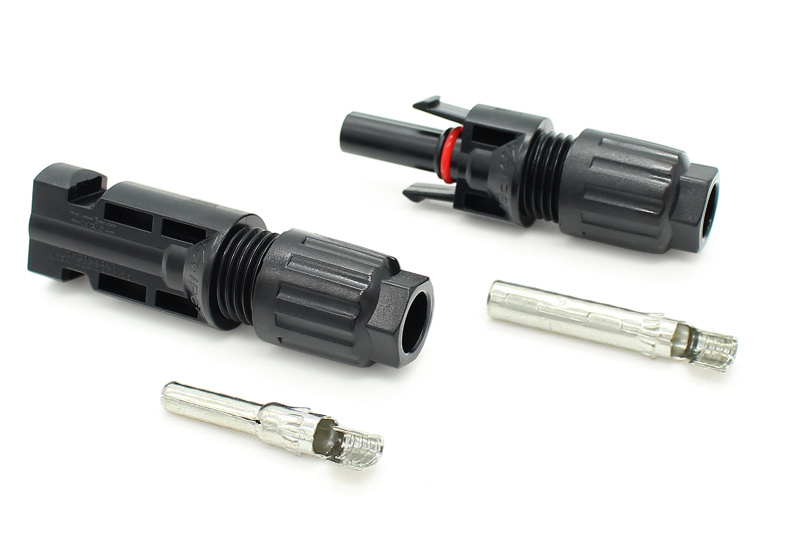

TUV Certificated Solar Panel Connector MC4 Connector for Power Plant

Rated Voltage	TUV 1000v DC/UL 600VDC
Rating Current	20A~30A
Suitable cable cross sections	2.5mm²~6.0mm²/14AWG~10AWG
Pin dimension	φ4.0mm
Pollution degree	2
Protection class	Class II
Contact Material	Copper ,Tin Plated
Contact Resistance	<=5mΩ
Connector Material	PP

Degree of Protection IP	IP67 (IEC 60529)
Withdrawal Froce	.>=50N
Inestion Force	<=50N
Tempersture Range	-40 ºC~+85ºC
Flame Class	UL94V-0

Company Information
LEADER TECHNOLOGY(SHENZHEN)CO.,LIMITED is a new energy enterprise,located in SHENZHEN, China,specializing in R&D,manufacturing and marketing solar connectors,PV junction boxes,solar box and PV assembles etc.,with an integrated utilization from solar modules,solar energy appliance to on/off-grid solar power generation systems, and by the products R&D,mold design,production,sales through-train service.With advanced technology,our products have been authorized by TUV Rhineland,UL,CE successfully.
LEADER Company adheres to self-R&D,strict detection standards and perfect detection system, modernization management approaches and excellent talent teams, hold the belief of "survive for excellence,development for innovation",insist on being professional,large-scale brand.

Packing & shipping

1 When you place an order ,please choose method and pay for the order ,we will deliver goods as soon as possible .
2 Please notice that buyers are responsible for all ADDITIONAL customs fees (included the shipping cost) , brokerage fees ,duties and taxes for importation into your country ,these additional fees may delay the time of delivery . and we will not refund shipping charges for refused shipment .
3 We will track the goods until you recevie goods .

Our service
We will give you the best service
1 Reply inquiry within 24 hours
2 Answer your detail information immedately .
3 Freight farwarder faster ,safe and convenient
4 Please feel free to contact me if you are intersted some products ,we will provide favorable price to you .

FAQ
Q: Is the sample available and free ?
A :Sample is availble but not free we will provide the favorable price.And the cost will be refund  after further order received.

Q: Do you accept customized order or drop ship?
A: Yes we do.

Q: Do you have overseas warehouse?
A: Yes we have opened overseas warehouse in Germany and will open few other warehouse in some country.

Q: What the delivery time ?
A : 5 days after confirming payment,but sometimes delivery date will be based on order quantity .

Q: How can contact you ?
A : Contact person : Matte Mao





If you have any question ,please feel free to contact me ,so that we could talk more details.Thank you.

For more information please check our website for review.

www.leadergroup-cn.com
