TUV IP66 High Quality Power Distribution Metal Enclosure
| Price: |
US $ 5.5-300/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
BJS1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Ral7032 or Ral7035 |
| Thickness: |
1.2mm,1.5mm,2.0mm |
| OEM: |
Offered |
| Lock: |
Available on Request |
| Accessories: |
Wall Mount Brackets to Be Offerd Separately |
| Type: |
Power |
| Structure: |
Protection |
| Certification: |
TUV,Ce,RoHS |
| Size: |
From200X200X150mm to 1200X1200X300mm |
| Application Range: |
Power |
| Shell Protection Grade: |
IP66 |
| Brand: |
B&J |
Product Description

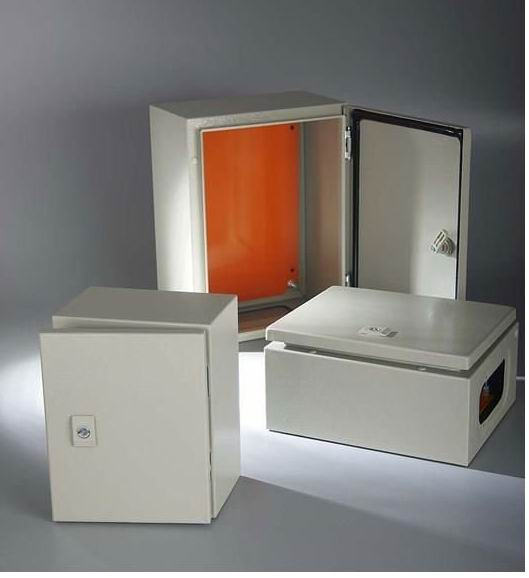

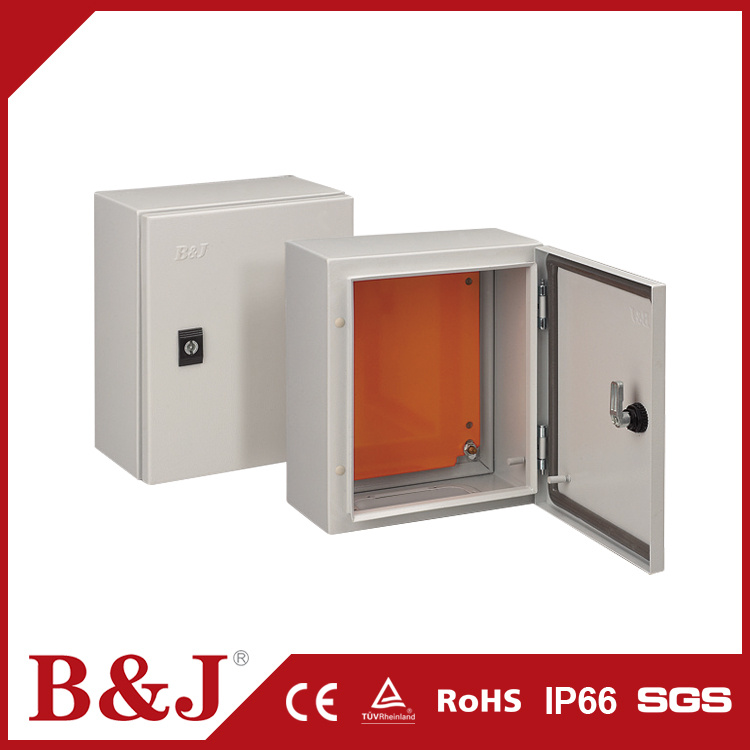

TUV IP66 high quality power distribution metal enclosure
Dimensions(mm):| Reference | Height | Width | Depth | | Reference | Height | Width | Depth |
| BJS1-2020/150 | 200 | 200 | 150 | | BJS1-7040/200 | 700 | 400 | 200 |
| BJS1-2520/150 | 250 | 200 | 150 | | BJS1-7040/201 | 700 | 400 | 300 |
| BJS1-3020/150 | 300 | 200 | 150 | | BJS1-7050/150 | 700 | 500 | 150 |
| BJS1-3020/200 | 300 | 200 | 200 | | BJS1-7050/200 | 700 | 500 | 200 |
| BJS1-3025/150 | 300 | 250 | 150 | | BJS1-7050/250 | 700 | 500 | 250 |
| BJS1-3025/200 | 300 | 250 | 200 | | BJS1-7050/300 | 700 | 500 | 300 |
| BJS1-3025/250 | 300 | 250 | 250 | | BJS1-7060/200 | 700 | 600 | 200 |
| BJS1-3030/150 | 300 | 300 | 150 | | BJS1-7060/250 | 700 | 600 | 250 |
| BJS1-3030/200 | 300 | 300 | 200 | | BJS1-7060/300 | 700 | 600 | 300 |
| BJS1-4030/150 | 400 | 300 | 150 | | BJS1-8060/200 | 800 | 600 | 200 |
| BJS1-4030/200 | 400 | 300 | 200 | | BJS1-8060/250 | 800 | 600 | 250 |
| BJS1-4040/150 | 400 | 400 | 150 | | BJS1-8060/300 | 800 | 600 | 300 |
| BJS1-4040/200 | 400 | 400 | 200 | | BJS1-8080/200 | 800 | 800 | 200 |
| BJS1-5030/150 | 500 | 300 | 150 | | BJS1-8080/250 | 800 | 800 | 250 |
| BJS1-5030/200 | 500 | 300 | 200 | | BJS1-8080/300 | 800 | 800 | 300 |
| BJS1-5030/250 | 500 | 300 | 250 | | BJS1-8080/400 | 800 | 800 | 400 |
| BJS1-5030/300 | 500 | 300 | 300 | | BJS1-1060/200 | 1000 | 600 | 200 |
| BJS1-5040/150 | 500 | 400 | 150 | | BJS1-1060/250 | 1000 | 600 | 250 |
| BJS1-5040/200 | 500 | 400 | 200 | | BJS1-1060/300 | 1000 | 600 | 300 |
| BJS1-5040/250 | 500 | 400 | 250 | | BJS1-1070/200 | 1000 | 700 | 200 |
| BJS1-5040/300 | 500 | 400 | 300 | | BJS1-1070/250 | 1000 | 700 | 250 |
| BJS1-5050/150 | 500 | 500 | 150 | | BJS1-1080/200 | 1000 | 800 | 200 |
| BJS1-5050/200 | 500 | 500 | 200 | | BJS1-1080/250 | 1000 | 800 | 250 |
| BJS1-5050/250 | 500 | 500 | 250 | | BJS1-1080/300 | 1000 | 800 | 300 |
| BJS1-5050/300 | 500 | 500 | 300 | | BJS1-1010/250 | 1000 | 1000 | 250 |
| BJS1-6040/150 | 600 | 400 | 150 | | BJS1-1010/300 | 1000 | 1000 | 300 |
| BJS1-6040/200 | 600 | 400 | 200 | | BJS1-1010/400 | 1000 | 1000 | 400 |
| BJS1-6040/250 | 600 | 400 | 250 | | BJS1-1260/200 | 1200 | 600 | 200 |
| BJS1-6040/300 | 600 | 400 | 300 | | BJS1-1260/250 | 1200 | 600 | 250 |
| BJS1-6050/150 | 600 | 500 | 150 | | BJS1-1260/300 | 1200 | 600 | 300 |
| BJS1-6050/200 | 600 | 500 | 200 | | BJS1-1280/200 | 1200 | 800 | 200 |
| BJS1-6050/250 | 600 | 500 | 250 | | BJS1-1280/250 | 1200 | 800 | 250 |
| BJS1-6050/300 | 600 | 500 | 300 | | BJS1-1280/300 | 1200 | 800 | 300 |
| BJS1-6060/150 | 600 | 600 | 150 | | BJS1-1210/250 | 1200 | 1000 | 250 |
| BJS1-6060/200 | 600 | 600 | 200 | | BJS1-1210/300 | 1200 | 1000 | 300 |
| BJS1-6060/250 | 600 | 600 | 250 | | BJS1-1210/400 | 1200 | 1000 | 400 |
| BJS1-6060/300 | 600 | 600 | 300 | | BJS1-1212/300 | 1200 | 1200 | 300 |
| BJS1-6060/400 | 600 | 600 | 400 | | BJS1-1212/400 | 1200 | 1200 | 400 |
| Material | Sheet Steel |
| OEM | Offered |
| Package | 1 Piece Per Carton |
| Certification | CE,IEC,ROHS,TUV,SGS |
| Paint Finish | Epoxy Polyester Coating |
| Lock | Available On Request |
| Thickness | 1.2mm,1.5mm,2.0mm |
| Color | Ral7032 |
| Accessories | Wall Mount Brackets To Be Offered Seperately |
Packing Details: 1 Piece Per Carton
Delivery Time:10-30days after prepayment
Warranty Service:
We 100% Gurantee your Satisfaction
1 Pls report us if there are any problem, we will solve it ASAP.
2 This items comes with 1 YEAR warranty.
Equivalent replacements can be provided with shipment of your next order if the products are broken for unartificial factors within 1 YEAR; however photos are needed for us to find the factors of damaging them.
3 Shipping and handling fees are not refundable for return or exchange items.
Philosophy of the Company:
Excellent design,Excellent make.Excellent service.
Zhejiang B&J Electrical Co., Ltd. With 20 years' experience in electrical industry, is the leading manufacturers of distribution boxes in China, specialized in producing and reserching all kinds of distribution box, wall mounting distribution box, knock down cabinet, floor standing cabinet, stainless steel box and plastic box. We have a professional team of engineers; Salemans. Service group and highly developed production and researching equipments. For our products, we have CE, RoHS, TUV and IP66, IP68 certificate. We established good commercial relationships with company from American, Europe, Asian pacific, Middle East etc. Our comprehensive product range got compliment from our customers of more than 50 coutries and areas around the world
The company aim to 'Excellent design, Excellent manufacture, Excellent service' With our professional technologies, production expertise and spirit of innovation, we can assure you that our products will meet your requirement.
Sincerely hope we can have a good cooperation in nearly future and assisting in growth for mutual benefit.
