| Prod Model: |
Solar Cable |
| Products Name: |
Solar Cable |
| Voltage Rating: |
0.6/1kv |
| Conductor: |
Tinned Copper Wire |
| Insulation: |
XLPE |
| Sheathed: |
XLPE |
| Temperature Rating: |
120c |
| Thermal Endurance Properties: |
25years |
| Standard: |
2 Pfg 1169/08.2007 |
| Size: |
2.5mm2 4.0mm2 6.0mm2 10mm2 |
| Sheathed Color: |
Black and Red |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
UL |
| Application: |
Cables for Photovoltaic-Systems |
| Model: |
PV1-F |
| Brand: |
Ren Da |
Product Description
TOP TEN CABLE MANUFACTURER/EXPORTER IN CHINA
LARGEST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 200MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATION
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY

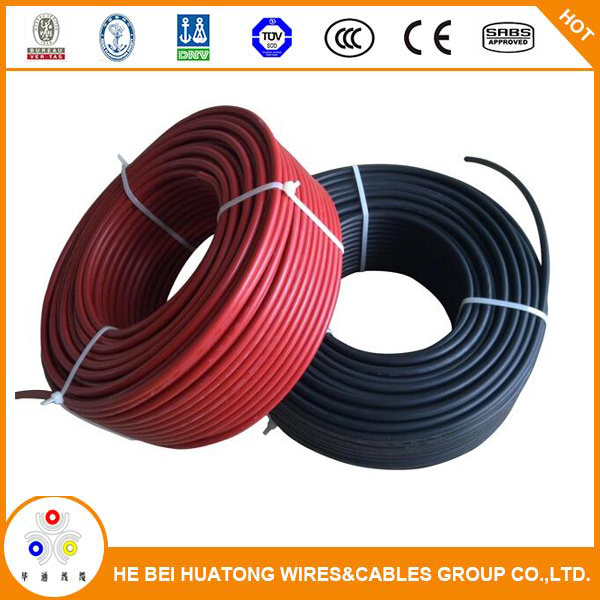

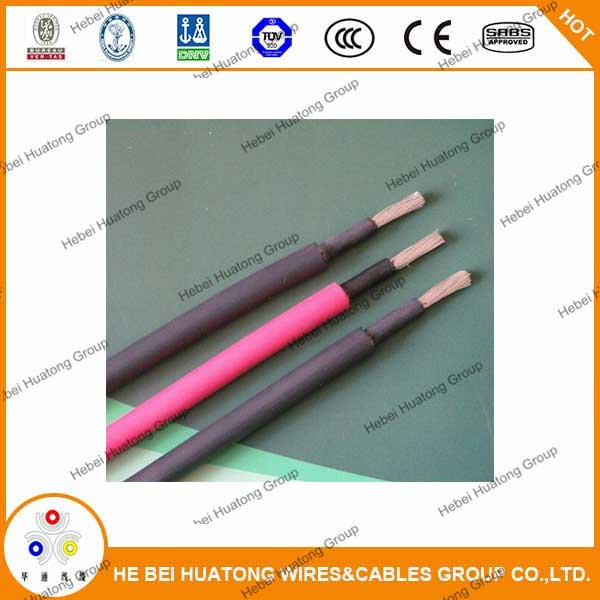

TUV standard 1x2.5mm2 Solar Cable for solar power system1 Application
TUV Approved Heat Resistant XLPE Insulated PV Cable for Solar Energy is used in fixed installation, internal connection of solar panels. This product has excellent UV-resistant performance and is TUV approved.
2 Product Description (TUV and UL certificate)
1 .Standard: 2 PFG 1169 08.2007 and UL 4703
2 . Conductor Material : Stranded tinned copper
3.Insulation Material: XLPE
4. Sheath Material :XLPE
5. standard: TUV 2Pfg 1169 08.07
6.Rated voltage: AC Uo/U0.6~1.0KV , DC1.8KV
8.Ambient temperature: -40~+90C
9.The expected period of use: 25years
10.Flame rated IEC60332-1-2
3 Characteristic of solar cable:
1.Double insulation,electron beam cross-linked
2.Excellent resistance to UV, water, ozone, fluids, salt, general Weathering
3.Excellent resistance to abrasion
4.Halogen free,flame retardant,low toxicity
5.Excellent flexibility and stripping performance
6.High current carrying capacity
7.TUV and UL approved
4 Data sheet of Solar cable:
| Sectional area (mm2) | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | 16 |
| Copper (Ω/km) | 36 | 24.5 | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | 1.83 | 1.15 |
| Tinned copper (Ω/km) | 36.7 | 24.8 | 18.2 | 12.2 | 7.56 | 4.7 | 3.11 | 1.84 | 1.16 |
| Sectional area (mm2) | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 | 240 |
| Copper (Ω/km) | 0.727 | 0.524 | 0.387 | 0.268 | 0.193 | 0.153 | 0.124 | 0.0991 | 0.0754 |
| Tinned copper (Ω/km) | 0.734 | 0.529 | 0.391 | 0.27 | 0.195 | 0.154 | 0.126 | 0.1 | 0.0762 |
5 Packing of sloar cable:
6 Certificate and laboratory: We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

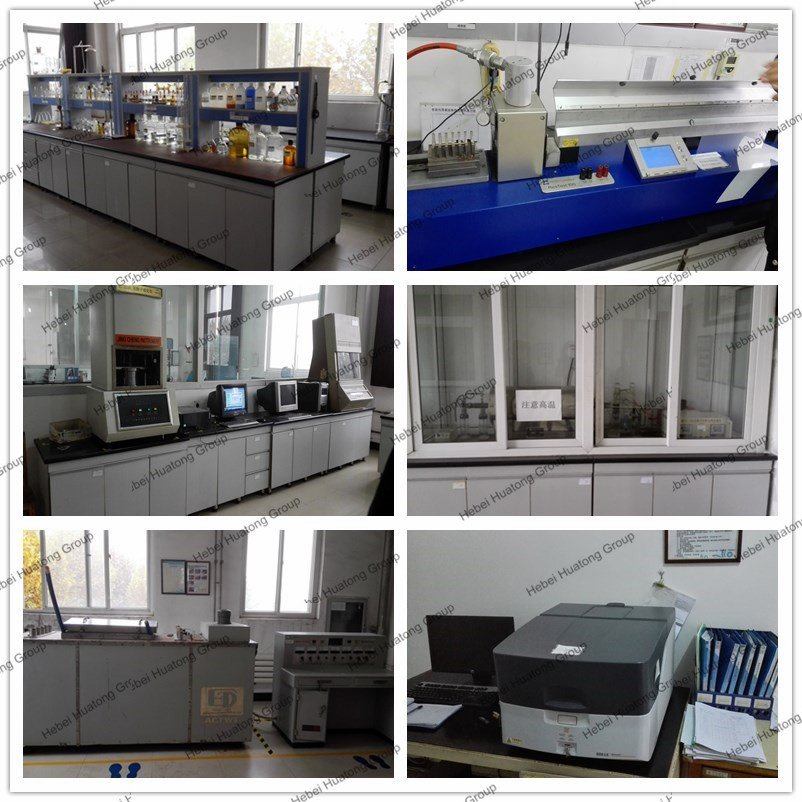

Our laboratory center are authorized by both of ILAC (International Laboratory Accreditation Cooperation)&CNAS(China National Accreditation Service for Conformity Assessment), so the testing results in our labs can be accepted by the international countries belong to the above organizations.

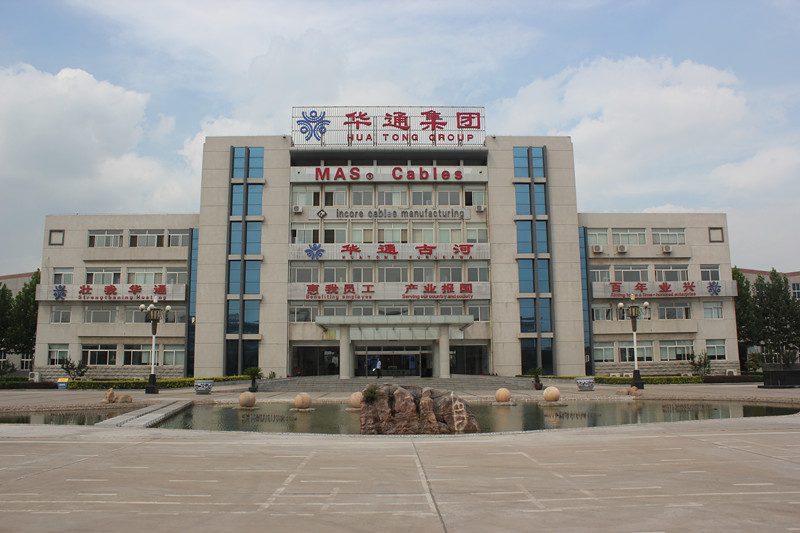

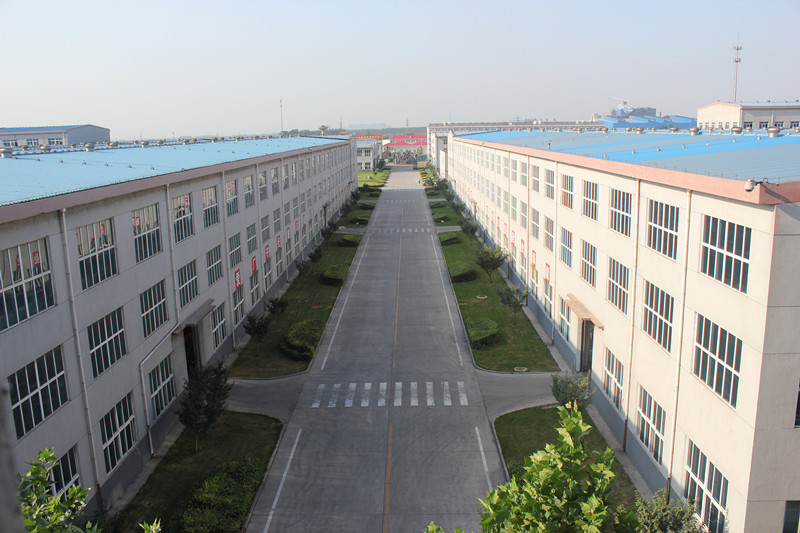

7 Company profile:Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
8 Our service:
1.22 years production experience and 13 years export experience .

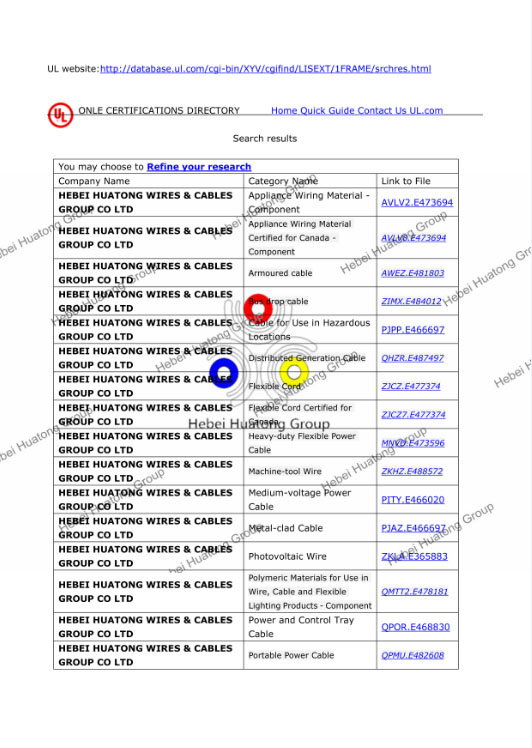

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
