TV Antenna with High Gain 12 Element

Name: TV Antenna with High Gain 12 Element
Brand: all-electronics-online.com
SKU: 777884005
Availability: InStock
Rating: 4.8 (79 reviews)

Price:	US $ 2.98-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BT-680-12E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	VHF&UHF:47-862MHz, UHF:470-862MHz
Element:	3e, 5e, 6e, 7e 8e 9e 10e 11e 12e 16e, 18e 24e 32e
Gain:	6-16dBi
Signal:	Stability
Materials:	Aluminum Alloy
Products Type:	Outdoor TV Antenna
Connector:	F Connector for TV Antenna
Key Words:	TV Antenna
Factory:	Directly Supply From Factory
Products Packing:	Exported Standard Carton for TV Antenna
Usage:	TV Antenna
Operating Wavelength:	Medium Wave
Material:	Al
Directionality:	Directional Antenna
VSWR:	<1.5
Usage Occasion:	Outdoor Receiving TV Antenna

Product Description

DVB-T Antenna Outdoor VHF UHF TV Antenna (Television antenna)

------ Focus On high quality
Advantages:

1.Frequency range: we can make TV antenna frequency 470-862Mhz or 47-862Mhz.
2.Material: aluminum alloy,to prevent TV antenna outdoor from acid rain, alkaline and salt fog corrosion.
3.Thickness: thick element TV antenna for you to keep high quality,also can make thin one to recude your cost
4.Install: supply mount holder packing with TV antenna to help you easy install.
5.Package:Individually packaged with polybag, usually 50pcs TV antenna in one carton.
6.Customized: supply OEM service,with colorful design to meet the individual needs.

1.Outdoor UHF TV antenna Specification :
Input Frequency:	470-862MHz, 600-700Mhz,470-670MHz,650-850Mhz (can select)
Gain:	7dBi,9.5dB,11dB,12dB,13dB,16dB. (can select)
Front to back ratio:	≥12dB
VSWR:	≤1.5
Input impedance:	75Ω
Polarization:	V/H
Max power:	50W
Lighting production:	Direct grounding
Connector type:	F male or as per customer's request

2.VHF & UHF Outdoor TV Antenna Specification:
Input Frequency:	32E: 47-862MHz, 24E: 168-862MHz
Gain:	8-12dB
Front to back ratio:	≥12dB
VSWR:	≤1.5
Input impedance:	75Ω
Polarization:	V/H
Max power:	50W
Lighting production:	Direct grounding

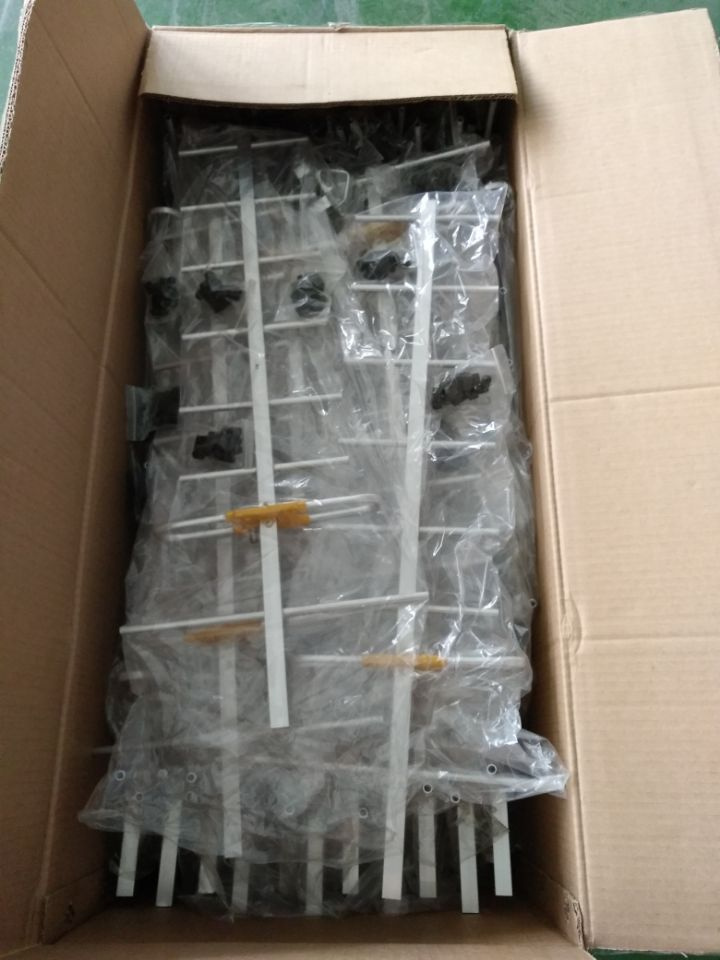

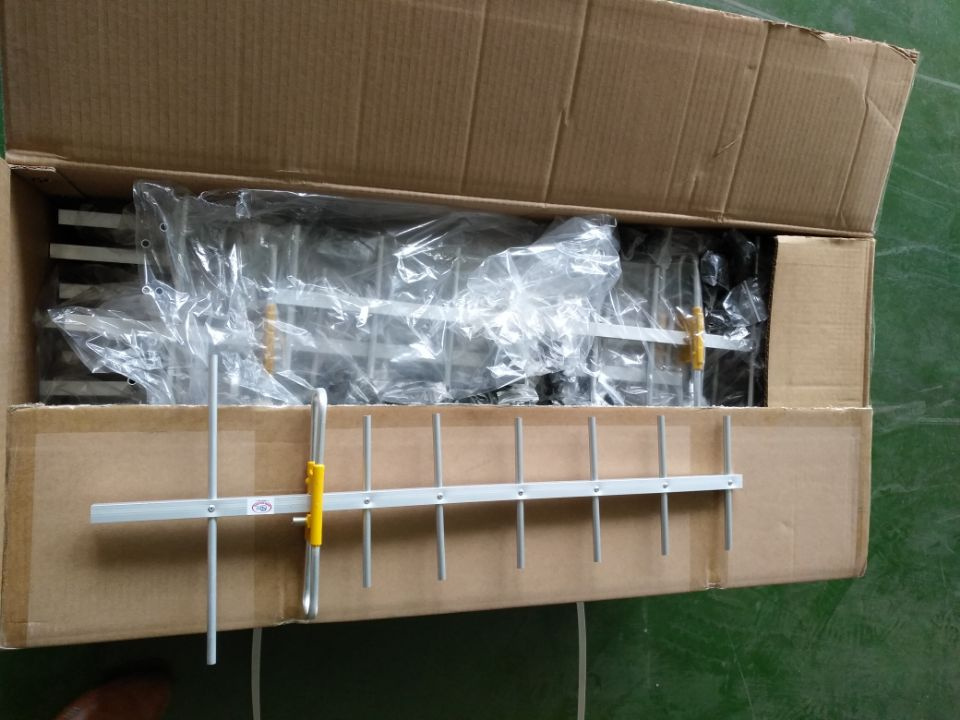

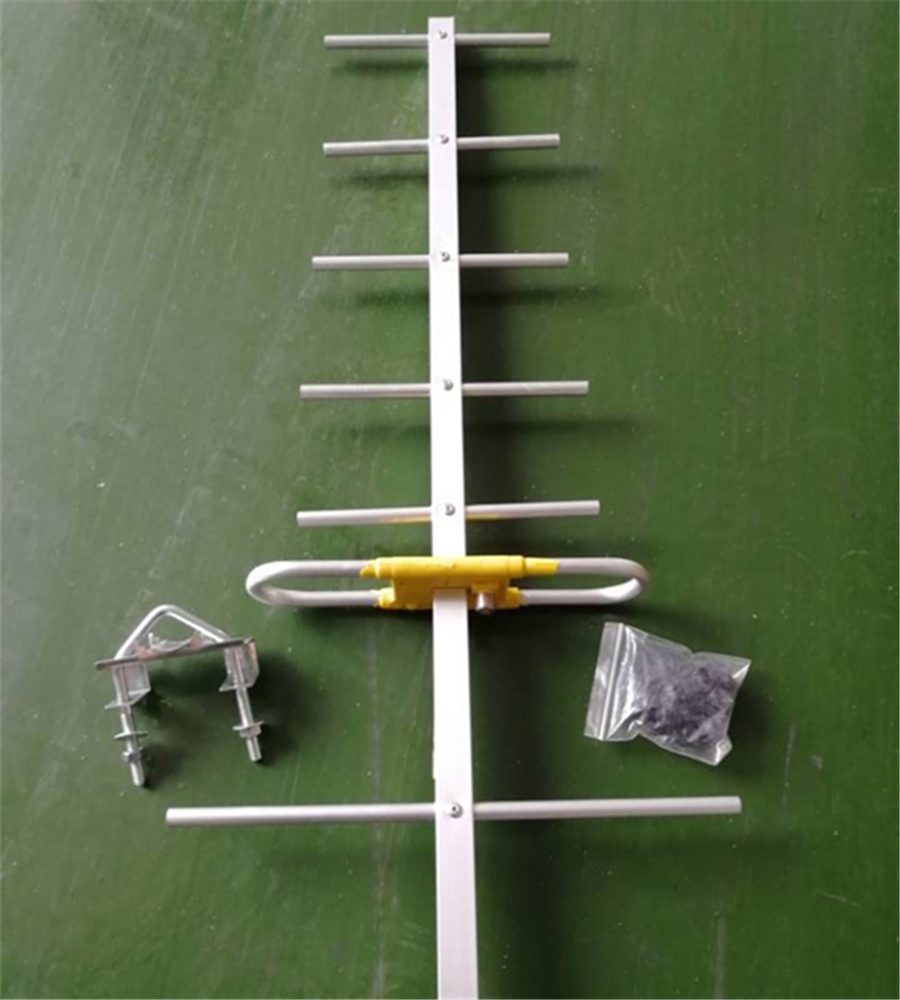

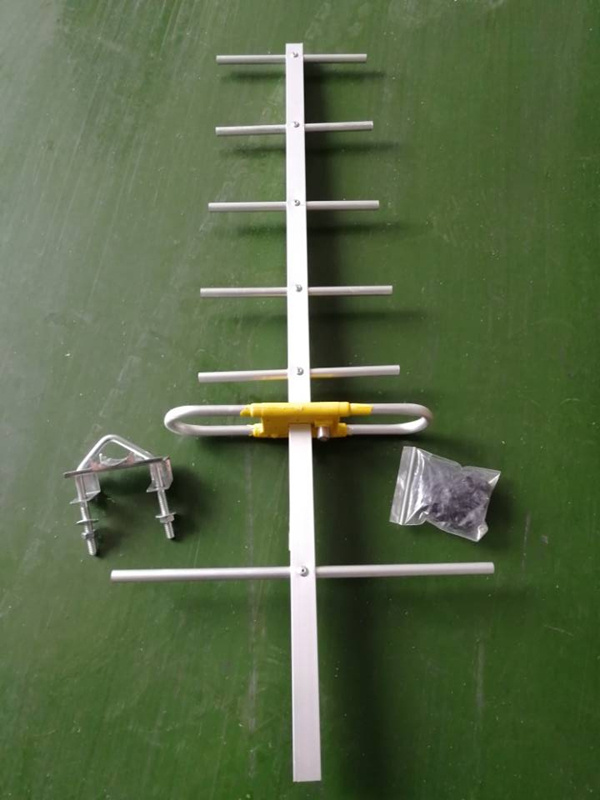

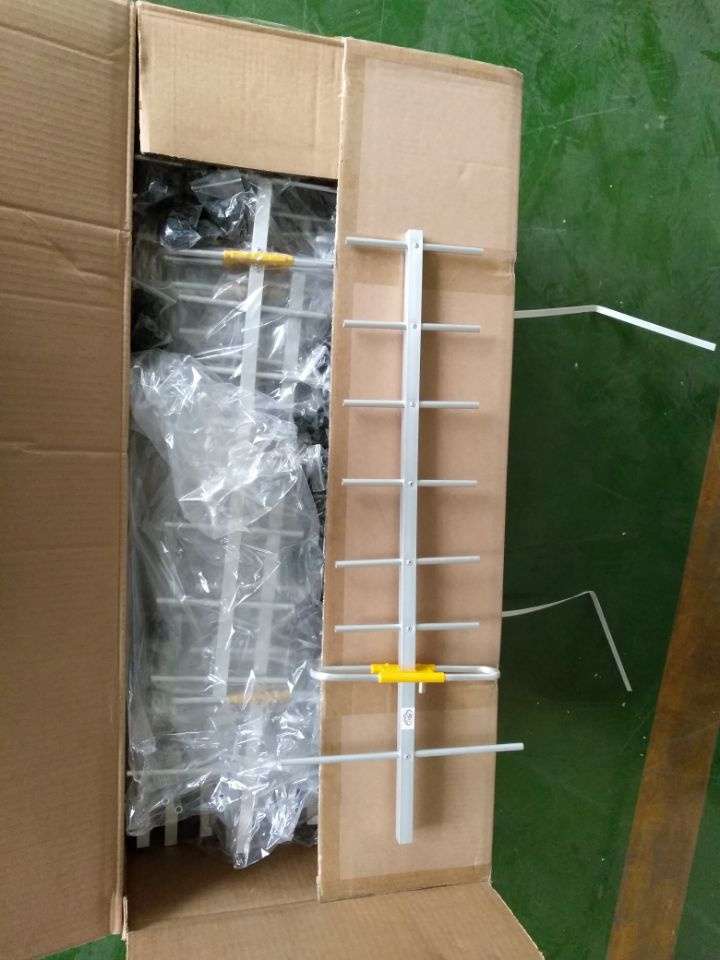

picture show:

shippinment:
We can send the goods as your requirement,Small goods suggest ship by Express.like EMS,HK post,DHL,FedEx.Large quantity suggest ship by Sea.

Warm Tips for customers:

Because of size of the TV antenna.Please choose shipment by container to low your cost.Usually Our MOQ is 1000pcs of each model.

Contact :

If you are intersted in, Please send email to me for the exact packing size.
Our factory is locted in Hefei City, China. we manufacture TV antenna
With high quality and good price. The samples test before order is available.

My Name card:

Yuanny Sales Manager
Mobile : 008618326157379

Any questions and messages of TV antenna, I will reply you within 12 working hours.
