Twice Sheathed Multi-Core POF Communication Cable

Name: Twice Sheathed Multi-Core POF Communication Cable
Brand: all-electronics-online.com
SKU: 764692065
Availability: InStock
Rating: 4.4 (74 reviews)

Price:	Negotiable/Roll
Trade Terms:	CFR,CIF,EXW
Min Order:	1/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CCU2-1.0/2.2/7.0-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China(Mainland)
Application:	Submarine Cable
Conductor Material:	Plastic
Cover Material:	PE
Type:	Step Index Model
Wire Core Material:	PMMA
Model:	Ccu2-1.0/2.2/7.0-4
Brand:	Huiyuan

Product Description

CCU2 Twice Sheathed Multi-Core POF Communication Cable

1. Description

It has all features of CC series plastic optical fiber cable. Buffered with PVC sheath as the second jacket, double jackets of CC series cable work normally even in tough environments. Comply with YD/T 1447-2006 and YD/T 1258.6-2006, the state communications industry standard.

2. Technical Parameters

Item	Parameters		Unit	Numerical value
POF	Core material			PMMA
	Cladding material			Fluorinated Polymer
	Core refractive index			1.49
	Cladding reflective index			1.41
	Refractive index profile			Step index
	Numerical aperture			0.5
	Core diameter		um	980±60
	Cladding diameter		um	1000±60

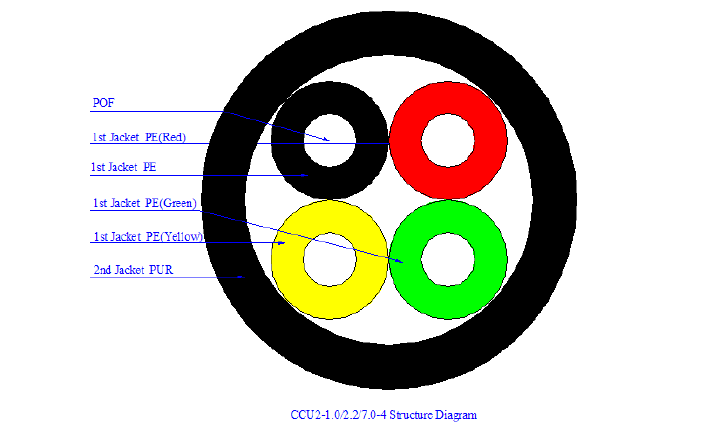

1^st Jacket	Material			Polyethylene
	Diameter		mm	2.2±0.07
	Color	CC2-1000		Black
		CC2-1000R		Red
		CC2-1000Y		Yellow
		CC2-1000G		Green
2^nd Jacket	Material			Flame retardant PUR
	Diameter		mm	7.0±1
	Color			Black
Cable	Attenuation (T=25ºC)		dB/m	≤0.2
	Storage temperature		ºC	-55~+85
	Operating temperature		ºC	-40~+70 (Recommended)
	Installation temperature		ºC	-20~+70

3. Applications

Power systerm;
Sensor signal transmission;
Industrial control signal transmission;
Audio signal transmission;
Special LAN or access network;
Military equipment.

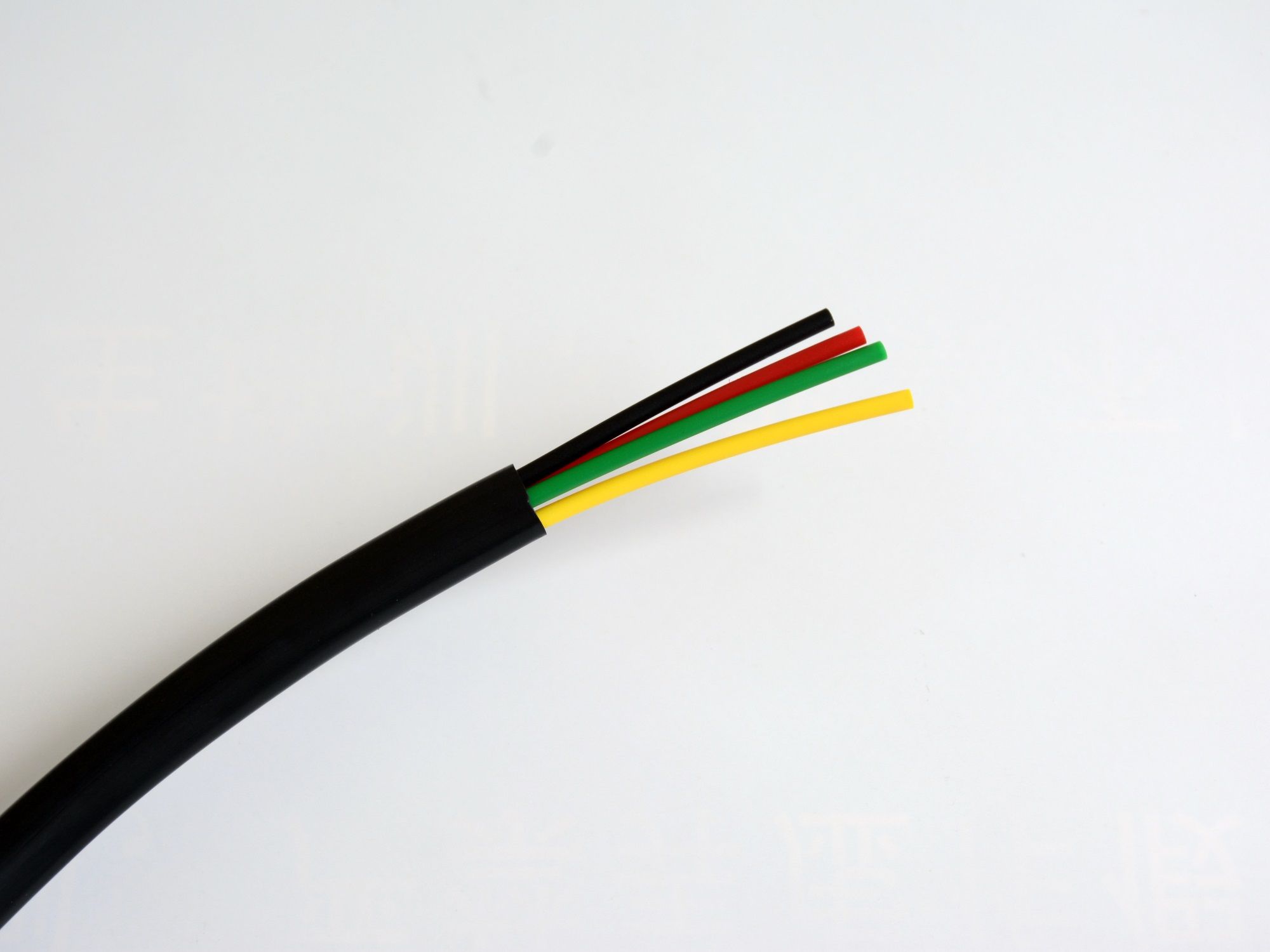

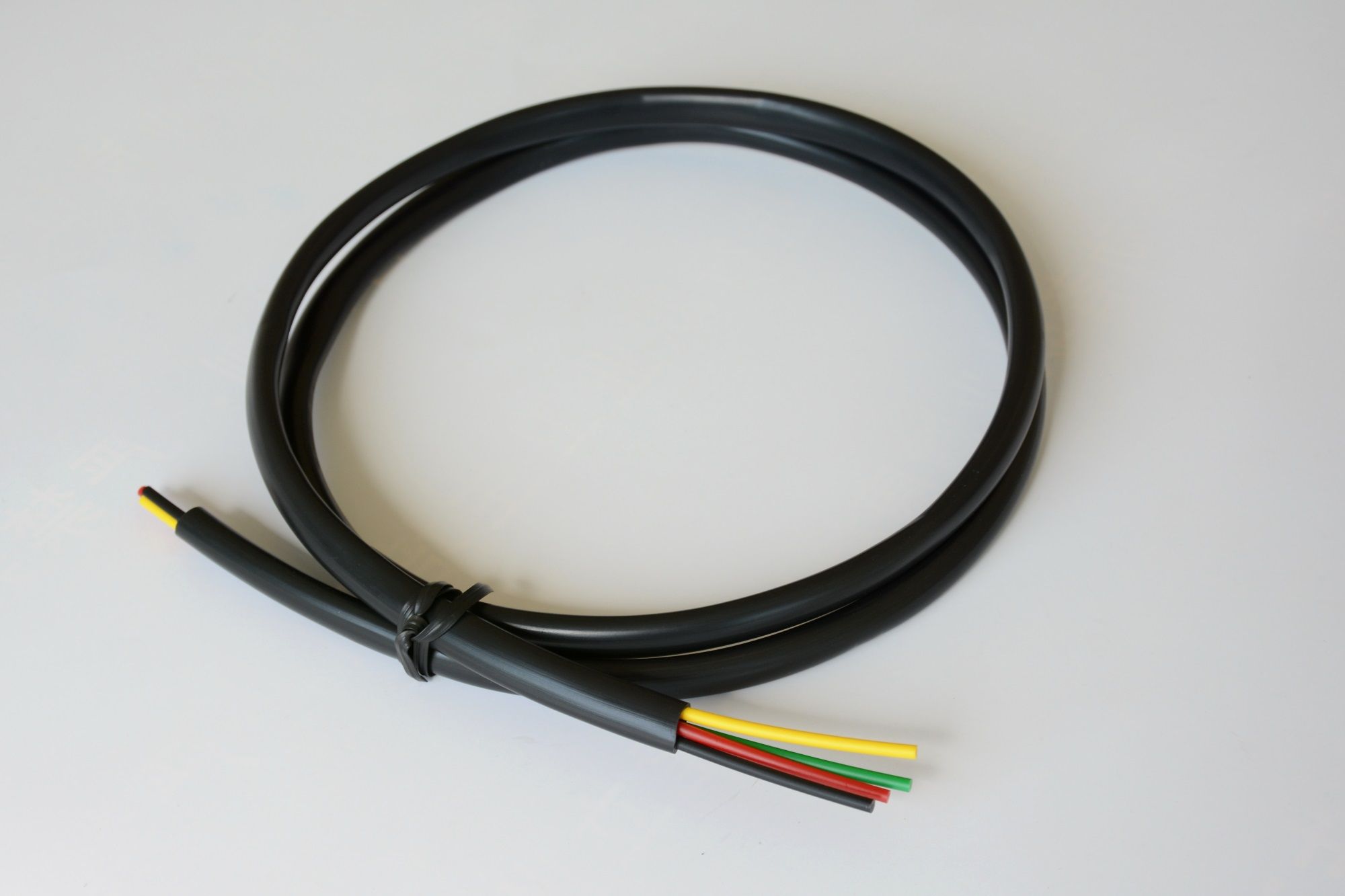

4. Product Pictures

Sichuan Huiyuan Plastic Optical Fiber Co., Ltd is a high-tech company which specializes in researching, manufacturing and marketing of low-loss PMMA plastic optical fiber, optical cable as well as its applications.

Launched in 2000, the company had realized the mass production of Low Loss PMMA POF through independent R &D of optical fiber raw materials, manufacturing equipment and production process in 2003, which was recognized as the first success in China. The company's products have broken the monopoly of foreign companies and filled the gaps in the domestic industry. Based on this success, the company had undertaken and accomplished the technological breakthrough task of the National Science and Technology Department, the Industrialization Upgrading Project of the State Development and Reform Commission, and the independent manufacturing of fluorine resin clad material, with the optical attenuation < 0.2dB / m, which has achieved an advanced level among the similar products in the world>.

It has developed the technology of lighting products, and has cultivated a large number of lighting manufacturers and lighting dealers; PMMA POF is widely used in decorative lighting in China.

We are expanding our market to oversea market! Sincerely welcome any contact from dealer in communication and lighting area around the world!
