| Prod Model: |
KA-LS05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Two Years |
| Samples Delivery Time: |
Within 2 Days |
| Bulk Order Delivery Time: |
Within 25 Days |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Application: |
Street Light, Flood Light etc. |
| Type: |
Photocell Sensor Switch |
| Principle: |
Light Control Switch |
Product Description
KA-LS05 Twilight Sensor Switch with Timer specification:1) Power source: 220V-240V/AC
2) Power Frequency: 50Hz
3) Rated Current: 6A
4) Ambient Light: <3-200LUX(adjustable)
5) TIMER setting range: From 1 hour to 9 hours (max. 9 hours)
6) adjustable or run duck to dawn only
7) Working Temperature: -20~+40° C
8) Working Humidity: <93%RH
9) Two Options: One option: Without earth cable, Another option:With earth cable
Package information:1) Each unit packed in one white box or color box
2) Carton size: 40.5x28.5x26CM
3) Qty/carton: 50PCS
4) Gross weight/Carton: 8.92KGS
Product introduction:This item is an automatic photocell switch for lamps. When the ambient-light darken to the LUX you setting in advnace, the lighting will turn on. The lighting will turn off at the preset time or ambient-light lager than the setting LUX. It adds the functions of LUX adjustable and TIME setting. It is more easier and confortable for user.
Time Setting:While the power is on, the lamp (LOAD) will be flash three times and then off.
The LED will flash to display the preset times as following:
1) within 1 hour (include 1 hour): flash one times
2) between 1 hour and 2 hours (include 2 hours): flash two times
3) between 2 hour and 3 hours (include 3 hours): flash three times
4) between 3 hour and 4 hours (include 4 hours): flash four times
5) between 4 hour and 5 hours (include 5 hours): flash five times
6) between 5 hour and 6 hours (include 6 hours): flash six times
7) between 6 hour and 7 hours (include 7 hours): flash seven times
8) between 7 hour and 8 hours (include 8 hours): flash eight times
9) more than 8 hours: flash nine times
10) dusk to dawn: rapidly flash about 3 seconds

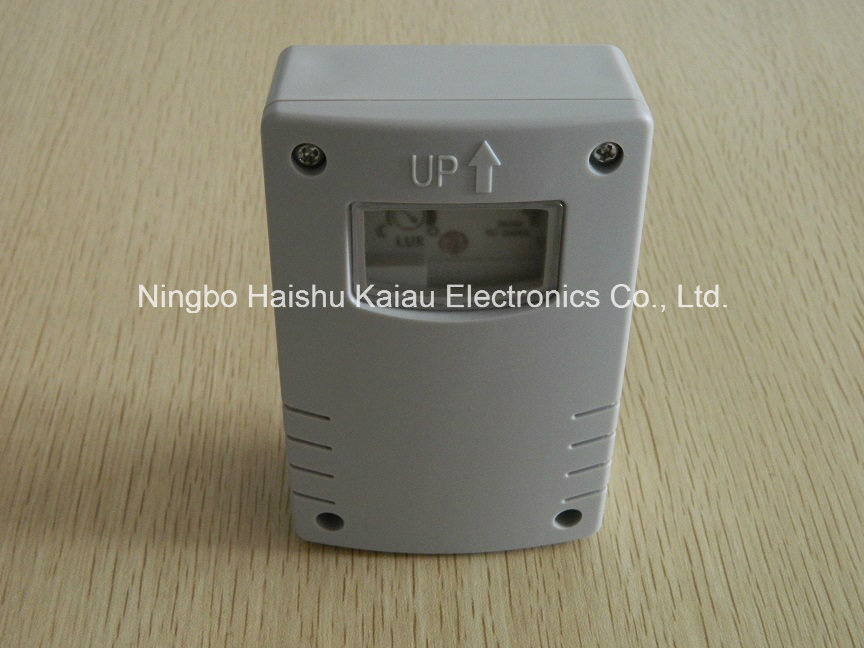

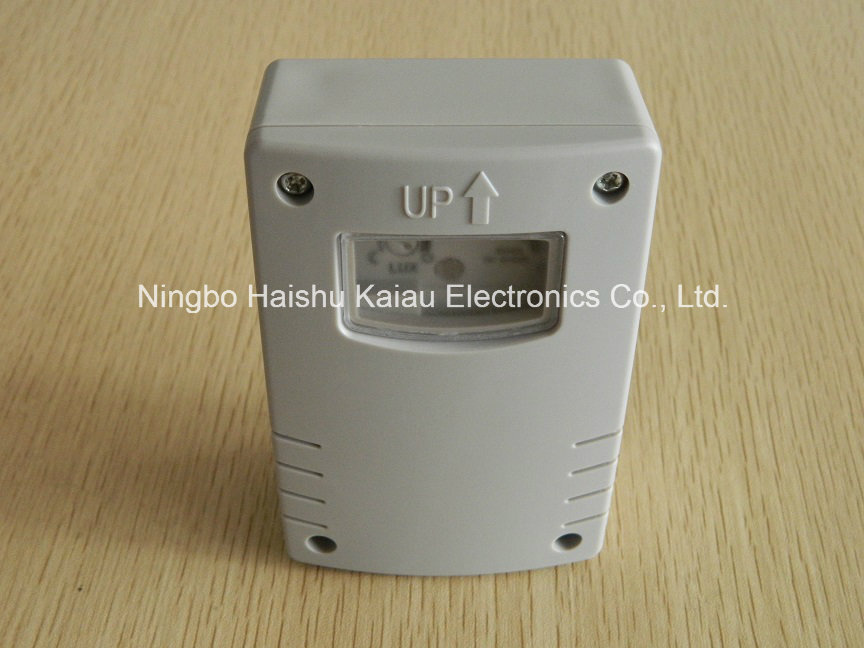

KA-LS05 Actual photos:
