Twist-Lock Thermal Type Photo Control Switch UL Certificated

Name: Twist-Lock Thermal Type Photo Control Switch UL Certificated
Brand: all-electronics-online.com
SKU: 815844005
Availability: InStock
Rating: 4.7 (74 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	202-1

Product Description

Basic Specification:

Nominal Rated Voltage	110-130VAC,200-240VAC,208VAC,277VAC
Applicable Volt Range	Nominal +/-10%
Ambient Temperature	-40ºC ~ +70ºC
Rated Frequency	50/60Hz
Voltage	Customized

The photocontroller JL-202 series is applicable to control the street lighting, garden lighting,
passage lighting and doorway lighting automatically in accordance with the ambient natural
lighting level.
This product is designed on the basis of thermal - bimetallic structure that provides time delay over 30 seconds to avoid mis-operation due to spotlight or lightning during the night time. A temperature compensation system provides consistent performance regardless to the ambient temperature.
This product provides three twist-lock terminals meeting the requirements of ANSI C136.10-1996and the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting UL773, 4th Edition, dated Jan.19th, 1995. JL-202 series has been listed by UL Inc for United States and Canada.
° ANSI C136.10-1996 Twist Lock
° Time Delay 30~120 seconds
° Temperature compensated
° Various Enclosures
° Lightning Arrester Available
° 1" Photocell Deluxe Version Available

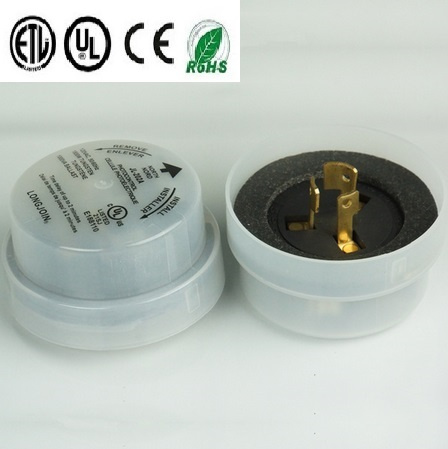

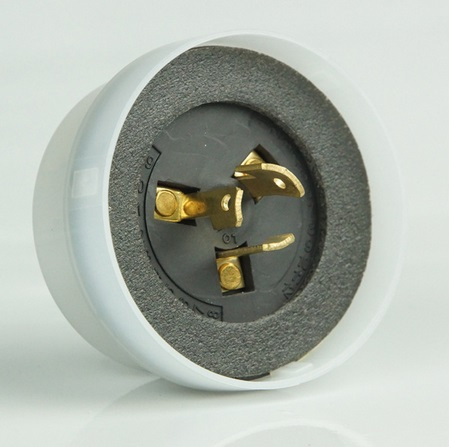

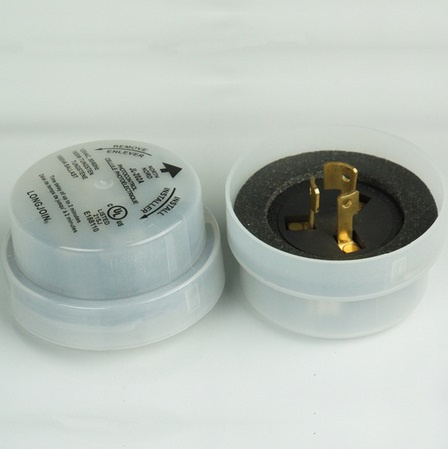

Product Pictures:

Item No.	JL-202A/JL-202B/JL-202C/JL-202D
Nominal Rated Voltage	110-120VAC,220-240VAC,208VAC,277VAC
Applicable Volt Range	Nominal +/-10%
Rated Frequency	50/60Hz
Rated Loading	1800W Tungsten, 1000VA Ballast
Power Consumption	1.5VA (Average)
Standard Operate Level	10~20Lx On, 30~60Lx Off
Photocell Size****	0.5" with heat sink (Standard) / 1" (Deluxe)
Ambient Temperature	-40ºC ~ +70ºC
Related Humidity	99%
Overall Dimensions (mm)	Null: 74dia.x 50 (Clear) / M: 74dia.x 60 / H: 84dia.x 65
**Enclosure Color (M/H)	Gray/ Maroon/ Blue or Client Request
**Clear Enclosure (Null)	Available
Weight Approx.	62~90grs

Materials: Enclosure & Lens - High impact UV stabilized Polycarbonate
Base - High impact Polybutylene terephthalate
Photocell - Cadmium Sulfide 0.5" with heat sink (Standard) / 1" (Deluxe)

Installation:

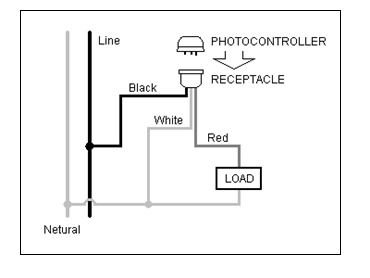

Disconnect power; wire the color coded receptacle according to the diagram below.
Push the photocontroller on and twist it clockwise to lock it into the receptacle.
Install the photocontroller with the Photocell facing the NORTH direction as indicated on the top of the photocontroller.
Adjust the receptacle position if necessary.
