| Prod Model: |
Twisted pair fire alarm cable |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Voltage Rating: |
450/750V |
| Shape: |
Twin Twisted Cable |
| Insulation Color: |
Black, White, Orange, Grey or as Required |
| Length: |
100m/Reel or up to You |
| Number Of Conductors: |
as Client's Requirement |
| Nominal Cross Sectional Area: |
0.5mm to 630mm Sq |
| Standard For Safety: |
IEC 60227-3:1997 |
| Package: |
Fillm Packing |
| Delivery: |
15-20days After Payment |
| Model: |
Twisted 2.5mm Electric Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Material Shape: |
Twisted Cable |
| Brand: |
Yongkuntai |
Product Description

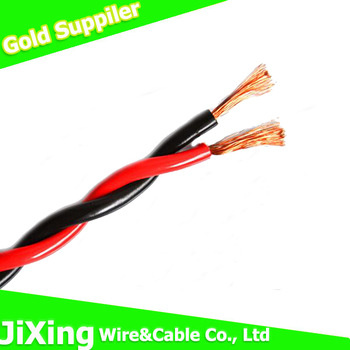

Twisted Pair Fire Alarm electrical wire Cable
1. Product Description:
Model:Twisted 2.5mm electric cable
(1). Standard: National Standard GB5023-2-97, JB8734-98(IEC227)
(2). Rated Voltage: 300/300V
(3). Construction: Annealed copper conductor, PVC insulated
2.Application:
The non-sheathed single core flexible wire is used for wiring of switch control, relay and instrument panels of power switch-gear, and such purpose as internal connections in rectifier equipment and in motor starters and controllers.
Code
Designation
by IEC | Code
Designation
by GB | Rated Voltage | Name | Application | Rated Temperature |
| 60227 IEC 01 | BV | 300/500V | Copper conductor PVC insulated rigid cable (electrical wire) | Fixed laid indoors
Instrument etc. |
0°C to +70°C |
| 60227 IEC 05 | BV | 450/750V |
| | BLV | 450/750V | Aluminum conductor PVC insulated rigid cable (electrical wire) |
| | BVR | 450/750V | Copper conductor PVC insulated semi-flexible cable (electrical wire) | Be for laying permanent place where flexible required. |
0°C to +70°C |
| 60227 IEC10 | BVV | 300/500V |
| Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
| BLVV |
300/500V
| Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) |
| | BVVB | 300/500V
| Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) |
| | BLVVB | 300/500V
| Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) |
| 60227 IEC 02 | RV | 450/750V
| Copper conductor PVC insulated flexible connector cable (electrical wire) | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
| 60227 IEC 06 | RV | 300/500V |
| 60227 IEC 42 | RVB | 300/300V | Copper conductor PVC insulated flat flexible connector cable (electrical wire) |
| | RVS | 300/300V
| Copper conductor PVC insulated flexible twisting connector cable (electrical wire) |
60227 IEC 52
| RVV |
300/300V
| Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) |
| 60227 IEC 53 | RVV | 300/500V |
Our factory:
shenzhen jixing wire&cable co.,ltd .is a specializing in the production of wire and cable, our products : 0.6/1kv plastic insulation,cross-linked insulated power cable,LSZH cables environmentally friendly,flame retardant cables,fire resistant cables,aluminum cable,branch cable,B series(rated voltage 450/750 and bellow) plastic wire and cable,XLPE wires and specifications.
Company has the most advanced testing equipment and production equipement,quality has reached the national and industry standards.
Jixing Cables:
1 Bare Conductor, Bare Copper Rod, Bare Aluminum Rod.
2 450/750V and below PVC Insulated Electrical Wires and Power Cables.
3 450/750V XLPE (Cross linked polyethylene) Insulated Electrical Wires and Power Cables.
4 0.6/1kV PVC Insulated Power Cables.
5 0.6/1kV XLPE (Cross linked polyethylene) Insulated Power Cables.
6 450/750V and below Control Cables.
7 1kV Aerial Bundled Cables.
Fire Resistant Cables, Fire Retardant Cables, Fire Rated Cables, LSZH (Low Smoking Zero Halogen) Cables, RoHs Cables, and Environmental Protection Cables.
Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.
Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.
Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.
Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.
Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
