Two Channel Humidity Controller SD-W100
Price: |
US $ 21.58/Piece |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
SD-W100 |
Working Power: |
AC220+/-10%,50Hz |
Installing Size: |
76X152mm |
Humidity Control Range: |
10~95%Rh |
Working Humidity: |
<95%Rh |
Working Temperature: |
-25-65degrees Celsius |
Condensation Control Start Spot: |
95%Rh |
Product Description
Factory direct supply, all goods can be customized,
OEM/ODM is available.

Overview

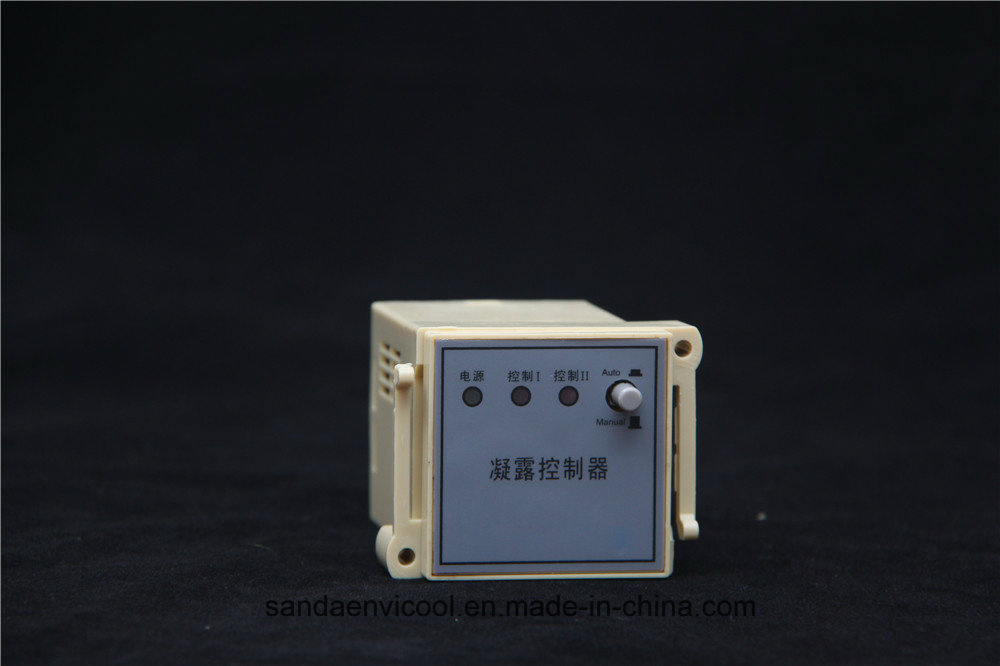

SD-W100 Two Channel Humidity Controller
With two way condensation sensor, it monitors the humidity changes in the environment.When the humidity rise to a certain degree and is possible to have condensation,the controller drives heater or fan to destroy condensation condition.When the condensation condition has not form,the heater or the fan disconnect automatically,then the controller recover to monitor. The device with force heating press-button can be forced to heat by hand.
Technical Parameter
- Power supply:AC220V±10%(50Hz)
- Work environment:Temperature-25ºC~65ºC Humidity≤95%RH
- Humidity control range:Condensation starting control:≤93%RH
- Output contact spot:ResistanceAC220V,3A(power)
- Power consumption:≤2W
- Reliable safety:according to IEC834-1 requirement
- Shape size:48mm*48mm*78m
- Install size:45mm*45mm

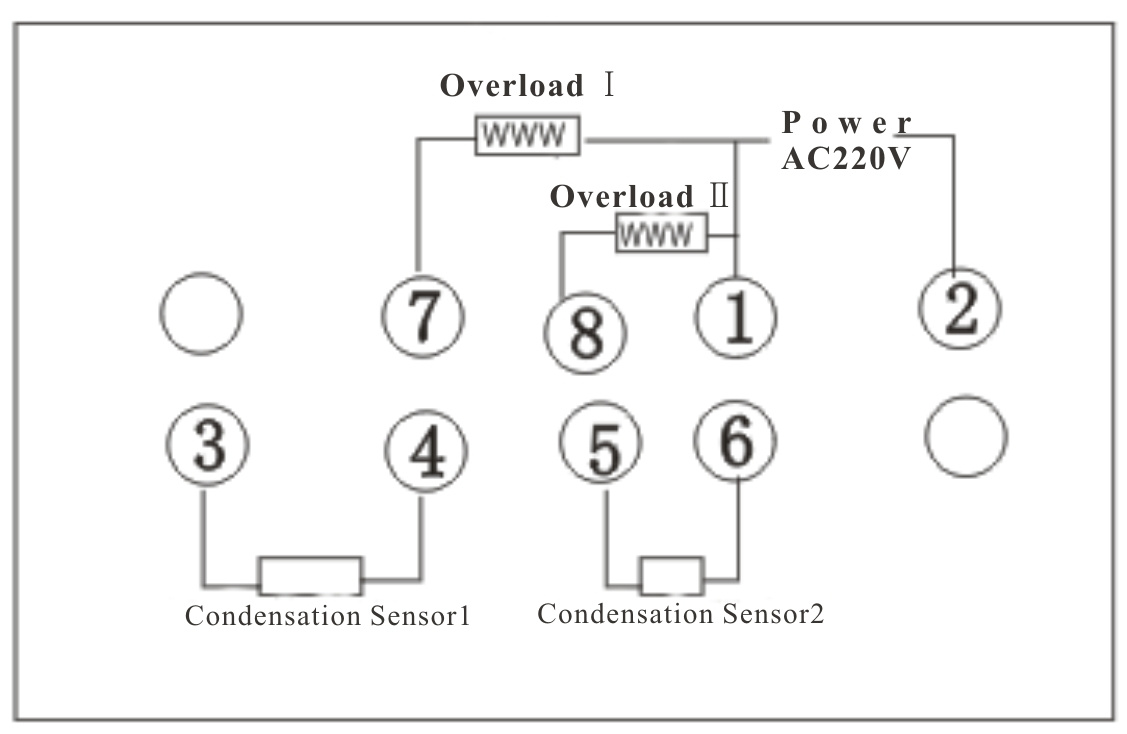

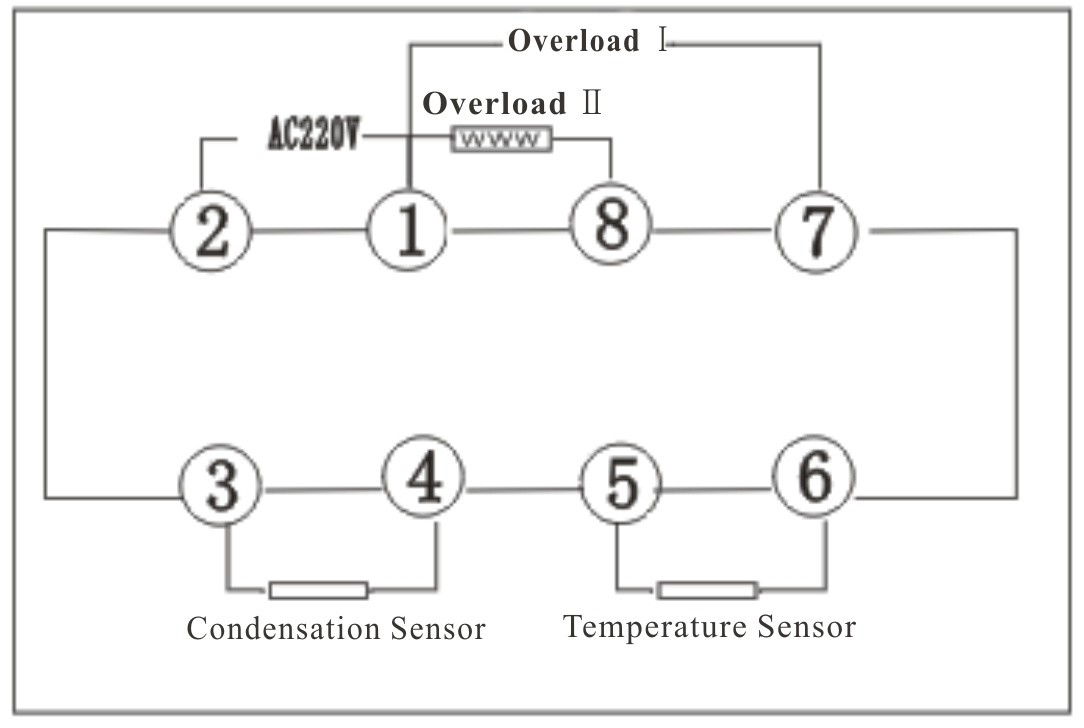

Installation &Wiring Diagram
The installation of the controller

Panel Installation

Din rail Installation

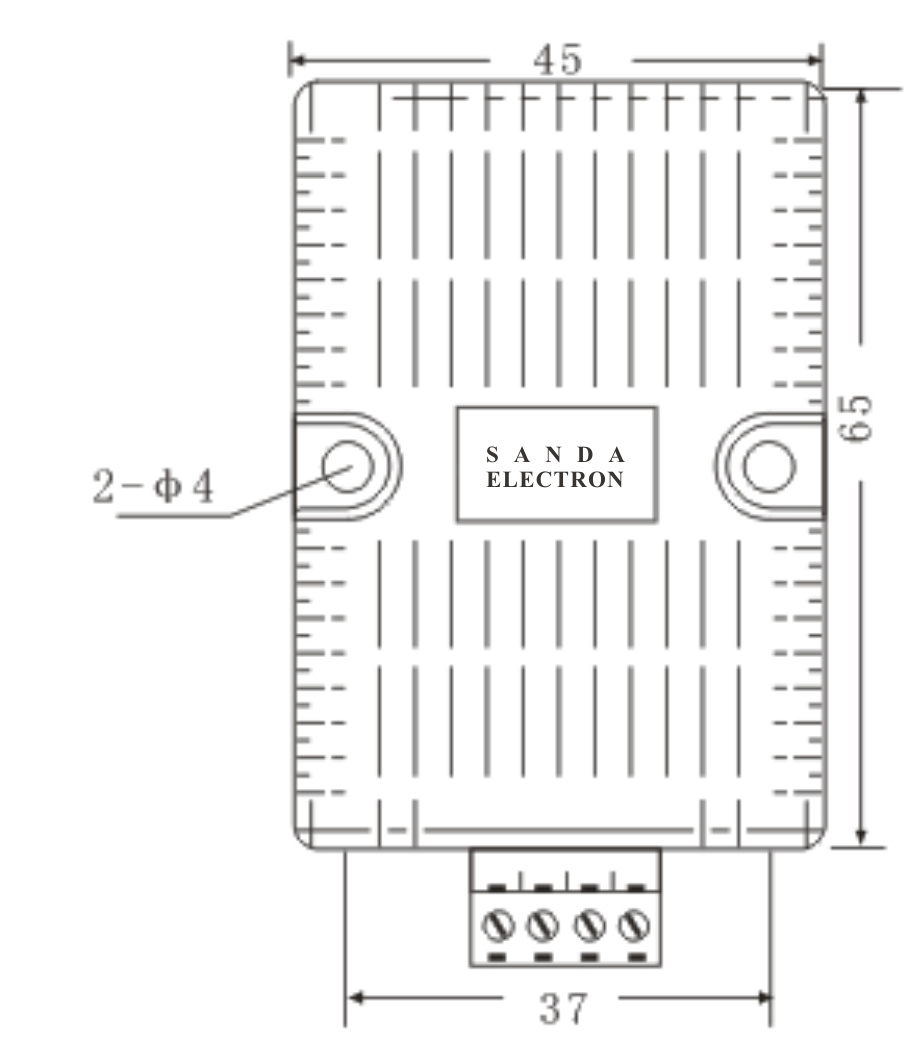

Condensation Sensor Installtion
1) Use 4mm screw to fix the two sides of the sensor.
2) Insert the sensor to the railway.

Company information
Zhuzhou Sanda Electron Manufacturing Co.,Ltd is a modernized high-tech enterprise engages in the research, produce and supplier of intelligent instruments for electric power grid and switch cabinet.
We design,produce and sell:
1. Multi-function electric meter, multi-function network meter, multi-function harmonic meter, digital ammeter, digital voltmeter.
2.Switchgear intelligent operating devices, switch state indicator.
3.Cabinet air conditioners, thermoelectric cooling units, TEC air conditioners and dehumidifiers.
4.Temperature and humidity controller, dry-type transformer temperature and humidity controller,dry-type cooling fans.
Widely use in electricity facilities worldwide:
• Oil & chemical, mechanical
• Construction and are applicable for terminal body.
• High voltage switch cabinet, substation.
• Low voltage box
• Low-voltage AC power distributing cabinet
• Low voltage cabinet.


Zhuzhou Sanda Electronic Manufacturing Co., Ltd is a high-tech enterprises who engaged in electrical power systems and industrial automation products.
Our company integrates development, design, production, sales and service as one of the operating entity. Our main products include: Digital meters, multi-function meters, electrical quantity transducer, intelligent dehumidifier, integrated protection relay system, intelligent back-end monitoring system, intelligent control device for switch cabinet, temperature and humidity controller, electric heater, motor protector, over-voltage protection device and microcomputer with associated products and so on.
Products have been widely used in metallurgy, petrochemical, electric power, construction, machinery, power plants, water conservancy, transportation and other fields, and our products reach a high reputation from our customers. We have a group of experienced & professional technical engineering staffs, with a high starting point, high technology, by constantly absorbing the latest international technology and design concept, and actively learn to market demand, to establish a long-term strategic partnership with customers. The company has always pursued the "quality is life, credibility is the guarantee, the user is God, " provide with professional, fast, excellent, safety and after-sales service.
The company has the leading testing and calibration equipment and the establishment of a modern management system. Perfect technology, strict production process, to ensure product quality and safety. The company has passed ISO9001 quality management system certification, the product passed the National Relay Protection and automation equipment quality supervision and inspection center testing, and obtain a certificate. The company also received a number of product patents, "Hunan famous trademark", "love enterprise" and other honorary titles.
Service innovation, the pursuit of excellence" is the purpose of Sanda, we will as in the past to adhere to the "people-oriented, positive enterprising, harmonious development" concept of talent, to provide "safe, accurate, high-quality" product demand for power transmission field demand, and make the greatest contribution to China's intelligent power distribution products manufacturing industry.
Corporate culture:
Goal: The global leading brands of smart grid equipment suppliers!
Mission: To make electricity safer and more intelligent!
Values: Employee happiness, customer appreciation, dedication to the community!
Five executive power: Absolute obedience, the courage to take responsibility, no excuse, act immediately, to create excellence.
Spirit: Integrity, tolerance, respect, pursuit, transcendence, innovation
Motto: To be as good as gold, to be perfect.
Product concept: Safety, accuracy, high quality.
Criteria: Strict implementation, strive for perfection.
Declaration: We are honest and trustworthy, harmonious and development; Diligence, sharing success; We forge ahead, to achieve the ideal; We are closely united, create brilliant; Our ability and customer satisfaction to achieve self value; We use a sincere attitude and effective action to return society.

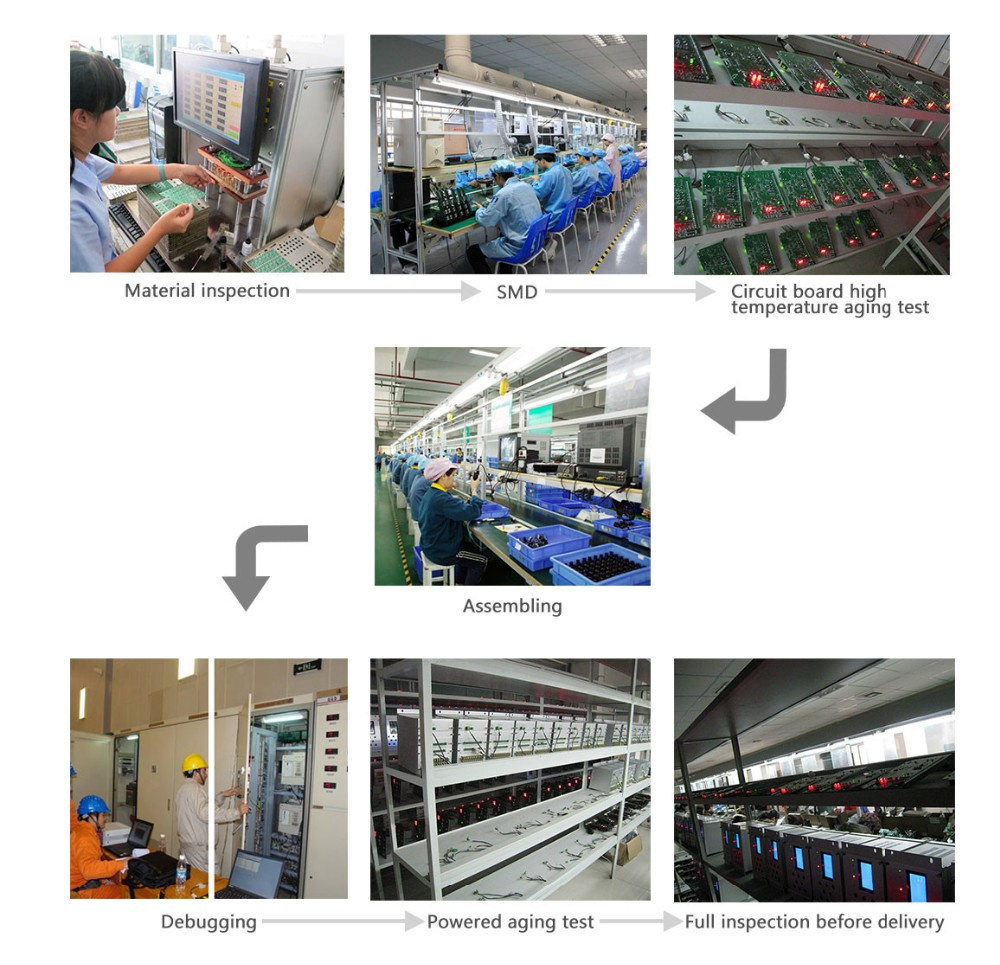

Process quality
According to the "leading technology, strict selection and excellence" quality policy twelve words, solid backing to establish a sound scientific management system for quality assurance, strict implementation of ISO9001: 2008 quality management system, and through certification. The introduction of advanced inspection equipment, according to the national standards for the establishment of a comprehensive test of safety performance, to ensure that all the products have passed strict inspection to ensure that the product pass rate of 100%.
