Two Female to One Male UHF Connector Adapter

Name: Two Female to One Male UHF Connector Adapter
Brand: all-electronics-online.com
SKU: 748006215
Availability: InStock
Rating: 5 (27 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DOSIN-808-0008
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Three Coaxial Connector
Coupling Mechanism:	Threaded Connection
Classification:	Male and Female
Interface Type:	UHF Coaxial Connector

Product Description

Two Female to One Male UHF Connector Adapter

UHF series are a variable impedance connector designed for low frequency operations 600KHz to 300MHz. This very large connector is used almost exclusively for radio and UHF applications. The low cost design of UHF connectors often results in impedance varying between 30-40Ω causing significant reflections above 300MHz. Despite this, the connector remains popular with CB/UHF (477MHz) users.

Major Technical Characteristics
Electrical
Impedance	Non-constant
Frequency Range	0-300MHz
Voltage Rating	500 volts peak

Temperature Range
Mica-Filled Phenolic Insulators	-55ºC to 149ºC
TFE Insulators	-65ºC to 165ºC
Copolymer of Styrene and Polystyrene Insulators	-55ºC to 85ºC
Weatherproof	Except as noted, all UHF are non-weatherproof

Mechanical
Mating	5/8-24 threaded coupling
Cable Affixment	Braid solder, set screw, clamp and crimp
Application	Antennas, Military, Public Address Systems, Low-Frequency Applications

More Electrical Connectors

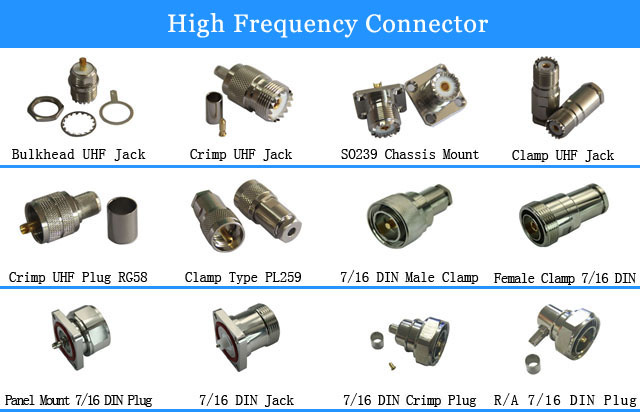

Renhotec offers many types of UHF connectors. PCB mount UHF female connector/ UHF VHF male cable connector/Flange chassis mount UHF SO259 connectors/ Straight right angle UHF SO259 connector/ Crimp solder UHF connector,etc. If you can't find the exact model you need, please don't hesitate to contact us!
