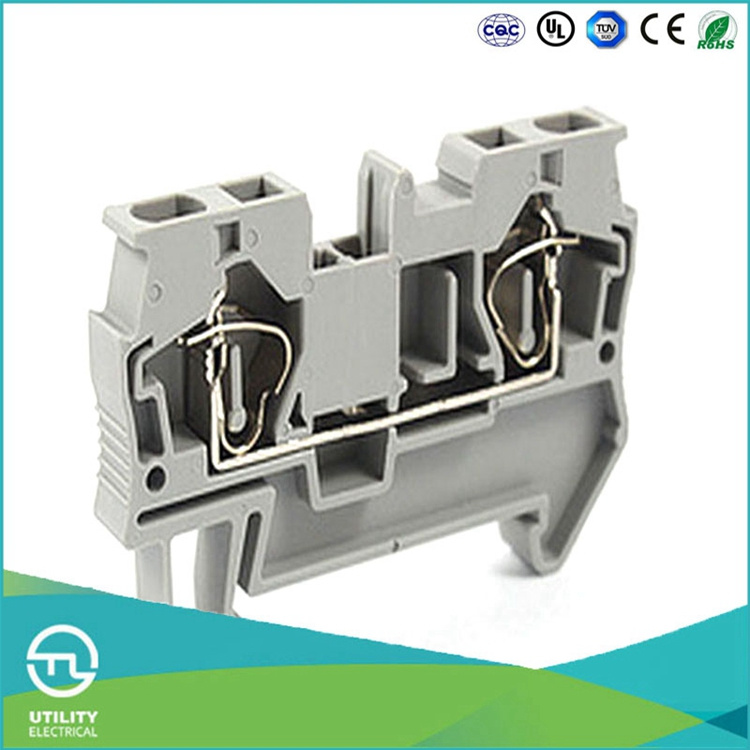

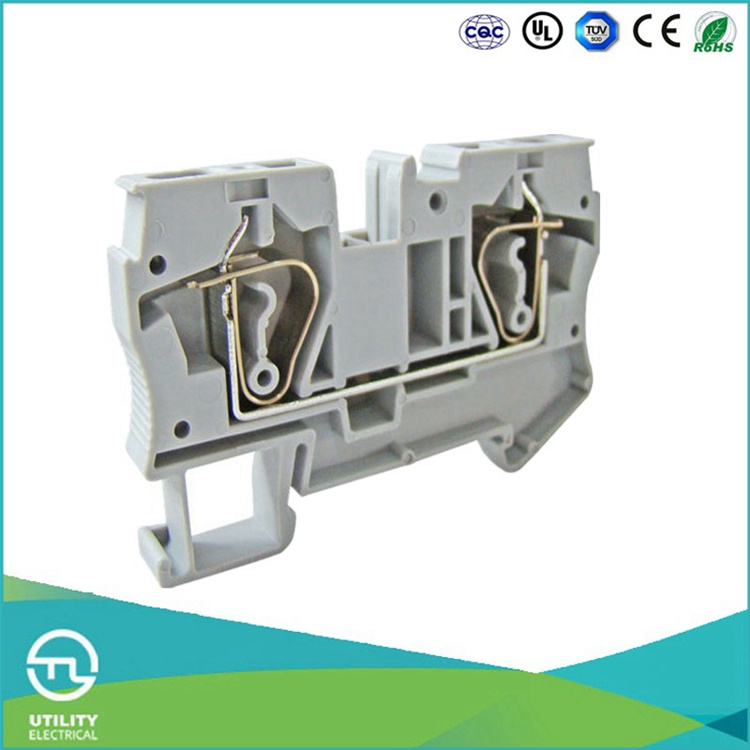

Two-Lead Through Landing Terminal Blocks Jut3-6 Cable Connectors

Two-Lead Through Landing Terminal Blocks Jut3-6 Cable Connectors
Price: US $ 0.349/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: JUT3-6
Application: Conduct Electricity
Type: Spring Type Terminal Blocks
Material: PA66,Copper,Brass
Certification: TUV Ce
Brand: Utl

Product Description

Din Rail Terminal Connector

Parameter

AWG24-8
thickness8.2mm
width 65.5mm
height 43.5mm
rigid cable 0.5-10mm
solf cable0.5-65mm
current 57A
voltage 800V
certificationUL RoHS VDE






TWO-LEAD THROUGH LANDING TERMINAL BLOCKS Spring type JUT3-6 CABLE CONNECTORS CONDUCTOR 57A


Company Information

UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .

   The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.

UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .

   The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.





Brief Introduction

1. Terminals with universal mounting feet which can be installed on the U- rails NC 35 and

    G -type rail NC32 .

2. Closed screw pilot holes to ensure ideal screwdriver operation .

3. For a plurality of cross-sectional level of terminals equipped with a unified attachments,

    such as the end plates, packet separator.

4. Potential distribution through a fixed bridge or insert line access terminals central cavity

    side plug -in bridge .
