Two Thermostats DIN Rail Temperature Controller Thermostat 110V

Name: Two Thermostats DIN Rail Temperature Controller Thermostat 110V
Brand: all-electronics-online.com
SKU: 727868002
Availability: InStock
Rating: 4.9 (97 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KT0011

Product Description

Product Features:

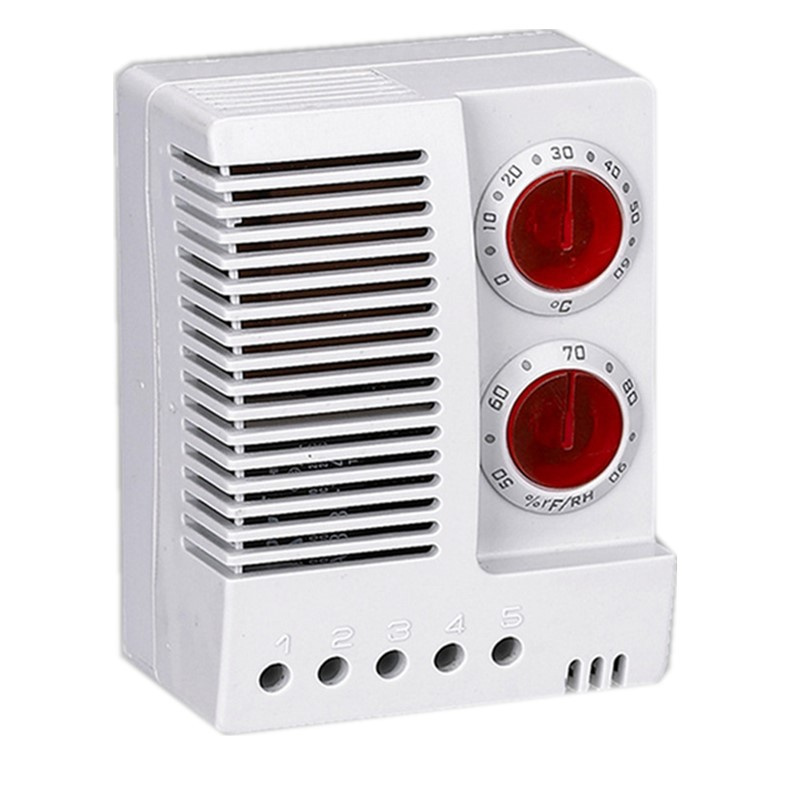

The electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electrinic components, and turns on a heater (or alternatively, a fan) at either set point, helping prevent the formation of condensation in the enclosure.

The LED in tegrated in the adjustment knob on the active controller is lit when the connected device is in operation.

Switch difference (temperature)	2K (± 1K tolerance) at 25°C/77°F (50% RH)
Switch difference (humidity)	4% RH (± 1% tolerance) at 25°C/77°F (50% RH)
Reaction time (humidity)	5 sec.
Contact type	change-over contact (relay)
Service life	NC: 50,000 cycles
	NO: 100,000 cycles
Max. Switching capacity (Relay output)	NC: 240VAC, 6 (1) A
	NO: 240VAC, 8 (1.6) A
	NC: 120VAC, 6 (1) A
	NO: 120VAC, 8 (1.6) A
	24VDC, 4A
Optical indicator	LED
Connection	5-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN60715
Casing	plastic according to UL94 V-0, light grey
Dimensions	77 x 60 x 43mm
Weight	approx. 0.2kg
Fitting position	vertical
Operating/Storage temperature	0 to +60°C (+32 to +140°F) / -20 to +80°C (-4 to +176°F)
Operating / Storage humidity	max. 90 % RH (non-condensing)
Protection type	IP20

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
