Two Times Spilit Core Transformer (GWSB0819)

Name: Two Times Spilit Core Transformer (GWSB0819)
Brand: all-electronics-online.com
SKU: 676799292
Availability: InStock
Rating: 4.7 (113 reviews)

Price:	US $ 12.9-19.6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWSB0819
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Low Cost Split Core Design:	Safer Easier to Installation
Test Standard:	IEC 60044-1
Operating Temperature:	-15 to 60 Degree
Withstand Voltage:	3000V AC
Case Material:	UL Flame Retardant Rating 94-V0
Accuracy Class:	Class 0.5, 1
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

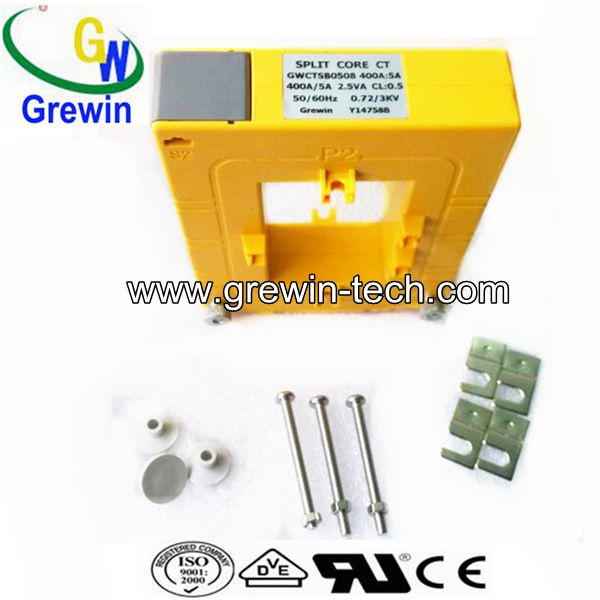

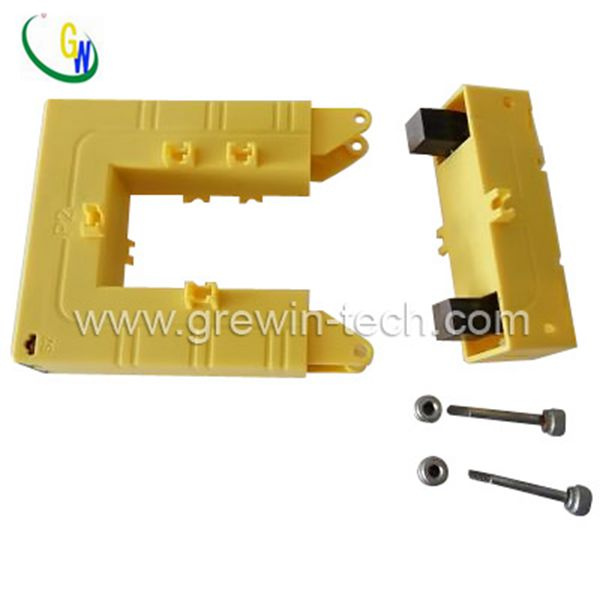

The GREWIN CTSB series of split core style current transformers are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without disconnecting cables or busbar circuits for CT installation. This method permits a safer, easier and portable current measurement.

1. Applications:
Current, power, energy, monitoring devices;
Relay protection devices;
Power Factor Correction devices.

2. Specifications:
Rated Primary current: 100-5000AAC;
Rated Secondary current: 5 or 1AAC;
Rated load: 1, 2.5, 5.0, 10, 30VA;
Accuracy: 0.5, 1.0, 3.0 Class;

3. Rated Short-time thermal current (Ith): 20In
Rated Dynamic current (Idyn): 2.5Ith;
Case Material: UL flame retardant rating 94-V0;
Highest Voltage for Equipment Um (RMS): 720 Vac;
Rated Power-Frequency Withstand Voltage;
(RMS): 3, 000 Vac
Frequency Range: 50/60Hz;
Operating Temperature: -15 to degree;
Standard: IEC 60044-1.

Contact info :

Tianjin Grewin Technology Co., Ltd
Contact:Victor Dong
M: 86-13820617229
T:86-22-84943756
F:86-22-85909471

Website: http://www.grewin-tech.com/

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.
