Prod Model: |
VT900 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Free GPS Tracking Platform: |
Car Security |
Warranty: |
2 years |
GPS Chip: |
ublox 7 |
GSM Chip: |
quectel M35 |
Is Customizable: |
Yes |
Protocol: |
opened |
Two Way Communication: |
Yes |
Input Port: |
5 |
Output Port: |
5 |
Analog Input : |
2 |
Product Description
Two Way Communication SOS alert BUS GPS Tracker in Mexico VT900
(2 years warranty *Free tracking platform *Technical support and after-sale services lifelong )
Product Description

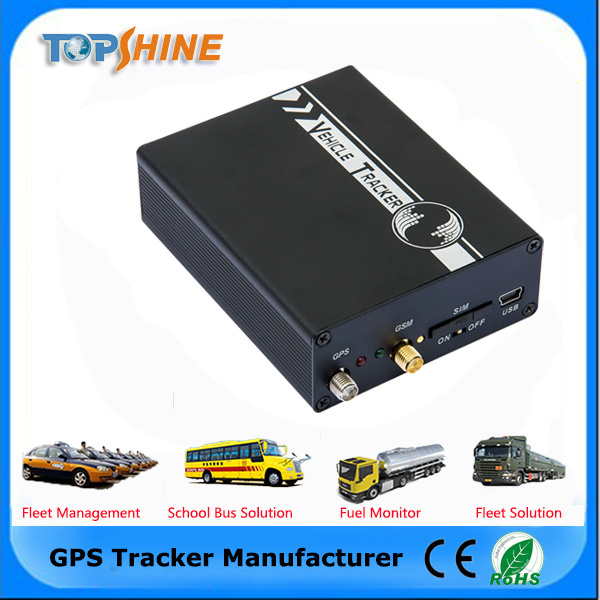

VT900 is an advanced GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GSM modules, VT900 has good sensitivity and stable performance. Especially, VT900 is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customer or manage their fleet. It is a fully function tracker that supports camera and voice prompt/broadcasting functions and has strong expansibility and customization ability.

Application
* Vehicle Tracking
* Fleet Management
* Equipment Security
* Asset Tracking
* RFID alarm(optional)
Specification
Items | Specifications | |
Dimension | 105*75*30mm | |
Weight | 180g | |
Input voltage | DC 9V~36V/1.5A | |
Back-up Battery | 950mAh/3.7V | |
Power Consumption | 65mA standby current | |
Operating Temperature | -20°C~75°C | |
Humidity | 5%~95% | |
Work Time | 43 hours in power-saving mode and 10 hours in normal mode | |
LED | 2 LED lights to show GPS, GSM status | |
Button | 1 SOS and 1 power on/off | |
Microphone | Default | |
Speaker | Optional | |
Camera | Optional | |
Memory | 4MByte | |
Sensor | Motion sensor | |
GSM Frequency | GSM 850/900/1800/1900MHz | |
GPS Chip | ublox 7 | |
GPS Sensitivity | -159dB | |
Positioning Accuracy | 10meters, 2D RMS |
I/O | 5 Input 5 Output 1 Camera Port 2 Analog Input 1 RS232 Port 1 MIC & Speaker Port |
Functions
* Two way positioning, still show position on map when there is no GPS signal or GPS antenna is cut
* GSM jamming detection, anti jamming * Harsh acceleration/braking alert * OTA(over the air upgrading) * Microphone and speaker for two way communications (optional) * Read data out from car ECU via OBD2 connector (optional) * Smart phone RFID/passive RFID for anti-theft alert and driver identification (optional) * Remotely cut off engine
* Fuel sensors, monitor petrol level ,stole oil alert ,fuel report (Optional) * Crash sensor for accident alarm (optional)
* unlock /lock car door
* Power saving design, save GPRS data flow
* SOS panic button for Anti-robbery
* 6 authorization alarm phone numbers
* Inbuilt 4MB data logger for GSM/GPRS blind area
* Real time tracking by SMS/GPRS (Web Platform)
* Ublox7 GPS industrial high sensitive module
* Get real time street name / Google map link by SMS
* Movement Alert, Geo-Fence Alert, over-speed Alert, external power cut off alarm
* With 850mAh inbuilt rechargeable battery
* Detection battery consumptionPicture

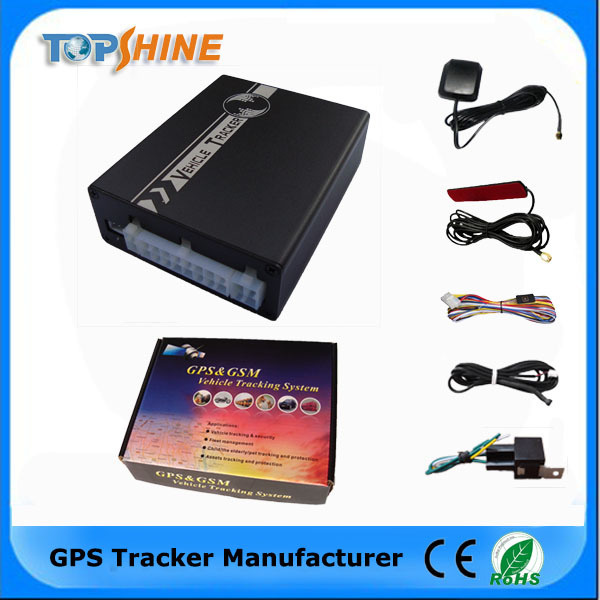

Packaging & Standard Accessories
1.Main unit
2.GSM antenna
3.GPS antenna
4.SOS button
5.Microphone
6.Relay(12V/24V)
7.Wiring

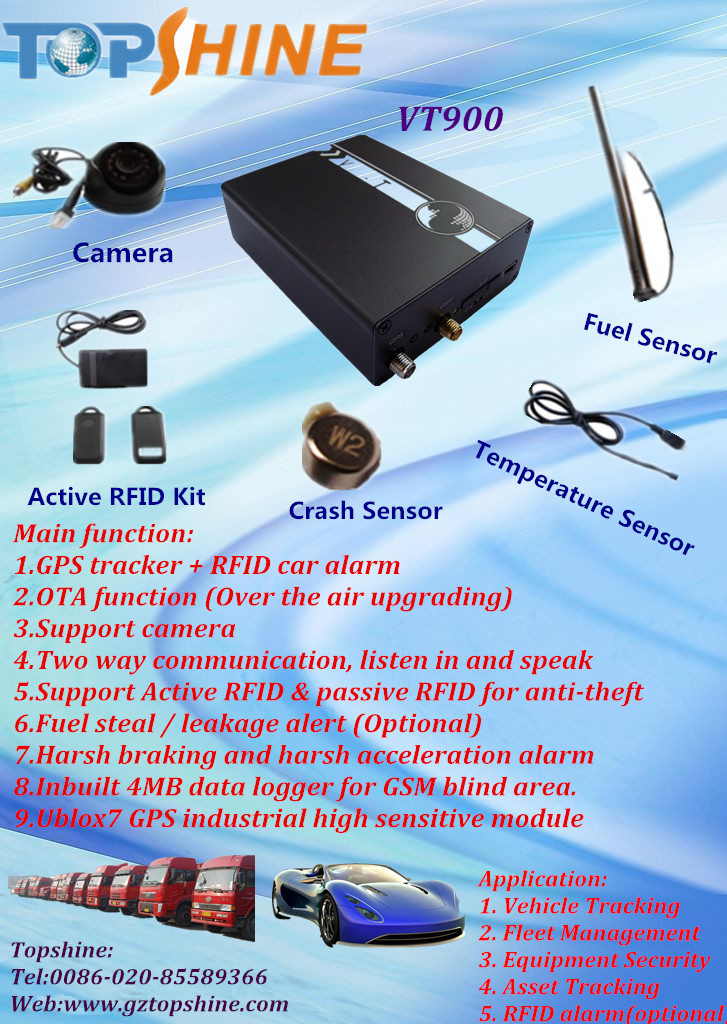

Optional Accessories
Camera
Fuel sensor
Temperature sensor
Passive RFID kit
SD card
Crash sensor
Smart phone reader
OBDII
Door sensor
Alcohol Sensor
Speed Limiter Welcome to test our free tracking software
web base : www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: test1
Password: 123
Web base GPS tracking platform information

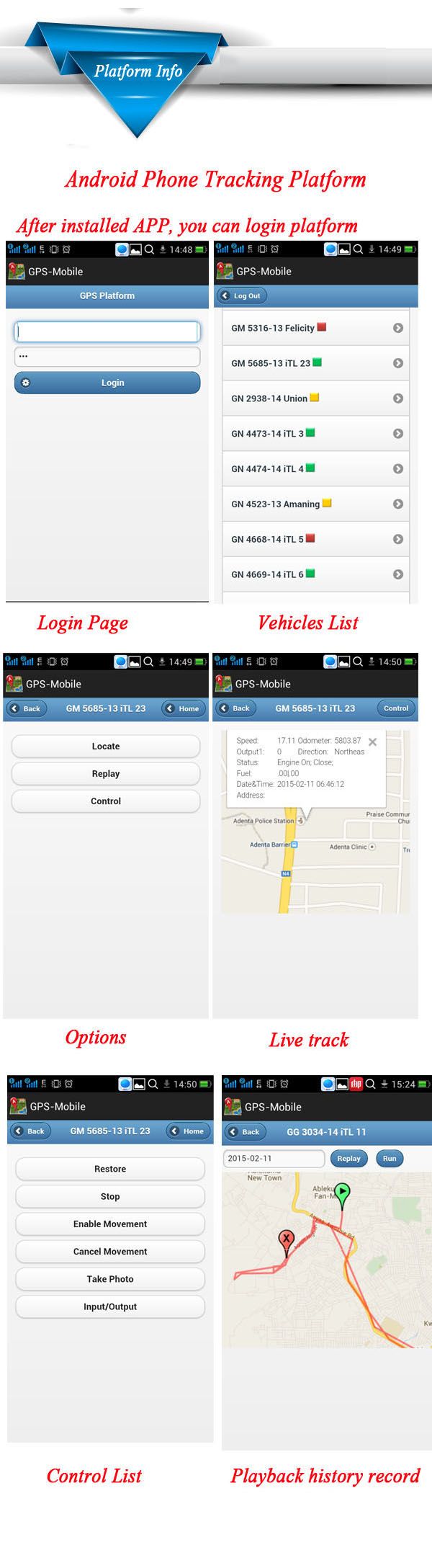

Android APP GPS tracking platform

Our advantage
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
