Prod Model: |
VT900 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Free Tracking Platform: |
Yes |
Power Supply: |
+9V~36V/1.5A |
Warranty: |
Two Years |
Backup Battery: |
850 mAh |
Frequency: |
GSM 850/900/1800/1900 MHz |
Camera: |
Snap The Photo Automatically |
Flash Memory: |
4MB Data Logger |
Two Way Communication: |
Speaker & Mic |
Two Way Locate: |
GSM + GPS Mode |
Over Speed Alarm: |
Support |
Product Description
Two Way conversation GPS Tracker with Cut External Power Alert
Topshine engineer team have developed TWO-WAY location function into GPS tracker, we can achieve GPS tracker are tracking inside the building/ tunnel/ garage/ subway etc..... that's mean we can track the vehicle when lost GPS signal or GPS antenna was damaged or GPS was jammed etc.
The other biggest improvement is cool start the device, it can be very fast locate in 15s and traditional cool start will take 30s to 180s to finish the locate on map.

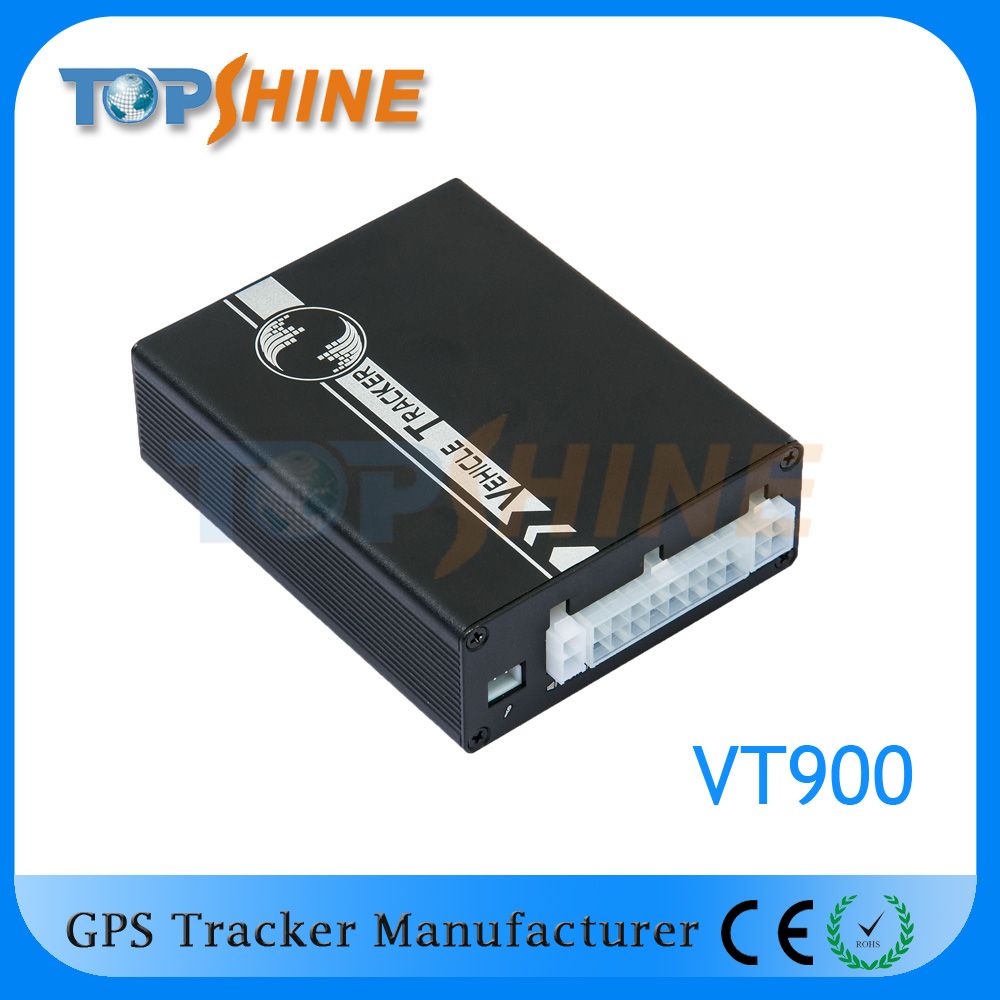

Products Overview Topshine tracker VT900 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera (location&driving information log on picture); Bidirectional communication; Support unique passive RFID for automatic anti-theft and driver identification; And many useful functions and extensibility for fleet management and vehicle security purposes.
Application
* Vehicle Real Time Tracking
* Car Security/Anti-Hijack
* Comprehensive fleet management
* Two way conversation tracker
* Camera RFID tracker
Specifications Items | Specifications |
Dimension | 110*80*30mm |
Weight | 180g |
Input voltage | DC 9V~35V/1.5A |
Back-up Battery | 850mAh |
Velocity | 515 meters/second (1000 knots) max |
Operating Temperature | -20°C~75°C |
Humidity | 5%~95% Non-condensing |
Altitude Limit | 18,000 meters (60,000 feet) max |
LED | 2 LED lights to show GPS, GSM status |
Cold start | 42sec., average |
Hot Start | 1 sec., average |
GSM Frequency | GSM 850/900/1800/1900MHz |
GPS Frequency | L1, 1575.42 MHz |
GPS Chip | Latest GPS SIRF-Star III Chipset |
GPS Sensitivity | -158dB |
Positioning Accuracy | 10meters, 2D RMS |
C/A Code | 1.023 MHz chip rate |
Channels | 20 channel all-in-view tracking |
Velocity Accuracy | 0.1m/s |
Time Accuracy | 1 us synchronized to GPS time |
Default datum | WGS-84 |
Reacquisition | 0.1 sec., average |
I/O | 5 Input 5 Output 1 Camera Port 4 Analog Input 1 USB Port 1 MIC& Speaker Port |
Features * Tracking by SMS/GPRS (TCP/UDP)
* OTA Function
* Engine on/off detection
* Remote Engine cut off
* Built-in backup battery
* Wiretapping/remote listening
* ARM9 high speed microcontroller
* Two way communication (Listen & Speak)
* Real time tracking via the web-platform
* Get position location via call/SMS
* Photo with location & driving information log function
* Get location physical name via SMS & from the web-platform
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Built-in 4MB memory & position logging capacity up to 26, 000+ waypoints even no GPRS signal
* RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc)
* Analog input for Fuel sensor detecting/monitoring, support max 4 fuel sensor manageMore alarm function * Accident alarm
* Oil leaking/Refuel Alarm
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Suddenly acceleration/brake alert

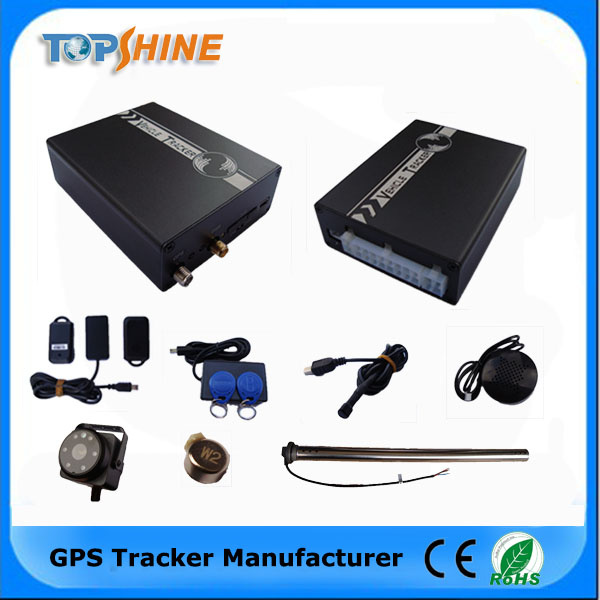

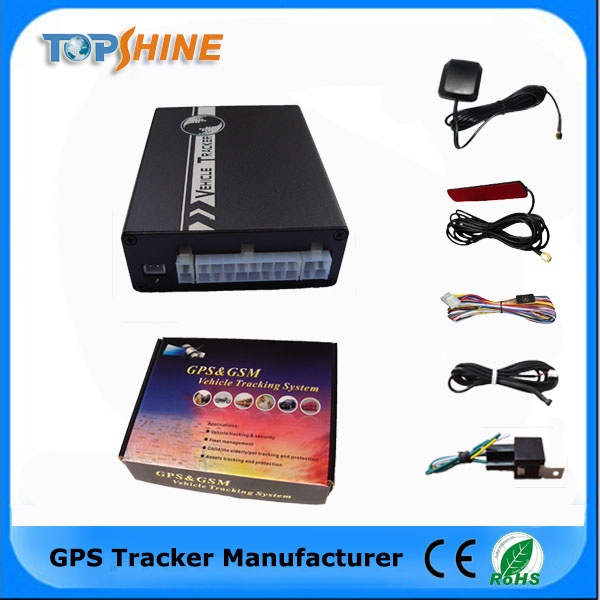

* Harsh braking and harsh acceleration alertAccessories list Standard Accessories |
Main unit | SOS button |
GSM antenna | Microphone |
GPS antenna | Relay |
Wiring | |
Optional Accessories |
Cuttable Fuel sensor | Ultrasonic fuel sensor |
Temperature sensor | Crash sensor |
Active RFID | Active RFID Tag |
Passive RFID | Passive RFID Tag |
Speaker | Camera |
USB configuration cable | Siren |

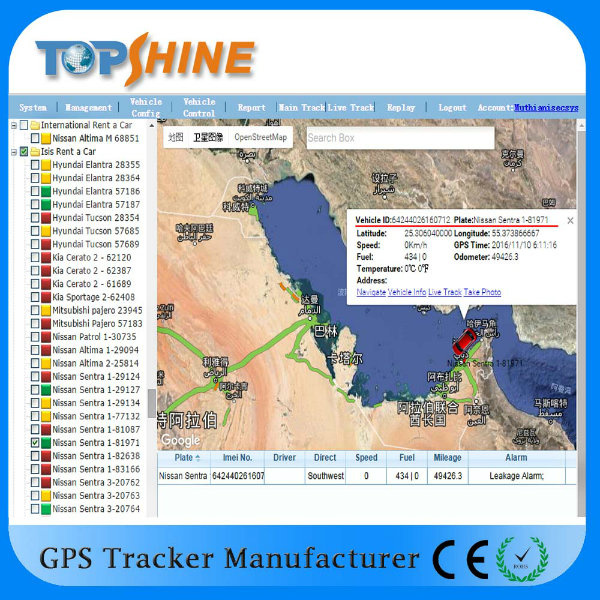

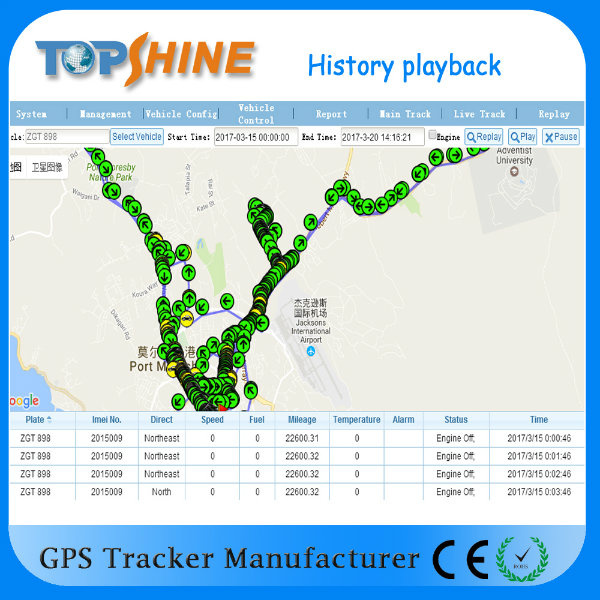

Welcome to access Topshine GPRS01 tracking software:
Tracking platform site: www.track-car.com
Username: hongkong
Password: 123Advanced function of GPRS01 tracking platform:* Provide API
* More stable & easy expansion
* Flexible configuration menus and assign power for certain user
* Icon can show 8 direction
* Events reminder ( maintainance alert, expired alert, odometer alert etc )
* Cell phones scan the QR code to download APP
* Directly manage Nevigate, Live Track and take photos
* Show GEO-fence and POI in the main track
* Flashing icon to show alarm status
* Provide customer demand for customization

What can we do for you:- Any inquiries will be replied within 12 hours on work day.
- Professional manuafacurer and wholesaler for 10 years.
- OEM available:
- Customized logo or color box
- We can help you to design and put it into production about your idea.
- High quality, fashion design, reasonable&competitive price, fast lead time
- After-sale service:
- All products will have been strictly Quality checked in workshop before packing
- All products will be well packed before shipping.
- All our products have 24 mouths warranty, and we are sure our products will be free from maintenance
- Fast delivery:
- Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order
- Payment:
- payment for the order via: T/T , Western Union and Paypal
Topshine Advanced Solutions
It is welcome to help you customize a pecial product with your company advantage and unique.
Just keep us posted with your new ideas, our high experienced engineers will try their best to help you achieve.
Fuel tracking solution: Monitor the fuel tank / capacity with SMS / GPRS alert.
Driver behavior management solution: harsh accelerate or braking, drive for private purposes, fuel stealing, idle alarm, task scheduling, etc.
FAQQ: Why the tracker can't be switched on?A: 1. Check if wiring is correct or not.
2. Charge the tracker.Q: No response to SMS commandA: 1. Wrong password. Please check your password.
2. No GSM mobile signal or weak GSM network. Try later.
3. Out of SIM credit. Please pop up.
4. SIM is damaged. Change a sim card.
5. SIM card is without sending function. Change a SIM or enable SMS sending function.
6. SIM card isn't installed properly.Q: Why there is a "Last" appearing in a positon report SMS?A: There is no GPS signal. Please take the tracker to somewhere open area.Q: How to use tracking platform?A: 1. Set GPRS parameter in Parameter.exe.
2. Set GPRS parameter by SMS.
(1) Set tracker ID: W,010,ID
(2) Set APN: W,011,APN name
(3) Set IP and Port: W,012,210.209.68,9600
(4) Enable GPRS: W,013,1
(5) Set report time interval: W,014,00000
(6) Open link www.global-track and create vehicle info in Manage - Vehicle ManageQ: How to connect Relay to cut off engine?A: Cut off fuel pump wire, connect green wire of relay with fuel pump line, connect yellow wire with relay yellow wire, connect white wire with 12V power supply line.
