| Prod Model: |
TK220-ER47 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East |
| Working Voltage: |
10-26 VDC |
| Humidity: |
0 to 95% |
| Working Temperature: |
-20 to 70 Centigrade |
| Inside Backup Battery: |
Rechargeable 3.7V 600mAh Li-ion Battery |
| Size Of The Main Unit: |
98*64*25mm |
| Power Consumption: |
Working Current: 50mA |
| Weight Of The Main Unit: |
0.16kg |
| GPS Chip: |
Latest Sirf-Star III Chipset |
| GSM Frequencies: |
900/1800MHz or 900/1800/850/1900MHz |
| Receiving Ways: |
20 Channel |
| Use: |
Automotive |
| Type: |
GPS Tracker and Alarm |
| Operating Principle: |
GPS GSM GPRS |
| Port Number: |
56 |
| Model: |
GPS Tracker and Car Alarm Tk220 |
| Screen Size: |
No Screen GPS Car Alarm |
| Carrier Frequency: |
Quad Band |
| Brand: |
Topten |
Product Description

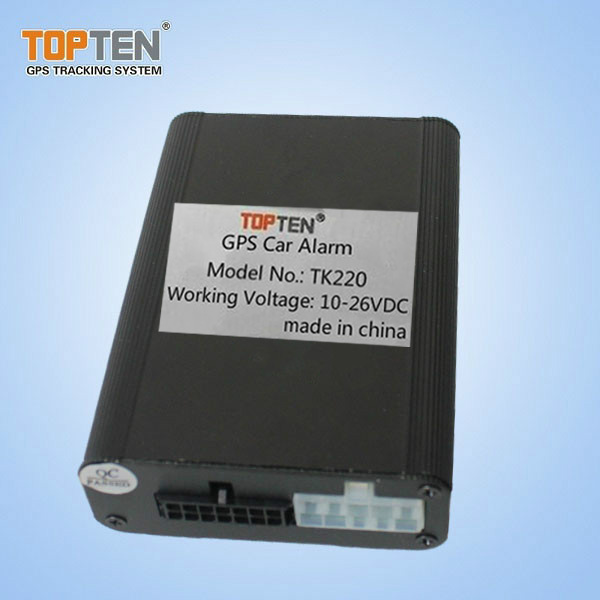

Two-way GPS car alarm and tracking system TK220-D1
1>. TK220 GPS Tracker Selling Points
1 It's a GPS tracker
1) Track on command or by time interval via SMS/GPRS
2) Live track the car by website by free.
3) Check the car's physical address( such as city name, street name )
4) Check the location by Google map's URL
5) Two-way talking (optional)& monitoring the voice and fuel level
2 It's car alarm.
1) Vibration alert, door open alert, movment alert, engine on alert& power failure alert, geo-fence alert, over-speed alert.
2) SOS button to call for help
3) Open/close car door remotely
4) Start your engine remotely by SMS(optional), cut off engine to stop the car safely by SMS/GPRS.
5) Central lock automatior, when the speed is over 30km/h, car door will be locked automatically.
6) Inbuilt 4MB data logger to store the offline GPS waypoints
2>. Features and functions
1. Arm/disarm by SMS remotely, or by the remote controller
2. Check the car's real physical address(such as city name, street name...);
3. Track by mobile SMS to get the latitude & longitude or the Google map's URL;
4. Track by GPRS data network for online tracking;
5. Track on command or by time interval via SMS/GPRS;
6.2-way talking function(optional) & voice monitoring function;
7. Vibration alert, door open alert, movement alert and ignition on alert;
8. Mileage calculation function (=odometer)
9. Cut-off external power alert;
10. Power saving mode;
11. Geo-fence alert (radius range: 0.1~99KM);
12. Over-speed alert (speed range: 1~255km/h);
13. SOS button to call for help in case of emergency;
14. Open/close car door/rear trunk remotely;
15. Start your car remotely; (optional)
16. Cut off engine to stop the car safely by SMS/GPRS;
17. Monitor fuel level;
18. Central lock automation, when car speed >30Km/h, car door will be locked automatically;
19. Inbuilt 4MB data lo logger to store the offline GPS waypoints;
20. Built-in rechargeable backup battery; When the car battery is cut off or damaged, the built-in 600mAh backup battery can work for emergency check, and the system will send out power failure alert immediately.
21. Two kinds of location information; User can check the GPS latitude, longitude, speed, direction. If there is no GPS signal, user could also locate the car by GSM base station code.
Preface
| Size of the main unit: | 98*64*25mm |
| Weight of the main unit: | 0.16 KG |
| Working temperature: | -20 to 80 centigrade |
| Humidity: | 0 to 95% |
| GSM frequencies: | Dual-band: 900/1800 MHZ
(or Quad-band: 850/1900/900/1800 MHZ) |
| GPS Chip: | Latest SiRF-Star III chipset |
| Receiving Ways: | 20 channel |
| Positioning accuracy | < =10m (wide-open area) |
| Speed accuracy | < =0.2M/S (wide-open area) |
| Positioning mode | Auto 2D/3D |
| Working voltage: | 10 to 26 VDC |
| Power consumption: | Working mode: < 50mA;
Sleep mode: < 23mA |
| Inside Backup battery: | Rechargeable 3.7V 600mAh Li-ion battery |
Tracking Software
1. Stop car remotely
2. Route planning
3. Driver management
4. Re-branding domain support
5. Support multiple maps multiple languages
6. ACC on/off status alarms, door status alarms and so on
7. Manager/User account privileges, object management.
8. Smart polygon Geo-fence zone management with different colors
9. Fuel monitoring with various fuel reports, including fuel filling, fuel theft, fuel level graph and cost
10. Driving behavior analysis reports such as speeding, fatigue, idling, parking and harsh braking alarms
11. History route replay
12. Send command to device remotely
13. Multple reports
