Price: US $ 100-299/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: PAGA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Stainless Steel
Keypad: Yes
Handset: Yes
Impact Protection: Ik09
Water Proof: IP66
Size: 227 X 293 X 135mm
Hook: Yes
LCD Display: Yes
Vandal Resistant: Yes
Lighting Protection: Yes

Product Description

PAGA Telephone Management System Two-way Communication Telephone Multi-Party Broadcasting System

Features:
 Hand in hand cable connection to save cable
 Two-way, all-party communication
 Wall mount, desktop, models
 Indoor, outdoor and hazardous location models
 Center power supply (all in one) available in 110VAC~ 230VAC within Distance Maximum to 7KM within 30 extensions
 If over 30 extensions and over 7KM, each station need AC power supply 110VAC~ 230VAC
 Automatic broadcasting with 8W loud speaker
 Analogue system auto answer and auto stop
 Self healthy check
 LCD display for caller ID and the dialing number.
 Last number repeat dial
 ID number programmable
 2 speed dialing keys

Specification:
1.  Robust SMC die-cast body, vandal resistant and tamper resistant
2.  Weather resistant to IP66 standard, service temperature range from:-35ºC to +75ºC
3.  Magnetic reed hook-switch
4.  Cable line powered. No external power or battery back up required.
5.  Lightening protection to ITU-T recommendation K.21
6.  Handset: made of special SMC, high anti-knock resistance, Weatherproof, armored cable optional,
7.  Hearing Aid compatible receiver
8.  Extension integrity wiring to enable the other station to check if the telephone unit is still operational for Self healthy checking
9.  7 minutes time out
10.  Easy installation/ replacement


Product Name:

Paging System Hospital can work without PBX (PA3) Kntech

Product model:

PA3


Industrial Duplex Multi-Party Paging Broadcasting System Uer Manual
Chapter 1 System Introduction
System Features

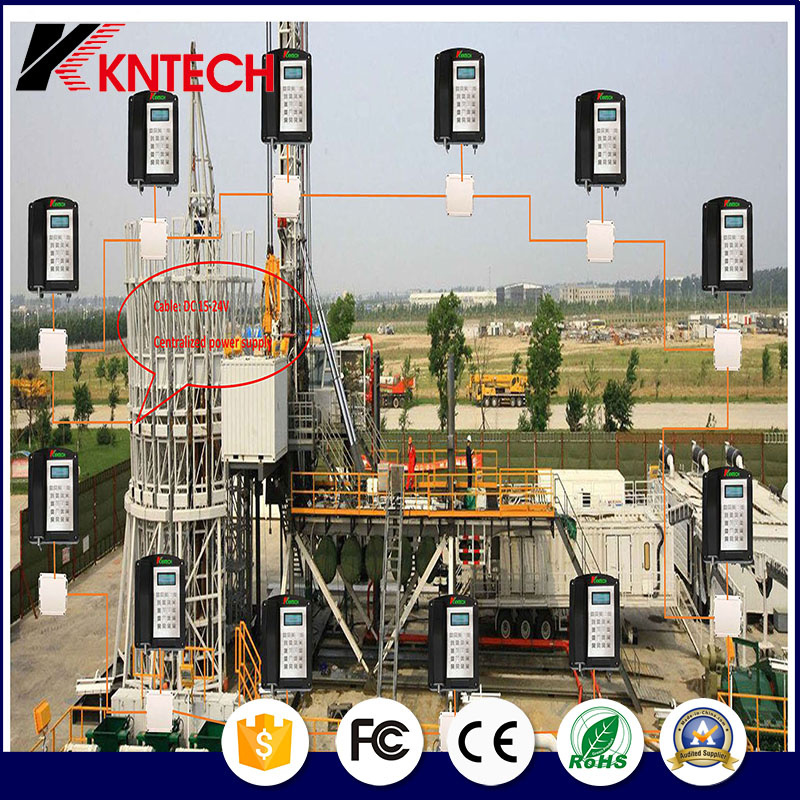

The "Multi-Party Talk" Paging system PA3 is designed for communication in industrial environments.
A: It is suitable for high noise, corrosive atmospheres, hazardous areas and extremes of temperature, dust and humidity create hostile environments.
B: The "Multi-Party Talk" system have two operations: the first one is group calling through pick-up handset and pressing one button to auto-dial; The other one is two-way private intercom  in one line or more two-way groups calling and can be allowed 12 persons communication at most.
C: The system also can be connected to external network, and the extension can call other phones outside of the network.

1. To initiate communication or broadcast over the system to all other station, the operator at one of the station lifts the handset from the cradle, presses * to call and speak to all the other party.
2. All the stations rings and auto-answers. All the other user at all other station can joins the conversation by lifts the handset and speaking into the handset. The system allows all party simultaneous conversation without cross-talk or interference. After conversation each station will auto off to release the line.
3. To initiate communication or broadcast to one of the other station, the operator at one of the station lifts the handset from the cradle, presses ID number (extension number) which you want to call, and speak to them. After conversation each station will auto off to release the line.

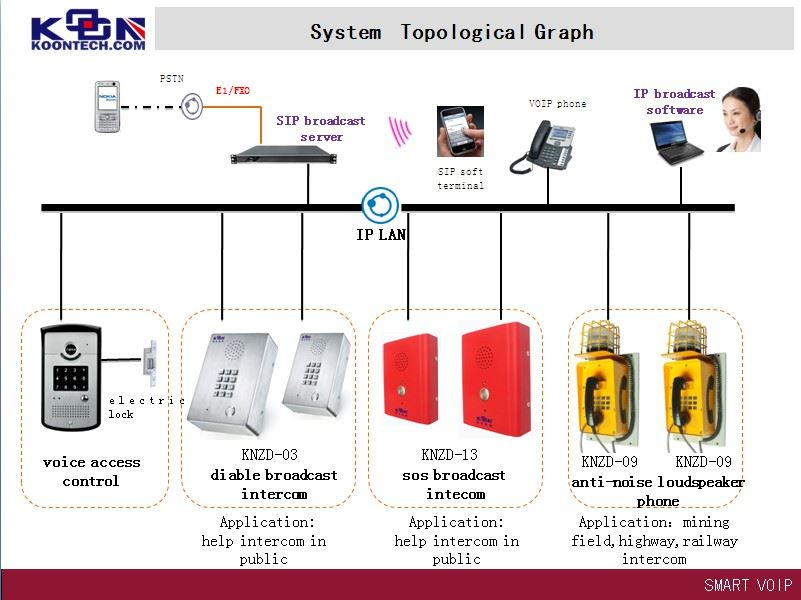

System Composition

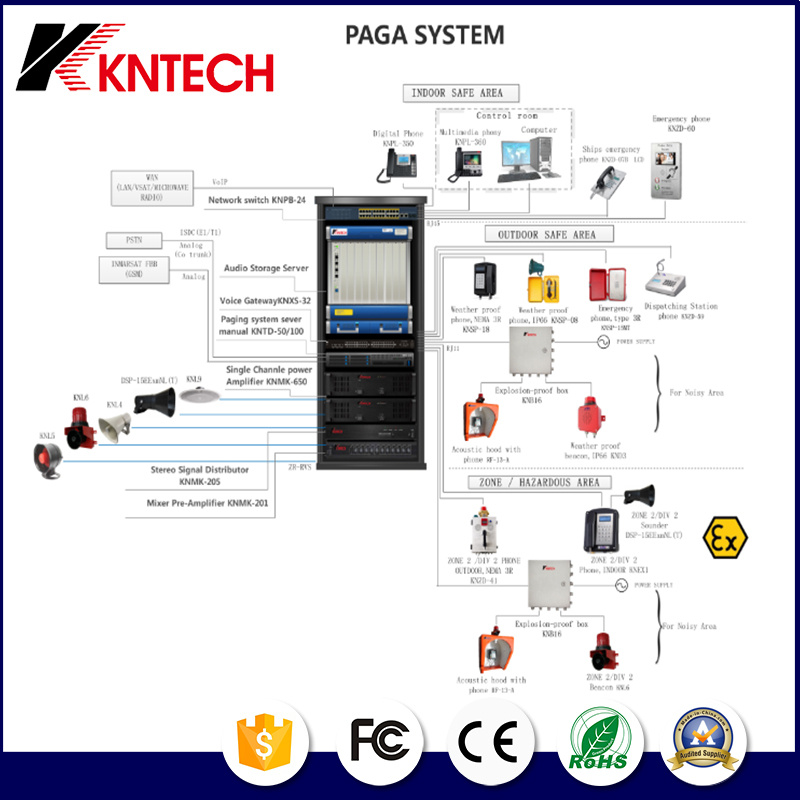

It is comprised of wall mount telephone station, desk telephone station, IIC explosion proof user telephone, outline telephone station, unidirectional broadcast telephone station, line equalizer, communication cable, AC 220V powered, etc.
System Power Supply  :AC 220V centralized power.
Telephone station type :
Indoor wall mount telephone station,outdoor wall mount telephone station,desk telephone station, IIC explosion proof user telephone, outline telephone station, unidirectional broadcast telephone station.
Telephone station Capacity system: 2~99.
Systems for the effective transmission distance: 26Km.

Technical characteristics:
A:Using Environmental conditions
Environment temperature:-30ºC~+70ºC (outside wall mounting telephone station)
-10ºC~+35ºC (inside desk mounting telephone station)
Relative humidity:≤90%
Environmental noise:≤110dB (outside wall mounting telephone station)
Barometric pressure:70Kpa~106Kpa

B:Main Features
a: Broadcasting Feature
Afer pick up the hook; 1.press L1 +outline number:calling outling.2.press L2 or L3, press #+ID number: single calling(calling by one to one). 3. Press L2 or L3, press #+99999: whole calling. 4. Press L2 or L3, press #+ group number: group calling 5. Press L2 or L3, press speed dial number at least three second. When hear the dial tone can release the button.
Open broadcast system function to make a broadcast call

b:Duplex call
After the called user pick up the hook. Caller can make a duplex calling through the handle microphone or press the hands-free button.

c.Channel switching
After the called user pick up the hook. Caller can make a duplex calling through the handle microphone.

d. Channel switching
Rotary Switches operate 3 ~ 6 communication channel selection.

e. Boardcasting mute setting
Maintainer can setting the call volume via the mute switch on the motherboard;

f.Using PSTN to make outline telephone communication
Outline user can make a boardcasting calling and communication via outline telephone station to PSTN.

g.Expansion easy to use
Each station works independently. All the telephone station work via 8-14 core cable in parallel. If any one station failure does not affect the normal operation of other user stations. Users can according demand to expand station or relocation. It's unlimited.

C.The Main Index
a. Working power supply
Power voltage:AC 220V±10% 50Hz±5%.
Power:Static state ≤3W, Dynamic time for desk telephone station ≤10W, wall mounting telephone station≤25W.

Communication Channel
Out upRMS: 2V (Load impedance 33Ω)
Output amplitude limitsRMS: 1.5V (Load impedance 33Ω)
Gain70dB Adjustable over
Frequency response250-5500Hz±3dB
Distortion degree≤5%, 1000Hz

Desk type telephone station boardcasting part
Output amplitude2W (Load impedance 8Ω)
Gainnormality 50dB, The adjustment range (40-68dB)
Frequency response250-5500Hz±3dB
Distortion degree≤5%(Test frequency: 1000Hz, Output amplitude: 3W)
Input impedance50KΩ
 Output impedance8-16Ω


The parts of outdoor wall-mounted telephone station broadcasting.
Output amplitude15W (load impedance 8Ω / 16Ω)
GainNormal 58dB, adjustable range (40 ~ 68 dB)
Frequency response250 ~ 5500Hz ± 1.5dB
Distortion≤5% (test frequency: 1000Hz, the output amplitude: 12W)
Input impedance50KΩ
Output Impedance8 ~ 16Ω

System transmission distance
 System transmission distance of the system effective transmission distance: 26Km.

The number of channels
The system has one broadcast channel, Five call channels, you can choose the communication channel by turning the switch of the call station, then up to 3 to 6 simultaneous calls to the user.at the same time.

Security
A:Dielectric strength
Then call station can withstand 50Hz, 1500V AC voltage without breakdown and arcing phenomena
B.Insulation resistance
Then call station at room temperature, the insulation resistance of  AC power connector to the metal chassis equipment not less than 2MΩ.
C. Leakage Current
The leakage current of call station is less than 3.5mA.

Structure
Desktop call station
The call station make up by the desk telephone and power junction boxes, of which  the telephone

DimensionsL: 250 (mm), W: 225 (mm), H: 115 (mm)
junction box DimensionsL: 210 (mm), W: 305 (mm), H: 125 (mm)

The telephone can external connect a 5W speaker if needed.

Outside line telephone station
Outside line telephone station junction box will be installed in control room be convenient for installation and maintenance.
Earth Wire
Indoor wall-mounted telephone station,Outdoor wall-mounted telephone station,Power supply wiring box,Cable junction box,the metal shell to be reliably grounded when installing.
 Piping, cable laying
 To meet the industrial and mining complex, harsh field environments,the cable should be metal piping laying.
 System uses special all shielded cable.
 To avoid electromagnetic interference, the wiring on the cable channel or cable tray, should avoid high-voltage, high-current, high magnetic field environment. Implementation of the relevant provisions of the communication cabling.
Using metal spring hose to connect cable pipes with terminal


system connection
 On the cable before terminals work,the core wire which is connected to the same terminal need to be compression joint by Y-shaped terminal or round-shaped terminal to ensure good conductivity properties
 Line sequence should be defined before connecting 8 to 14 core cable, to ensure that each terminal are in line with pre- defined easy on-site installation and future maintenance ;

 System connection diagram shown in Figure 7 .


The Use and Operation
Desktop phone and wall-mounted phone
Call Status
User A calls user B, remove the hanset, the system enters the broadcast call status, then all broadcast channels open, User A's call can be heard through the speakers.
Call state
User B hear the broadcast call, remove the handset, then talk with the user A duplex.

 Hook state
After the call, hang up the call two sides, release the occupied channels, and complete the entire operation. The phone possess automatic hang up function, the caller hangs up first, automatically hang up after receiving called hook signal, the user can also choose set six minutes limit call.

Broadcast volume adjustment
Control volume buttons on the keyboard ' ' to adjust the volume.

Other
The use and installation of explosion-proof phone, wireless phone users, external electrical and other telephone equipment, see the relevant instructions.

Repair and Maintenance
To protect the user's safety, please do not open a device cabinet to avoid electric shock, not all components inside the device needs to be maintained. If there is abnormal situation, please contact our company or the agency, we will be happy to serve you.

Optional phone
Our company provide a variety of special telephone, customers can choose the appropriate phone according to the actual needs, when there are special needs, you can communicate with us, and customized the phone with corresponding demand, welcome to visit our website  http://www.koontech.com to select all phones.


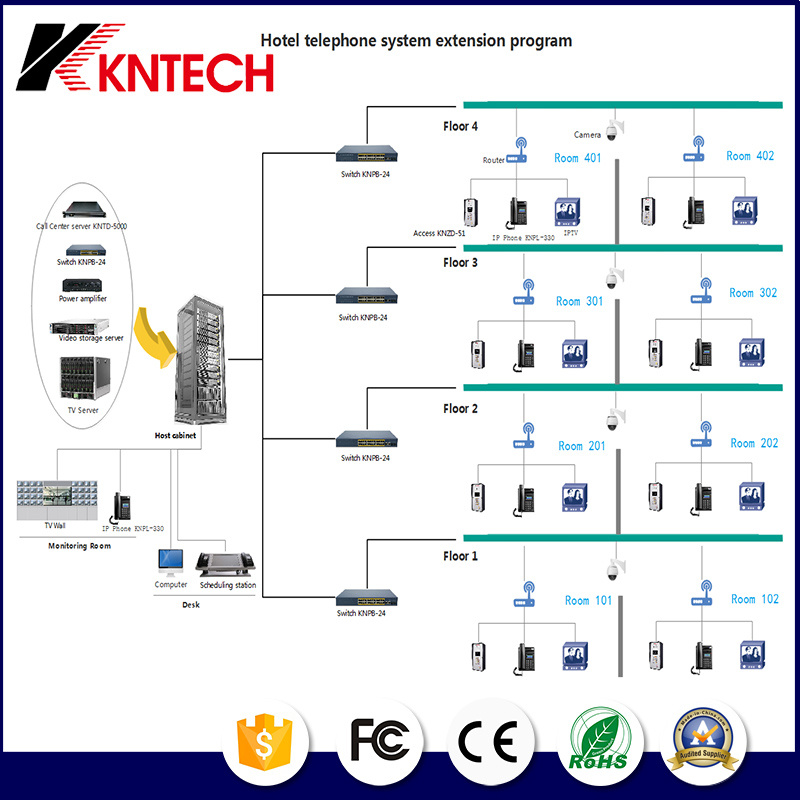

Application:

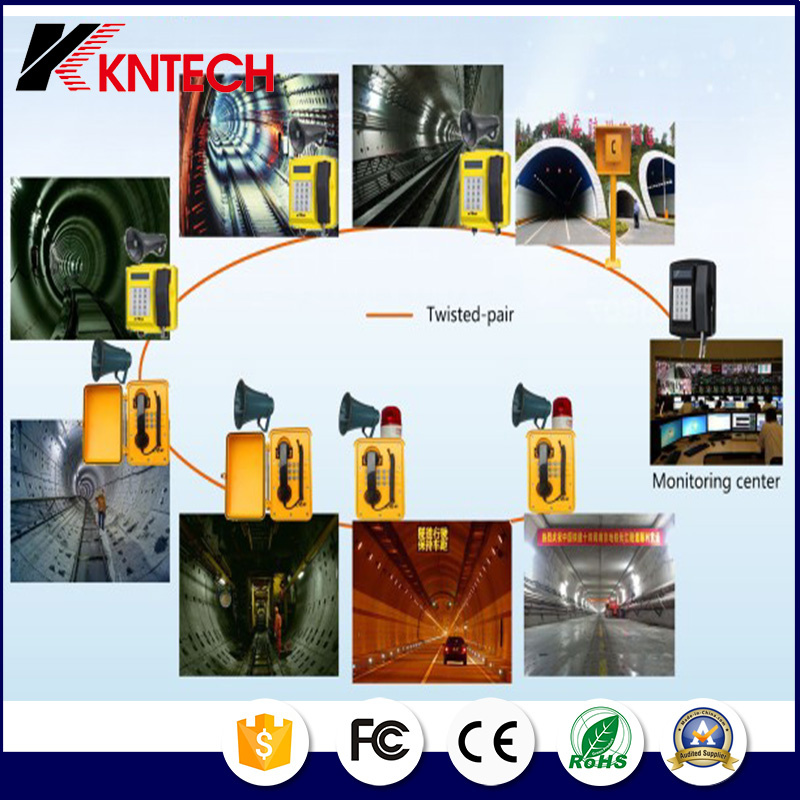

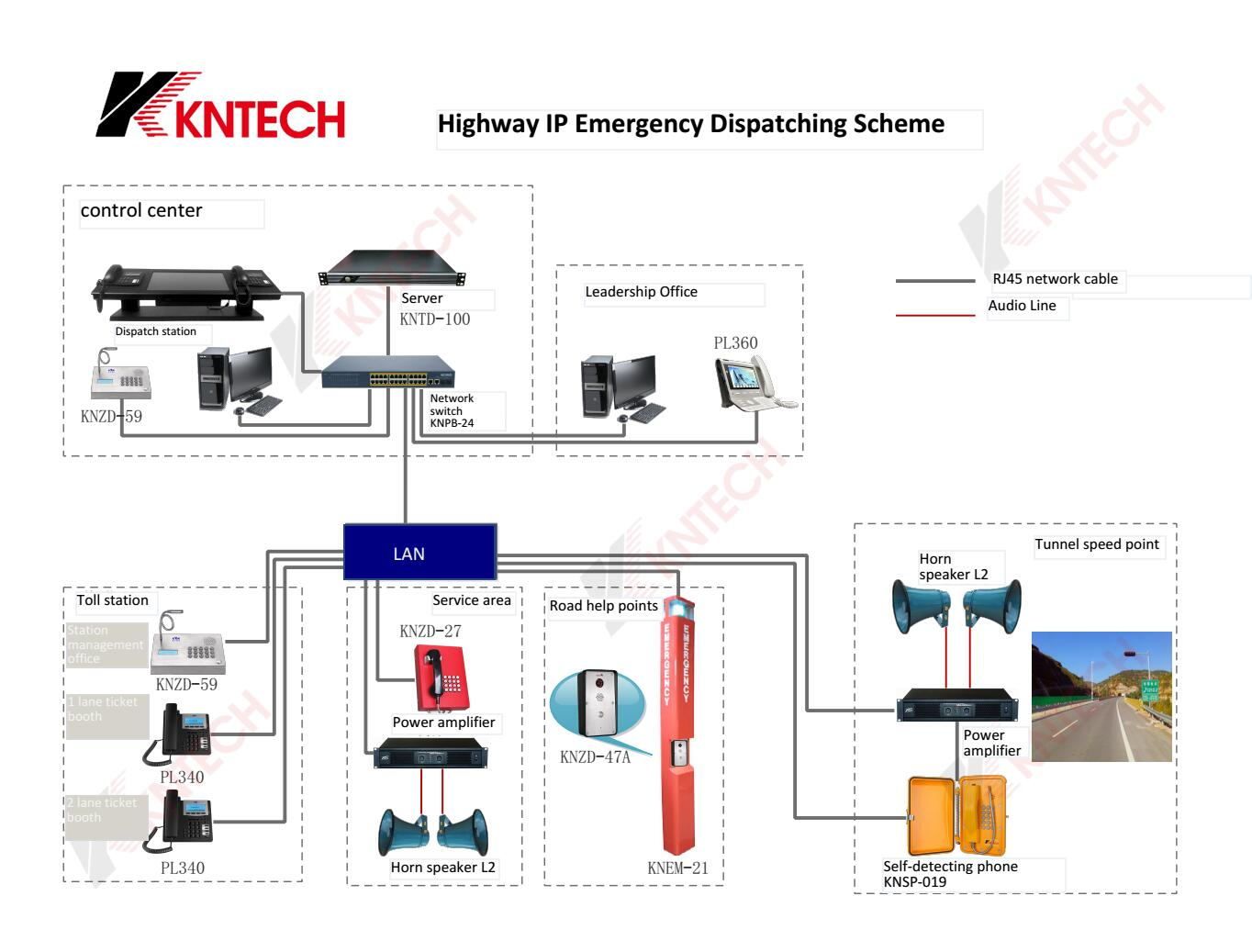

As Public telephone for indoor or outdoor, Taxi or bus stands or station, Highway call box Railway, metro, ATM machines side, Tunnel, Port, Dock, Mines, Generation facilities...
A good ideal telephone for use in wet or corrosive atmospheres
DTMF(Dual Tone Multi Frequency)
Standard and SMART Analogue and VoIP-SIP options available
Matching with most PABX, PBX and PAX systems








Autodial telephone, handset emergency telephone, handfree emergency telephone, handset free emergency telephone, Auto dial emergency phone, Metal emergncy telephone,sos telephone,help telephone, GSM telephone,help point,help phone, outdoor emergency telephone, Gaitronics, emergency call point, metal help telephone, camera phonepublic telephone, loud speaking phone, bank service telephone, elevator phone, window intercome, LCD telephone, hotline phone,talk a phone, cleanroom telephone, viking,weatherproof phone, SIP phone,voip phone, call point outdoor weatherproof phone, solar energy help phone, tunnel telephone, 2G, 3G telephone, trackside telephone, Vandal Resistant Telephone
