Txm Surface Type Distribution Box Txm

Name: Txm Surface Type Distribution Box Txm
Brand: all-electronics-online.com
SKU: 745979145
Availability: InStock
Rating: 4.7 (134 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	TXM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturer:	Original Factory
Structure:	Protection
Type:	Distribution MCB Box
Shell Material:	PC
Shell Protection Grade:	IP40
Brand:	Chana or OEM

Product Description

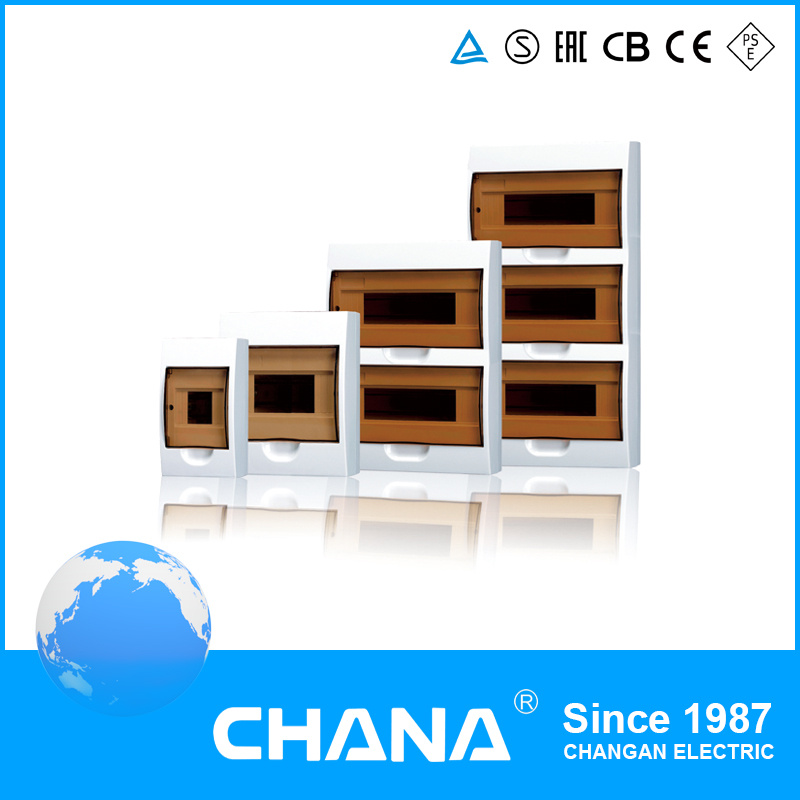

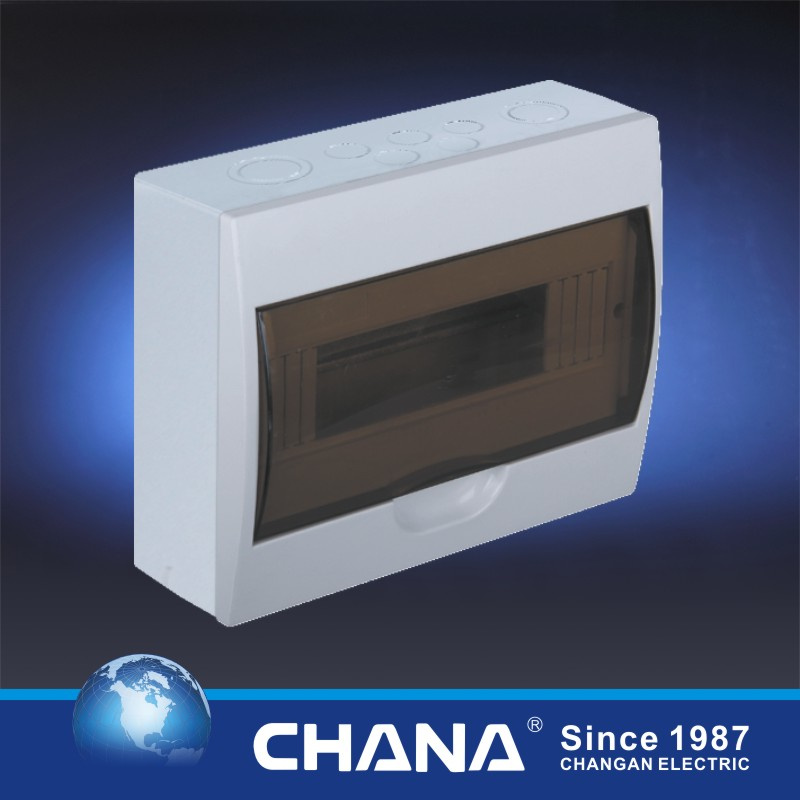

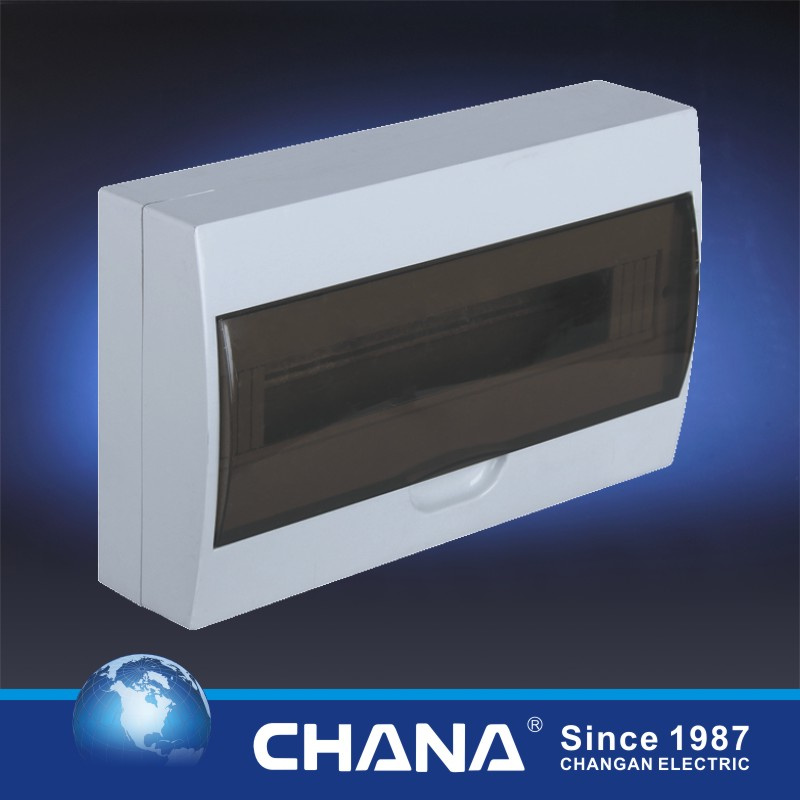

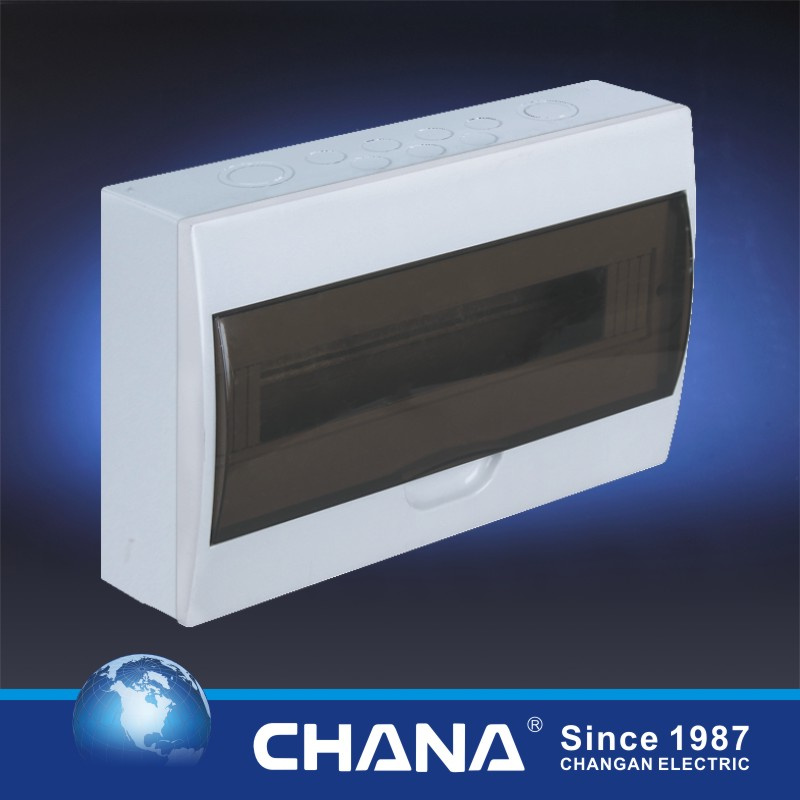

TXM Series Distribution Box

Description
Standard: IEC60439-3
Electric value: up to 100A, 240/415V, AC 50/60Hz
Way No.: 4, 6, 8, 10, 12, 18, 24, 36
Load current (A): 100/1-phase, 63/3-phase
Protection degree: IP40
Shell material: PS, ABS, ABS-UV Fire Resistant
Material of transparent door: ABS, UV Resistant PC
Approval: CE, RoHS

Specification Surface-Mounted

Model	Way No.	Dimension (mm)			PCS/CTN
Model	Way No.	L	W	H	PCS/CTN
TXM-4SP	4	112	200	100	20
TXM-6SP	6	148	200	100	20
TXM-8SP	8	184	200	100	20
TXM-10SP	10	220	200	100	10
TXM-12SP	12	156	200	100	10
TXM-18SP	18	364	222	100	10
TXM-24SP	24	270	325	100	10
TXM-36SP	36	305	473	100	5

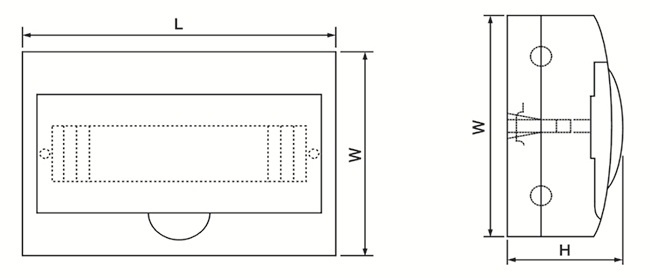

Overall and Installation Dimension

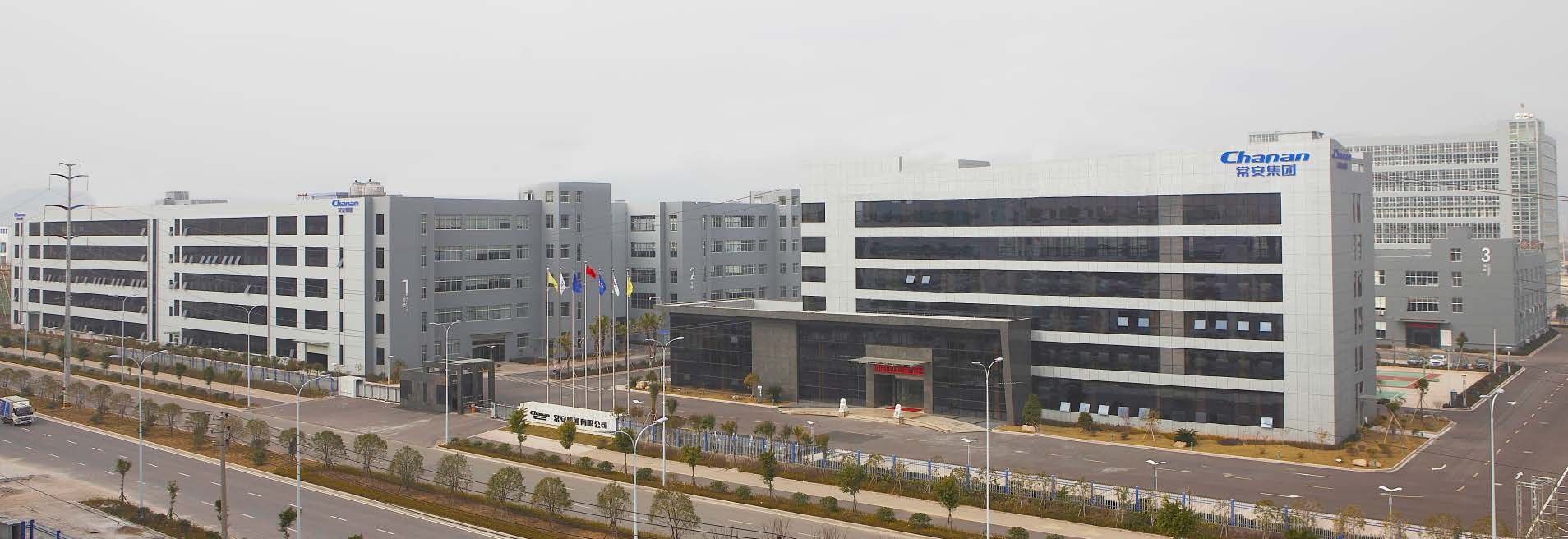

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
