Prod Model: |
MICS-K-6.0-INC600-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Stainless Steel |
Usage: |
for Thermocouple |
Type: |
K Type |
Operating Principle: |
for Thermocouple |
Brand: |
Micc |
Product Description
Quick detail

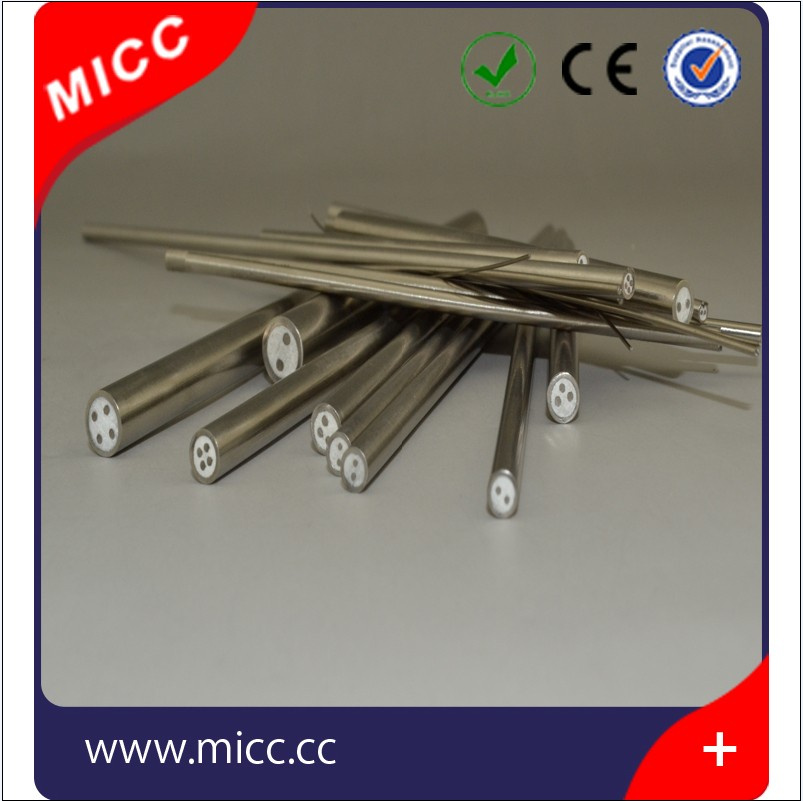

Name: MICC type N Mineral insulated Cable for thermocouple sensor
Type: K, N, E, J, T
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, INCL600, Nicrobell
Dia(mm): from 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Jiangsu, China (Mainland)
Eco-friendly: Yes
MOQ: 100m
Certificate: ISO,CQC
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Advantage: Competitive price and best service
Product Name | Code | Type | Sheath material | Outer dia.(mm) | Temperature |
|
Ni Cr - Ni Si | KK | K | SS304 | 0.5-1.0 | 400 |
|
SS321 | 1.5-3.2 | 600 |
|
SS316 | 4.0-8.0 | 800 |
|
| 0.5-1.0 | 500 |
|
SS310 | 1.5-3.2 | 800 |
|
INCL600 | 4.0-6.4 | 900 |
|
| 8.0-12.7 | 1000 |
|
Ni Cr Si - Ni Si | NK | N | SS304 | 0.5-1.0 | 400 |
|
SS321 | 1.5-3.2 | 600 |
|
SS316 | 4.0-8.0 | 800 |
|
| 0.5-1.0 | 500 |
|
SS310 | 1.5-3.2 | 800 |
|
INCL600 | 4.0-6.4 | 900 |
|
| 8.0-12.7 | 1000 |
|
Ni Cr -Konstantan | EK | E | SS304 | 0.5-1.0 | 400 |
|
SS321 | 1.5-3.2 | 500 |
|
SS316 | 4.0-8.0 | 800 |
|
Fe - Konstantan | JK | J | SS304 | 1.0 | 300 |
|
SS321 | 1.5-3.2 | 500 |
|
SS316 | 4.0-8.0 | 800 |
|
Cu - Konstantan | TK | T | SS304 | 1.0 | -200-100 |
|
SS321 | 1.5-3.2 | 100-200 |
|
SS316 | 4.0-8.0 | 100-350 |
|
Name | Type | Class of Accuracy |
I | II | III |
Tolerance | Temperature | Tolerance | Temperature | Tolerance | Temperature |
Ni Cr - Ni Si | K | 1.5ºC or 0.4%t | -40~1000 | 2.5ºC or 0.75%t | -40~1000 | 2.5ºC or 0.75%t | -200~40 |
Ni Cr Si- Ni Si | N | -40~1000 | -40~1000 | -200~40 |
Ni Cr - Konstantan | E | -40~800 | -40~800 | -200~40 |
Fe - Konatantan | J | -40~750 | -40~750 | --- |
Cu - Konstantan | T | 1.5ºC or 0.4%t | -40~350 | 1ºC or 0.75%t | -40~350 | 1ºC or 0.75%t | -200~40 |
Pt Rh 10 - Pt | S | 1ºC or 1+(t-1100)x0.003 | 0~1600 | 1.5ºC or 0.25%t | 0~1600 | --- | --- |
Pt Rh 13 - Pt | R | 0~1600 | 0~1600 |
Pt Rh 13 - Pt Rh 6 | B | --- | --- | 600~1700 | 4ºC or 1.5%t | 600~1700 |
Wall thickness table
Outer Sheath(mm) | Core Wire Dia.(mm) | Sheath Material | Length(m) |
Out Dia. | Wall Thickness | K,N,E,J,T Types | S,R,B Types | K,N Types | E,J,T Types | S,R Types | B Types |
0.5 | 0.05-0.10 | 0.08-0.12 | --- | SS304, SS321, SS316, SS310, INCL600 | SS304, SS321, SS316 | INCL600, INCL800 | INCL600, INCL800 | 500 |
1.0 | 0.10-0.20 | 0.15-0.20 | --- | 300 |
1.5 | 0.15-0.25 | 0.23-0.30 | --- | 200 |
1.6 | 0.16-0.26 | 0.26-0.36 | --- | 200 |
2.0 | 0.25-0.35 | 0.40-0.50 | 0.25-0.30 | 180 |
3.0 | 0.38-0.48 | 0.50-0.60 | 0.30-0.40 | 80 |
3.2 | 0.48-0.58 | 0.58-0.68 | 0.30-0.40 | 75 |
4.0 | 0.52-0.62 | 0.60-0.70 | 0.35-0.40 | 70 |
4.8 | 0.73-0.83 | 0.75-0.85 | 0.40-0.45 | 40 |
5.0 | 0.78-0.88 | 0.80-0.90 | 0.40-0.45 | 40 |
6.0 | 0.98-1.08 | 0.90-1.10 | 0.45-0.50 | 30 |
6.4 | 1.05-1.15 | 1.02-1.12 | 0.45-0.50 | 30 |
8.0 | 1.30-1.44 | 1.30-1.40 | 0.45-0.50 | 20 |
12.7 | 1.75-1.90 | 1.95-2.05 | --- | 10 |
MICC TECH. LIMITED is a professional export-oriented company which located in Nanjing, one of largest commercial city in China. We mainly produce thermocouple wire, thermocouple connector, thermocouple head, MI cable, FeCrAl wire, NiCr wire, CuNi wire, pure nickel wire and thermocouple bare wire. Our company has been engaged in these fields for more than 5 years and has a sound reputation and credits among the foreign customers with our great variety of first-rate quality products and good services. Our selling net-work has expanded to Europe, South America, Middle East etc. OEM order is welcomed and well done!
According to international standard, we introduce new techniques and new processes, so we can keep improving product quality. There are strict processes and quality manages to make sure the products keep updated, and be well received by users.
We warmly welcome all client friends to visit us and talk about business. We have established excellent business relationships with lots of our old partners based on equality, mutual benefit, customer first & service foremost, contract respecting. We look forward to your business negotiation and will sincerely be your best trade partner.
