Type K PVC Insulated Compensation Wire Cable, Thermocouple Wire

Name: Type K PVC Insulated Compensation Wire Cable, Thermocouple Wire
Brand: all-electronics-online.com
SKU: 770712315
Availability: InStock
Rating: 4.6 (86 reviews)

Price:	US $ 0.1-1.6/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	extension Wire
Markets:	North America,South America,Southeast Asia,Mid East,Western Europe
Size:	From 0.035mm2, 0.05mm2....to 6.0mm2
Color:	Red, Blue, Green, Balck, Yellow, Orange, ......
Produceing Experience:	15 Years
OEM:	Yes
Type:	Insulated
Conductor Type:	Stranded
Application:	High Temperaturue , Flame Resist,Heating Element
Insulation Material:	Teflon
Certification:	UL
Conductor Material:	Copper, Cu-Ni
Sheath Material:	FEP
Range Of Application:	Thermocoupl,Temperature Controller,Heating Element
Brand:	Verde XLPE

Product Description

K (KC)Type FEP Insulation Flexible Extension cable Thermocouple Wire

1.Description:

1).conductor : Cu, Cu-Ni

2).Insulation: FEP

3) Jacket: FEP
4). Temperature range: 0-200ºC

5). Color:KC typePositive:Cu(red ) Negative: Cu-Ni (Blue)

6).Packing:100/200/310/500m per Roll

7).certification:ISO9001/CCC

2.Application:

Thermocouple Wire that is used in a thermocouple from the point of sensing to the point of cold junction compensation (cjc end) where the signal is measured. A thermocouple is a sensor for measuring temperature, that consists of two dissimilar metals that are joined together at the sensing end. Different thermocouple types (e. G. J, K, T, E, etc) use different mixtures of metals in the wire. At the cjc end, the millivolt value provided by the thermocouple represents the difference in temperature of the sensing end as compared to the cjc end (also called the reference end).

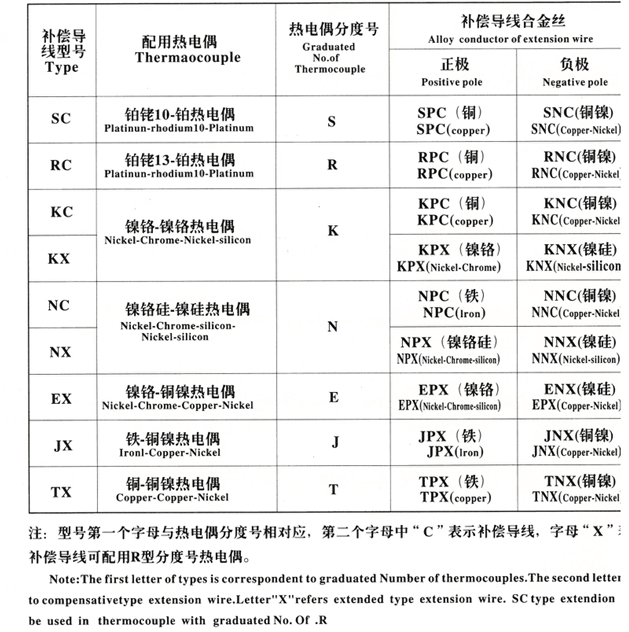

3.Main Technical Type list

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:

Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.

Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.

We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.

New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.

We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.

Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.

Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
