Type N Thermocouple Wire Bright Surface

Name: Type N Thermocouple Wire Bright Surface
Brand: all-electronics-online.com
SKU: 806297815
Availability: InStock
Rating: 4.7 (75 reviews)

Price:	US $ 20-35KG
Min Order:	100KG
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	N-HP-1213
Type:	Insulated
Conductor Type:	Solid
Certification:	ANSI
Application:	Thermocouple Wires
Conductor Material:	Nicrsi , Nisimg
Range Of Application:	Machinery,Thermocouple,Electricity
Brand:	Ohmalloy

Product Description

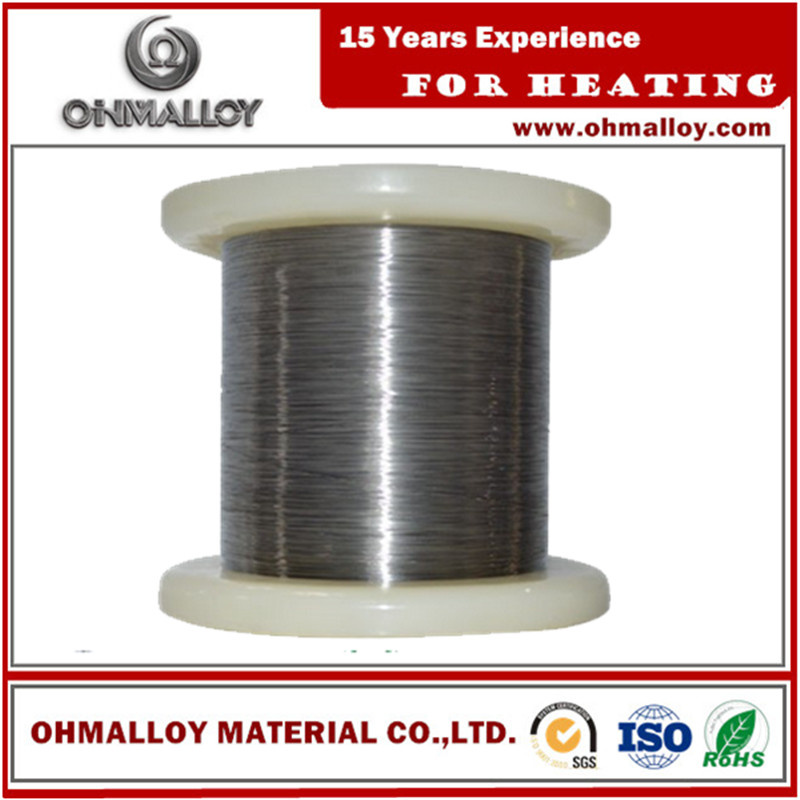

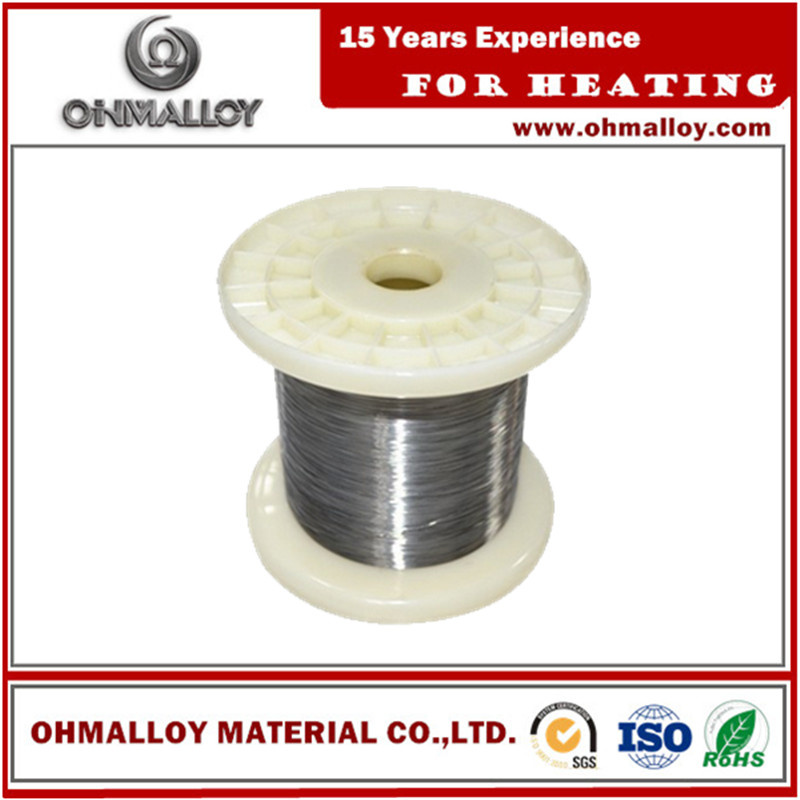

Type N Thermocouple Wire Bright surface

NiCrSi , NiSiMg Type N Thermocouple Wire Oxidized Style Hot Electrodes

Type: K, E, J, T, N, etc
Style: bright or oxidized
Application: forming two hot electrodes of thermocouple or compensating cable
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Thermocouple wire
Product Size: 0.05mm to 10.0mm
Delivery time: 7-20days which is according to quantity
Eco-friendly: Yes
MOQ: 1kgs
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Certificate: ISO,CQC ROHS
Making sample time: all type in stock
Advantage: high quality with high measuring accuracy, fast thermal response, high mechanical strength, long service lifetime, wide temp measuring range of -200-1300centigrade

Classification for thermocouple TYPE N ROD

Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

Thermocouple variety and index for thermocouple TYPE N ROD

Thermocouple Variety and Index
Variety	Type	Measurement Range(°C)
NiCr-NiSi	K	-200-1300
NiCr-CuNi	E	-200-900
Fe-CuNi	J	-40-750
Cu-CuNi	T	-200-350
NiCrSi-NiSi	N	-200-1300
NiCr-AuFe0.07	NiCr-AuFe0.07	-270-0

Thermocouple type and grade for thermocouple TYPE K ROD

Thermocouple Type	Grade	Temperature Range(°C)	Allowable Deviation
type K and type N	I	-40-1100	±1.5°C or±0.4%t
	II	-40-1300	±2.5°C or ±0.75%t
	III	-200-40	±2.5°C or ±1.5%t
type E	I	-40-1100	±1.5°C or ±0.4%t
	II	-40-1300	±2.5°C or ±0.75%t
	III	-200-40	±2.5°C or±1.5%t
type J	I	-40-750	±1.5°C or ±0.4%t
type J	II	-40-750	±2.5°C or ±0.75%t
type T	I	-40-350	±0.5°C or± 0.4%t
	II	-40-350	±1.0°C or± 0.75%t
	III	-200-40	±1.0°C or± 1.5%t
NiCr-AuFe0.07	I	-270-0	±0.5°C
NiCr-AuFe0.07	II	-270-0	±1.0°C

Specification of alloy wires for thermocouple TYPE K ROD

Anode		Cathode		Diameter(mm)	Maximum Temperature(°C)
name	code	name	code	Diameter(mm)	long-time using	short-time using
NiCr10(Chromel)	KP	NiSi3(Alumel)	KN	Φ0.3	700	800
				Φ0.5	800	900
				Φ0.8 Φ1.0	900	1000
				Φ1.2 Φ1.6	1000	1100
				Φ2.0 Φ2.5	1100	1200
NiCr14.2Si	NP	NiSi4	NN	Φ3.2	1200	1300
NiCr10(Chromel)	EP	CuNi45(Copel)	EN	Φ0.3 Φ0.5	350	450
				Φ0.8 Φ1.0 Φ1.2	450	550
				Φ1.6 Φ2.0	550	650
				Φ2.5	650	750
				Φ3.2	750	900
Fe(Iron)	JP	CuNi45(Copel)	JN	Φ0.3 Φ0.5	300	400
				Φ0.8 Φ1.0 Φ1.2	400	500
				Φ1.6 Φ2.0	500	600
				Φ2.5 Φ3.2	600	750
Cu(Copper)	TP	CuNi45(Copel)	TN	Φ0.2 Φ0.3	150	200
				Φ0.5 Φ0.8	200	250
				Φ1.0 Φ1.2	250	300
				Φ1.6 Φ2.0	300	350

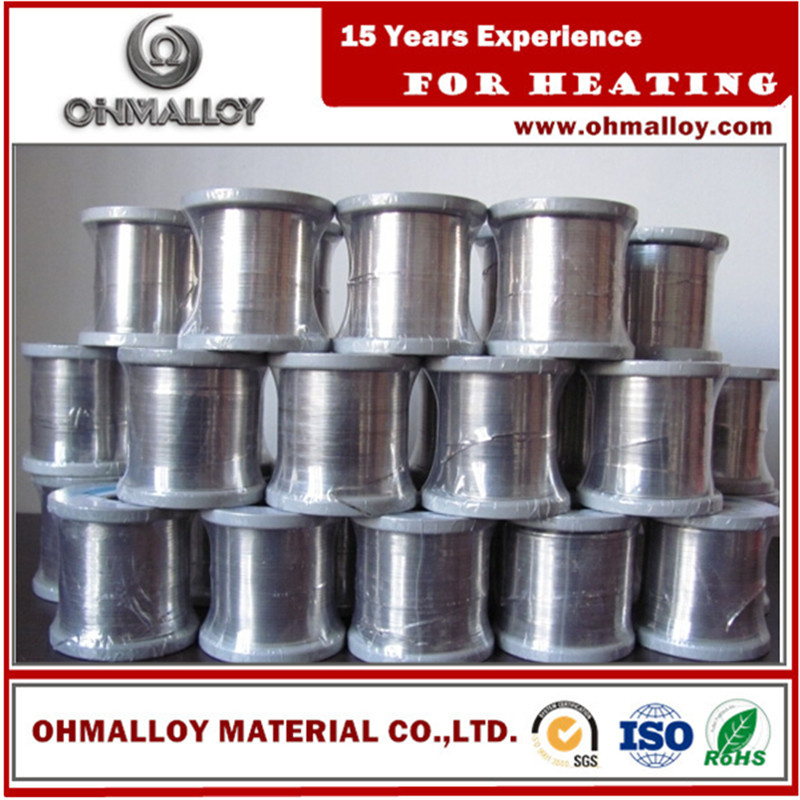

Products&Package:

PP
Payments&Shippment:

Ohmalloy Material Co., Ltd is a high-tech enterprise which specialized in making all kinds of alloy such as high resistance alloy, low-resistance copper nickel alloy, precision alloy, FeCrAl alloy and thermocouple Alloy.

Ohmalloy Material Co., Ltd have a full production line from melting, surface cleaning, rolling and slitting, full set of testing machine and can meet all kinds of technical requirement from customer. Our product is widely used in heating equipment, big steel mill, mineral, electrical equipment, food machinery, auto industry, aerospace industry. Our product not only is popular in domestic market, but also been exported to all over the world.

Our company aims to be the best-quality alloy producer in the world. We insist on developing the more advanced alloy strip technology, to serve all the customer, improve people's living level, make a more green earth in the future.

Our company supplies different kinds of products. With high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
