Type Thw PVC Insulated Wire
| Price: |
US $ 0.1-1/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
THW |
| Voltage Rating: |
600V |
| Standards: |
UL |
| Delivery Length: |
Accord with The Request |
| Capacity: |
50000 Coils/Week |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Insulation Material: |
PVC |
| Certification: |
SABS |
| Application: |
House Use |
| Conductor Material: |
Tinned Copper and Extra-Flexible Conductors |
| Brand: |
Henan Jiapu |
Product Description

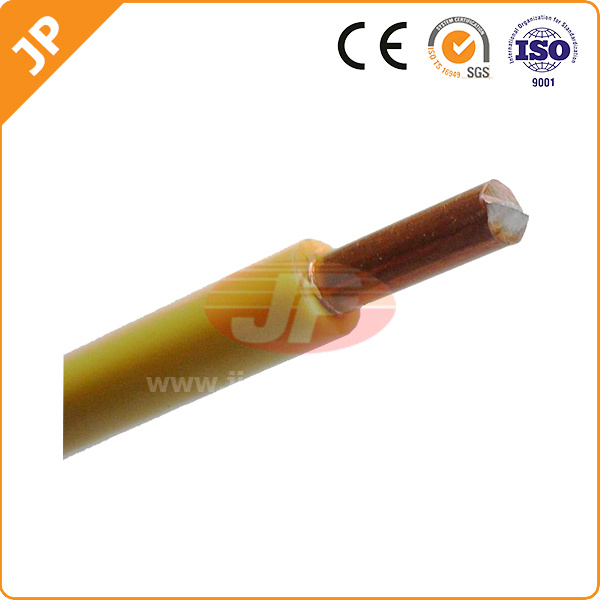

Type THW PVC Insulated Wire
Application
Type THW PVC Insulated Wire can be used for many different commercial and industrial applications. These cables may be installed in wet or dry locations, indoors or outdoors, in raceways, underground ducts, aerial or direct buried.
Property
The wire may be operated at 75° C maximum continuous conductor temperature in wet or dry locations and is listed by underwriters laboratories for use in accordance with article 310 of the National Electrical Code.
Standards
1. Listed by UL as Type THW per Standard 83.
2. All sizes carry the VW-1 flame test designation.
3. Listed by UL as Oil Resistant I.
4. Listed by UL as Sunlight Resistant (250 kcmil and larger, black only)
5. 250 kcmil and larger pass UL and IEEE-383 ribbon burner flame test
and are listed For CT Use.
6. Conforms to Federal Specification J-C-30B.
Construction:
Annealed uncoated copper conductor, PVC insulation, surface printed.
| Conductor | Class B, soft drawn, bare copper per ASTM B3 and ASTM B8. Both tinned copperconductors and extra-flexible conductors are available as options. |
| Insulation | Heat and moisture resistant polyvinyl chloride (PVC) meeting the requirements of ICEA S-95-658 (NEMA WC 90) UL 83 for Type THW and wires. The insulation is suitable for use in wet or dry locations at a conductor temperature not exceeding 75° C for normal operation. |
| Assembly | Single conductor cables can be paralleled or multiplexed for more efficient installations. Single conductor cables can also be pre-installed in conduit. |
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.
The main products are as follows:
Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Fiber Optic Cable (OPGW, ADSS, etc. )
Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.
We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
